| General Information |
| Manufacturer Name: |
EcoFlow |
| Dimensions: |

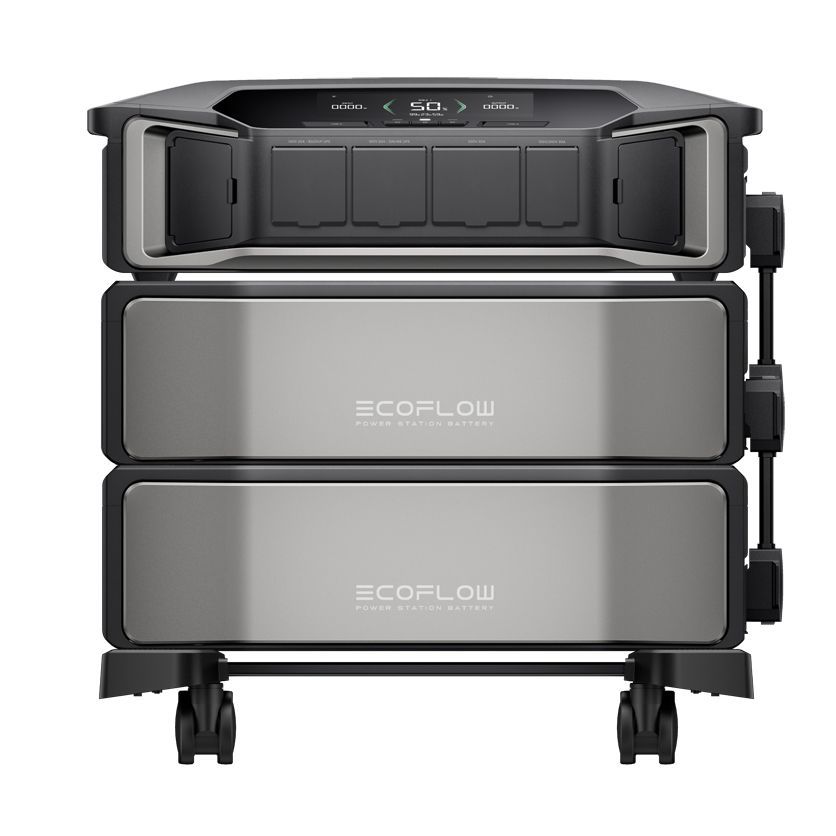

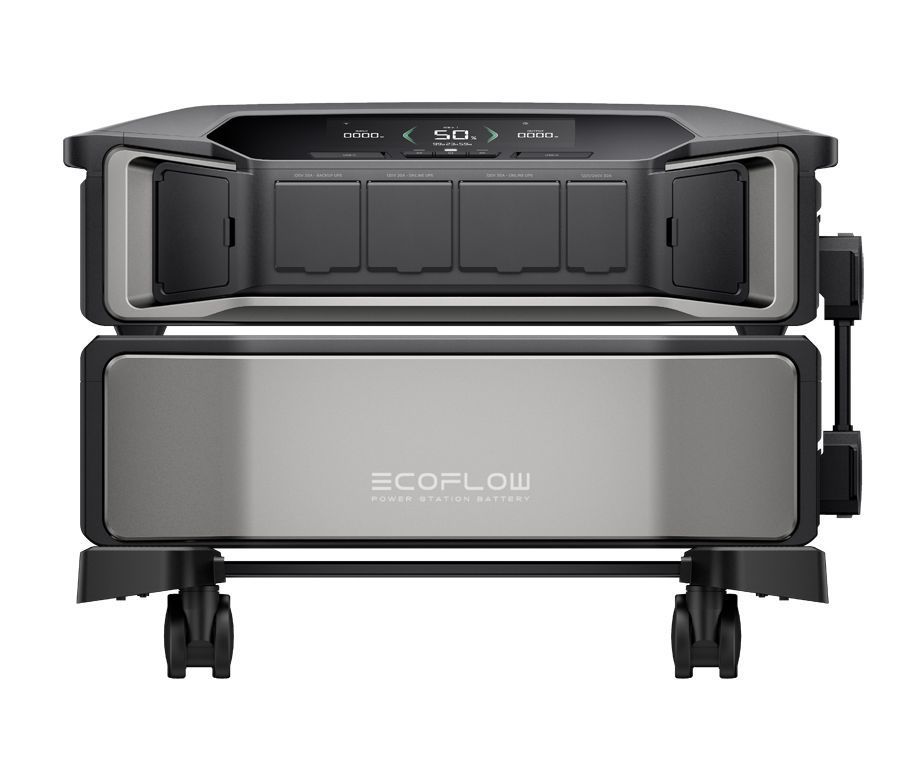

Hybrid Inverter: 27.2" x 18.7" x 8.42" in Battery: 26" x 18" x 8" in |
| Weight: |
Hybrid Inverter: 70 lbs Battery: 116.4 lbs |
| Temperature Requirements: |
-4F - 113F |
| Battery Capacity: |
6144 Wh, 102.4V |
| Connection: |
Wi-Fi, Bluetooth, 4G, Screen |
| Warranty: |
5 Years |
| Standby Power Consumption: |
Less than 12W |
| Max Operating Altitude: |
9842.5 Ft |
| Protection Level: |
IP54 |
| Noise: |
Less than 30 dB |
| Inverter Specifications (Bidirectional Inverter Discharging) |
| AC Output: |
6*AC Outlets - 120V/240V, 7200W Total |
| UPS Backup: |
UPS Port (L1 Phase greater than 20ms); online UPS Port (L2 Phase 0ms) |
| No Load Consumption: |
Greater than 45W |
| Efficiency of AC Output of 100W: |
70% |
| Discharging Efficiency at Full Load: |
94% |
| Inverter Specifications (Bidirectional Inverter Charging) |
| Charging Voltage: |
C20 Input: Support 100V-120V / 220V-240V; Power Input/Output Port: Support 100V-120V /220V-240V The two ports of C20 and Power input/output are mutually exclusive. Please do not charge both at the same time. |
| AC Input Power Adjustment: |
Supported, and is adjustable in all charging modes |
| AC Charging Method: |
AC Input, Power Input/Output Port (AC Charging Pile/Generator/SHP2) |
| AC Charging Input: |
AC Charging Pile Supported: 120V/240V, 30A, 3600W/7200W Max |
| AC Charging |
| C20 Charging: |
Supported: 120V, 15A, 1800W Max; 240V, 12.5A, 3000W Max |
| Protection: |
Protection from Lightning and Surges |
| DC Output |
| USB-A *2: |
5V, 2.4A, 12W |
| USB-C *2: |
5V, 9V, 12V, 15V, 20V, 5A, 100W Max |
| Anderson Port: |
12.6V, 30A, 378W Max |
| MPPT |
| High Voltage PV: |
80-450V, 15A, 4000W Max |
| Low Voltage PV: |
30-150V, 15A, 1600W Max |
| Power input/output High Voltage Port |
| Parallel Connection: |
Supported |
| Grid-tie: |
Not supported |
| Smart Home Panel 2: |
Supported |
| Car Charing input: |
Not supported |
| Pro Ultra Battery Specifications |
| Battery Capacity: |
6144Wh, 102.4V, 32S3P |
| Battery Chemistry: |
LFP |
| Cell Specs: |
20Ah, 3.2V |
| Cell Efficiency: |
AC full loading less than or equal to 95% |
| Operating Temperature: |
Charging Temperature: -4F-113F (Turn on self-heating below 32F, no derating below 104F) Discharging Temperature: -4F-113F |
| Battery Heating: |
Yes (automatically start below -4F) |
| Cycle Life: |
3500 cycles to 80%+ capacity |
| Battery Balance: |
Automatic control of the charging/discharging limit of each battery pack |
| Protection: |
Over Temperature Low Temperature Over Voltage Low Voltage Overload Short Circuit Overcurrent |

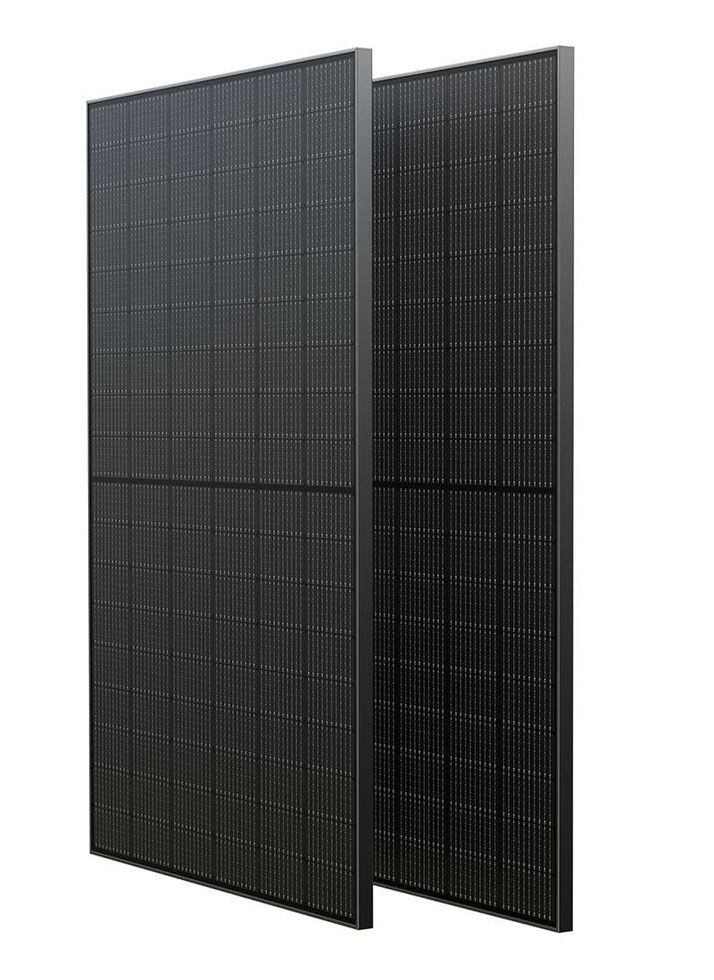

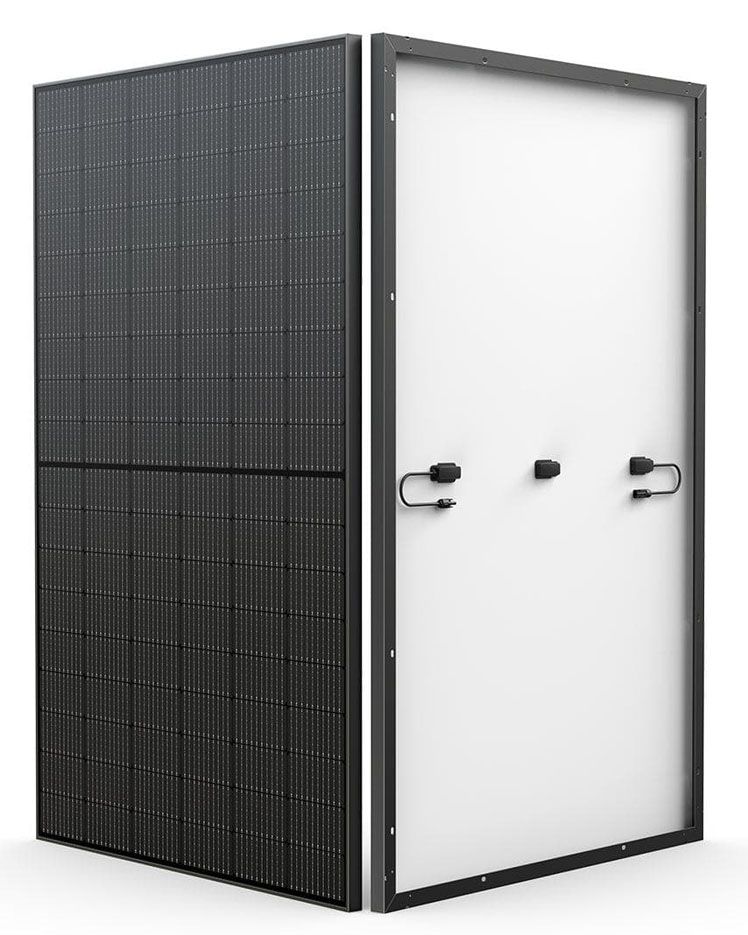

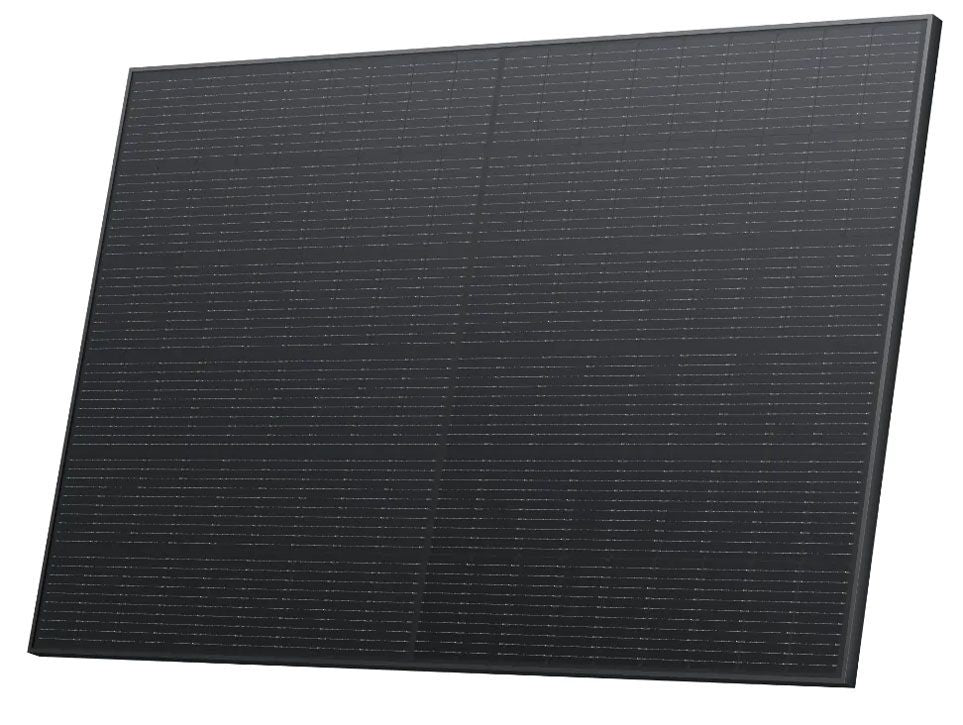

| 400W Rigid Solar Panel |
| Manufacturer Name: |
EcoFlow |
| Chainable: |
Yes |
| Dimensions: |
67.8" x 44.6" x 1.38" inches |
| Weight: |
48.1 lbs |
| Rated Power: |
400W |
| Efficiency: |
23% |
| Maximum Operating Current: |
12.90A |
| Open Circuit Voltage: |
37.10 V |
| Short Circuit Voltage: |
13.79A |
| Cell Type: |
Monocrystalline |
| Maximum Fuse Current: |
25 A |
| Maximum Operating Voltage: |
31.00V |
| Maximum System Voltage: |
1500 VDC (UL) |
| Temperature Coefficient of Rated Power: |
-0.38%/C |
| Temperature Coefficient of Open Circuit Voltage: |
-0.35%/C |
| Temperature Coefficient of Short Circuit Current: |
0.06%/C |
| Warranty: |
12 Month Warranty |
