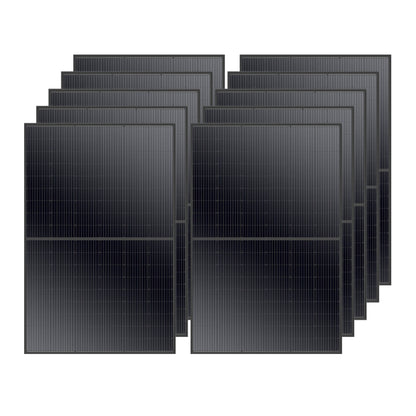

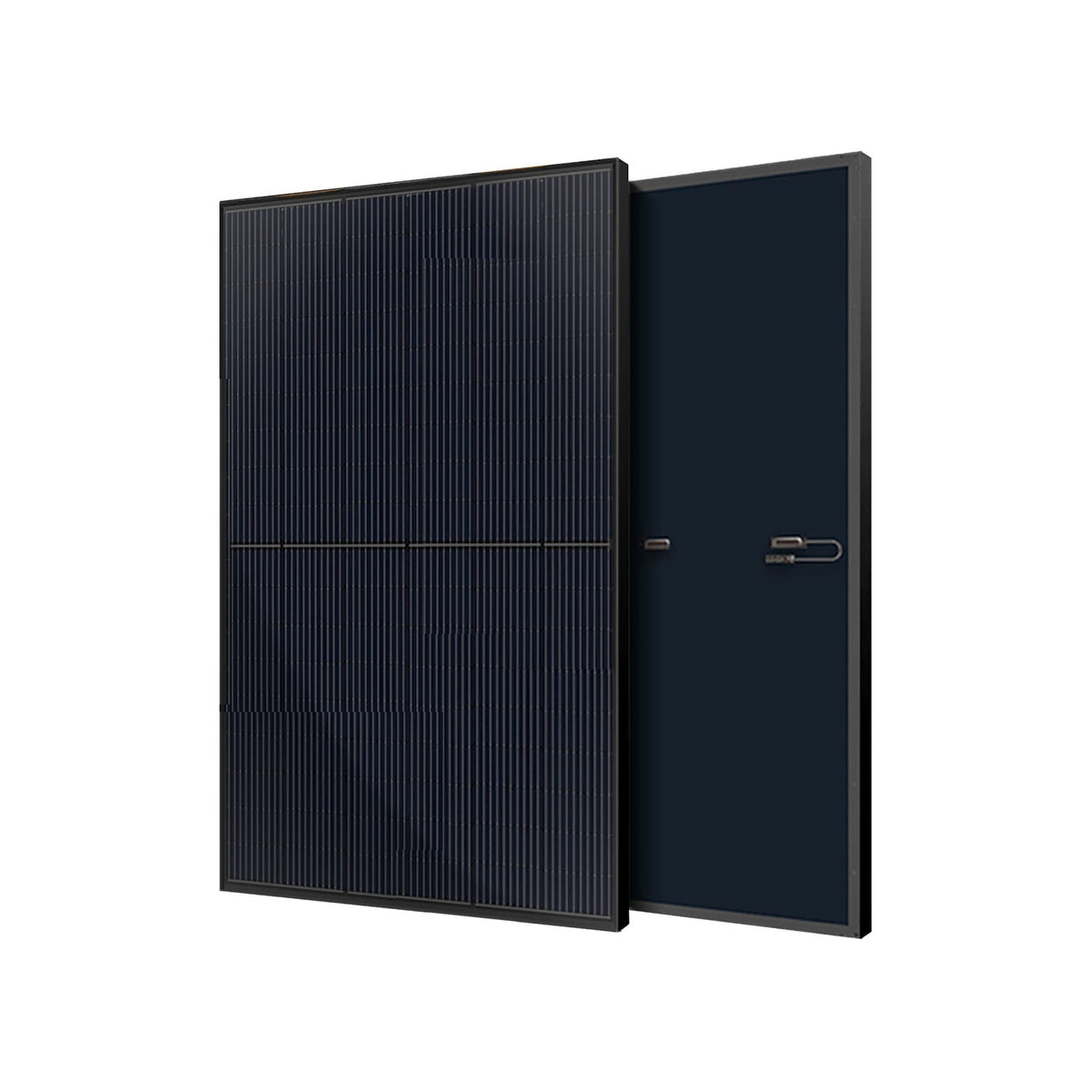

MEGA 400 | 400 Watt Solar Panel | Premium Grid-tie or Off-grid Solar Panel for Residential, Commercial, Agriculture

Power up your home backup system with the Rich Solar MEGA 400, a high-efficiency 400-watt monocrystalline solar panel designed for maximum performance and durability. Whether you're building a robust solar setup for your RV, cabin, or residential needs, the MEGA 400 delivers exceptional power output and reliability in a sleek, compact frame.

Unmatched Efficiency with Half-Cut Cell Technology

The MEGA 400 features advanced half-cut cell technology, which not only boosts efficiency but also improves shade tolerance and minimizes power loss. With 108 monocrystalline half-cut cells, this panel captures more sunlight and converts it into power more efficiently than traditional designs.

Built for Strength and Longevity

Durability is at the core of the MEGA 400. Its rugged anodized aluminum frame and high-transparency tempered glass provide exceptional protection from the elements. Rated for 2400 Pa wind loads and 5400 Pa snow loads, this panel is designed to perform reliably in extreme weather conditions, ensuring long-term performance wherever you deploy it.

Lightweight Design with Easy Installation

Despite its robust build, the MEGA 400 weighs just 43.9 lbs, making it easy to handle and install. Pre-drilled holes in the frame allow for flexible mounting options, and the included MC4 connectors support a quick, secure connection to your existing system. Whether you’re upgrading or starting fresh, installation is simple and straightforward.

Maximum Output, Minimal Footprint

With an impressive 20.97% module efficiency and a compact footprint (67.8" x 44.6"), the MEGA 400 packs serious power without taking up too much space. It’s ideal for installations where space is limited but power demand is high—like RVs, tiny homes, and residential rooftops.

Technical Specifications

Electrical Characteristics

Nominal Power Watt Pmax(W): 400W
Maximum Power Voltage Vmp(V): 30.9V
Maximum Power Current Imp(A): 12.9A
Open Circuit Voltage Voc(V): 37.1V
Short Circuit Current lsc(A): 13.7A
Module Efficiency (°A): 20.97%

Temperature Ratings

NMOT: 44°C +- 2°C
Temperature Coefficient Of Pmax: -0.35%/°C
Temperature Coefficient Of Voc: -0.29%/°C
Temperature Coefficient Of Isc: 0.05%/°C
Maximum System Voltage: 1500V DC
Operating Temperature: -40°C / +85°C
Maximum Series Fuse: 25A
Front Side Maximum Static Loading: Up to 5400 Pa
Rear Side Maximum Static Loading: Up to 2400 Pa

Mechanical Data

Solar Cells: Mono PERC
Cells Orientation: 108 (6x18)
ModuIe Dimension: 1724x1134x30mm (with frame)
Weight: 20.5+-1.0kg
Glass: 3.2mm, High Transmission, AR Coated Tempered Glass
Junction Box: IP 68, 3 diodes
Cables: 4 mm2, 350 mm (with connectors)
Connectors: MC4-compatible

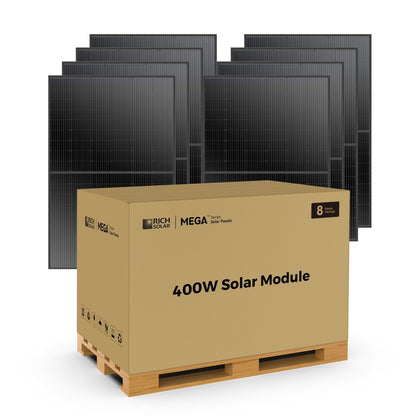

What’s in the Box

• 1 x Rich Solar MEGA 400W Monocrystalline Solar Panel

• MC4-compatible connectors

• Pre-drilled aluminum frame

• Product documentation and warranty information
