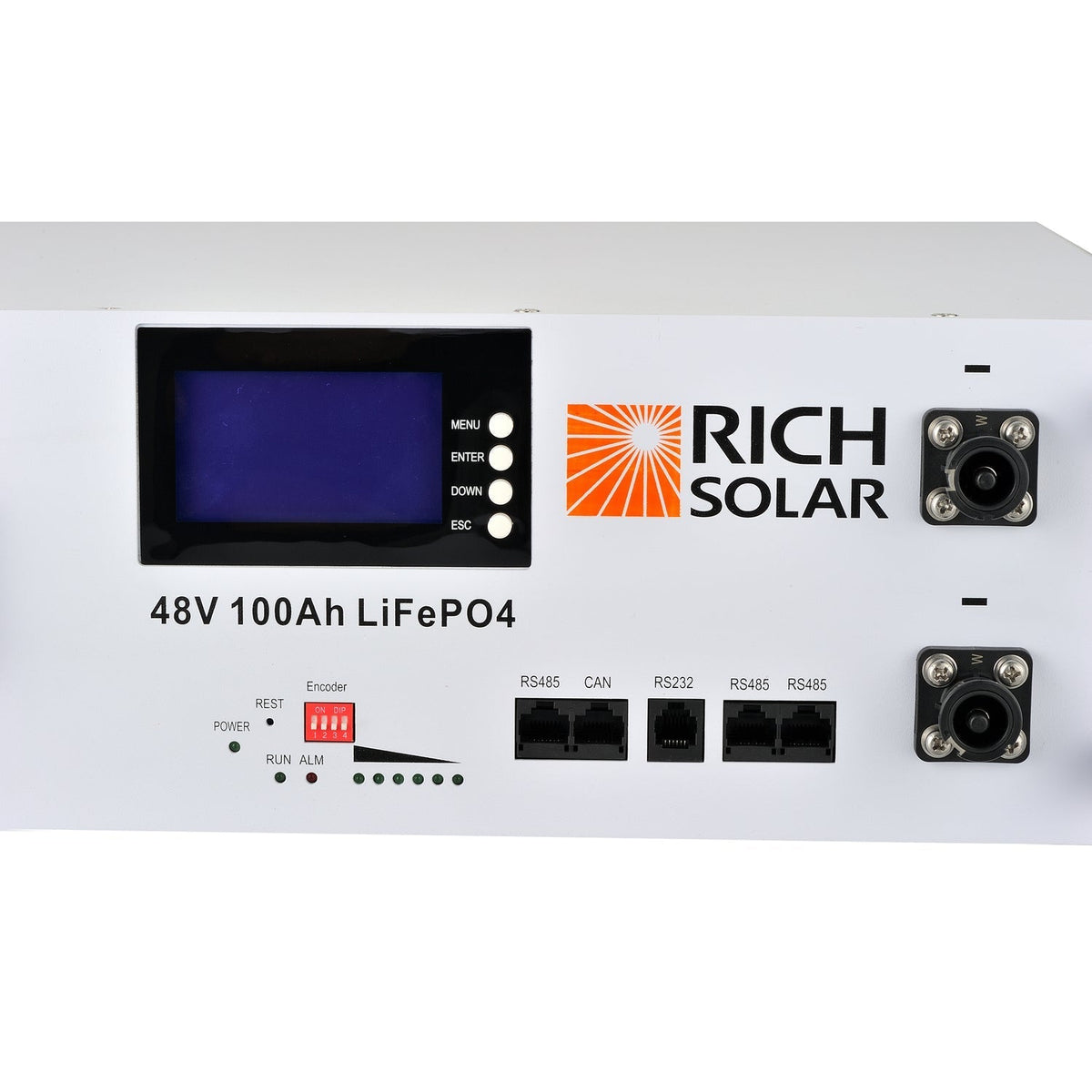

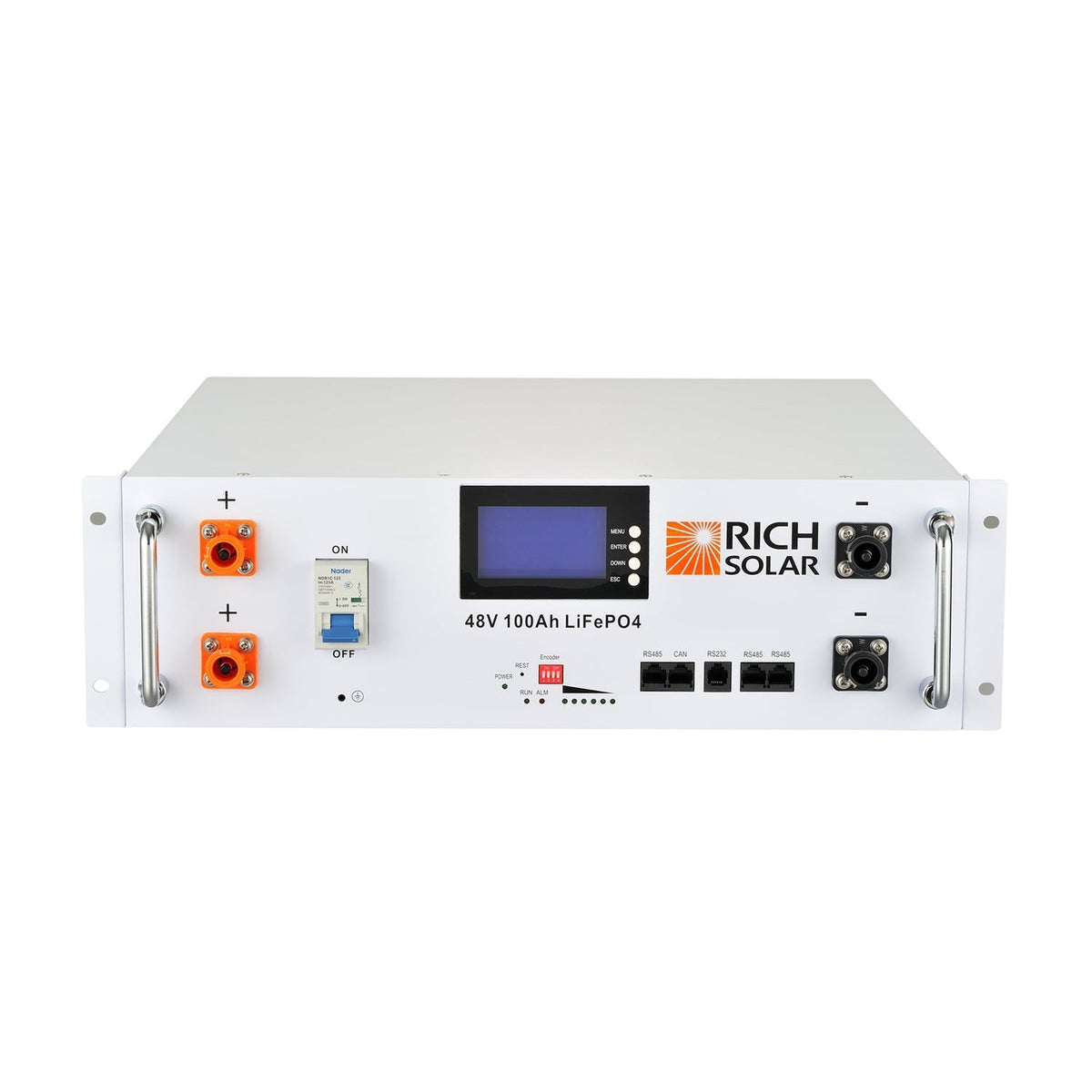

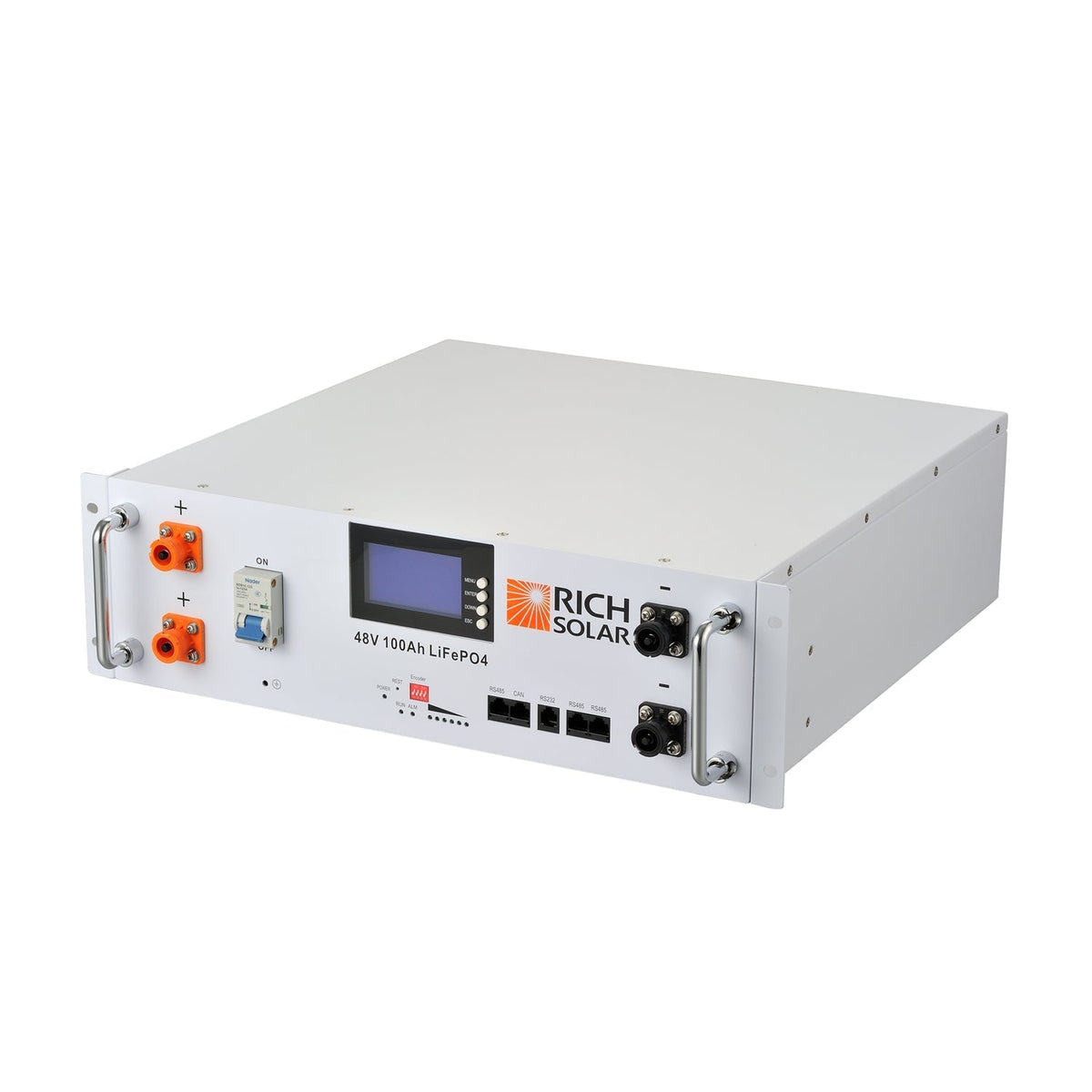

Rich Solar ALPHA 5 | 48V 100Ah LiFePO4 Battery
Rich Solar ALPHA 5 | 48V 100Ah LiFePO4 Battery
Couldn't load pickup availability
Rich Solar ALPHA 5 | 48V 100Ah LiFePO4 Battery
Rich Solar ALPHA 5 | 48V 100Ah LiFePO4 Battery
ALPHA 5 is a 48V 100Ah LiFePO4 battery from Rich Solar, a lithium battery with premium 48V server rack with 7000 lifetime cycles is tailor-made for residential, commercial and off-grid living.
A perfect backup power for your entire home, ALPHA 5 boasts of 20 year lifespan with minimal maintenance and delivers extremely high number of charge/discharge cycles. Supplying you with the greenest energy without any metal contaminant, ALPHA 5 has a wide operating temperature range to work efficiently in all weather conditions.
Built in with a smart battery management system (BMS), each cell is fused and if for some reason one cell fails, this smart BMS will isolate the damaged cell curbing it and lets the battery continue to function safety.
Apart from keeping your battery protected against overcharging, undercharging, over current, short circuit, high and low temperature fluctuations, this sophisticated BMS ensures any physical damage to the battery or excessive thermal exposure will not cause fire.
Highlights:
- Better thermal chemical stability
- Sophisticated Battery Management System
- Longer cycle life capacity
- Wide operating temperature range
- Unsurpassed high temperature performance

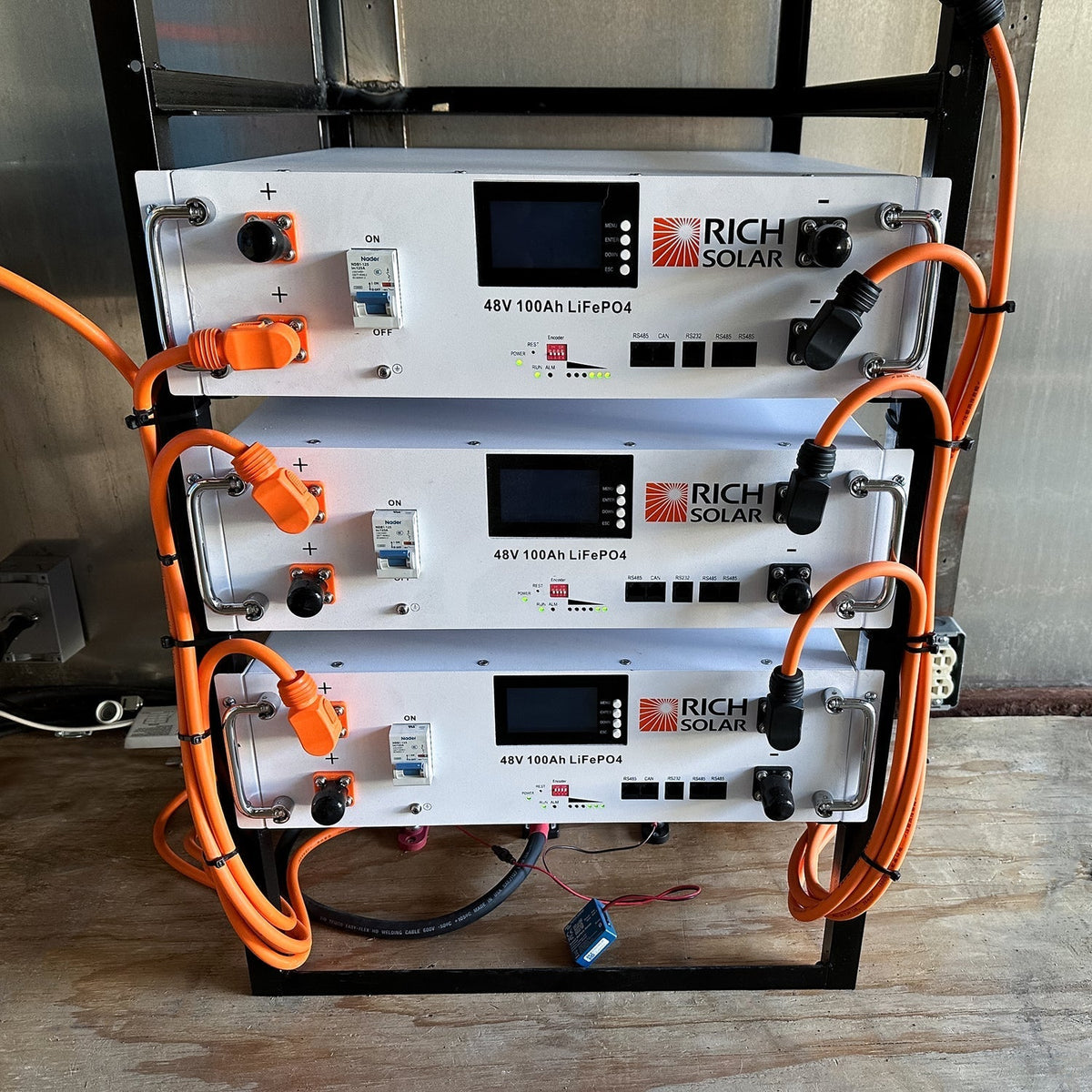

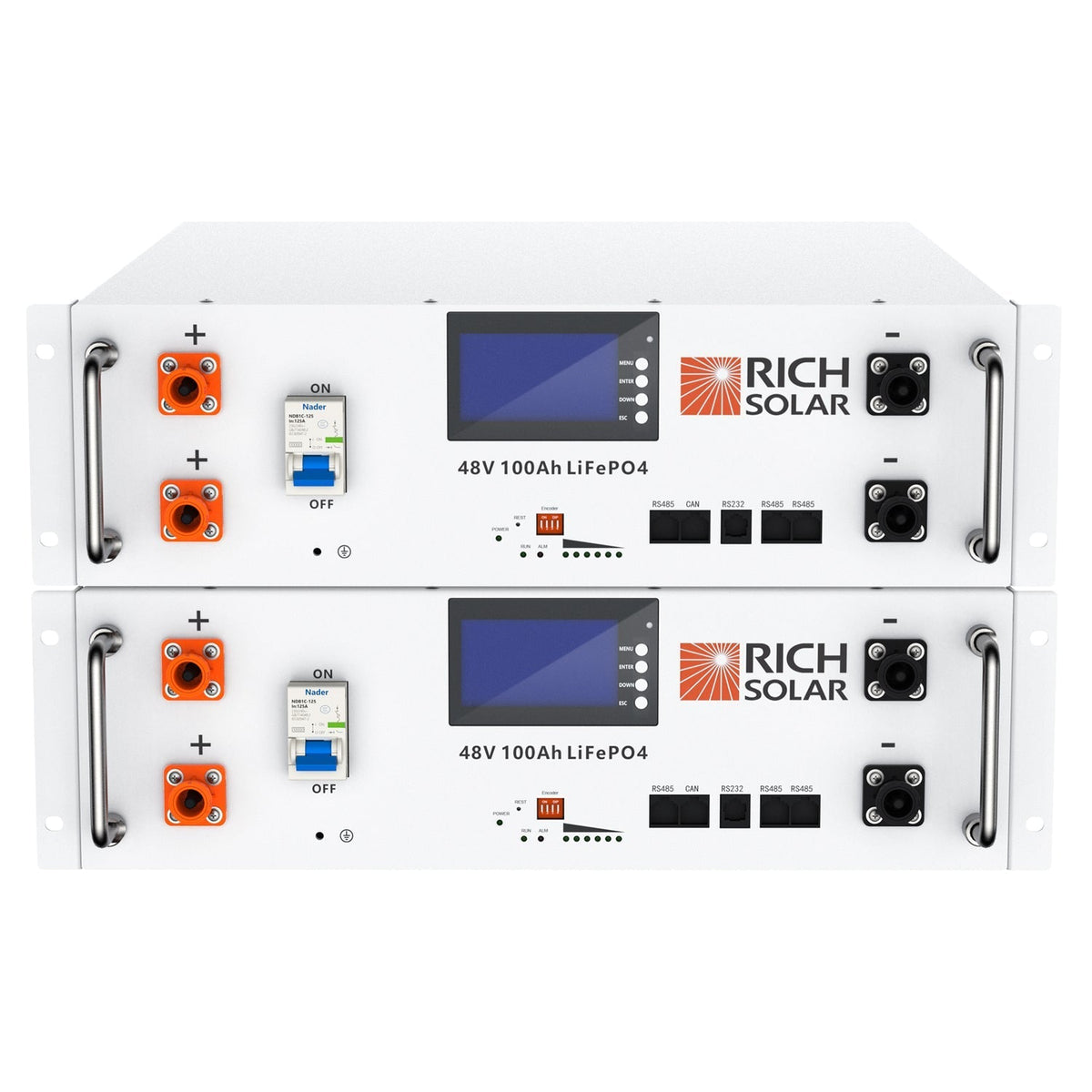

- Connects in parallel for larger capacity
- Convenient removable carry handle
Specifications:
Electrical Specifications
Nominal Voltage: 48V
Nominal Capacity (at 0.5C, 77°F): 100Ah
Minimum Capacity (at 0.5C, 77°F): 99.5Ah
Expected Cycle Life: >7000 cycles w/1C charge and discharge rate, at 77°F, 80% DoD
Operating Specifications
Charge Method: Smart charger, constant current, constant voltage
Operating Voltage: 48V
Capacity: 100Ah
Energy: 4800 Watt Hours
Charge Voltage Range: 52.0 – 52.5V
Continuous Charge Current: 100A
Continuous Discharge Current: 100A
Overvoltage Shutdown: 52.5 +/- 0.2V
Discharge Cut-off Voltage: 42V +/- 0.5V
Self Discharge (stored at 50% SOC): <3%/month
Waterproof: IP65
Temperature Performance
Charge Temperature: 32° F to 113° F
Discharge Temperature: -4° F to 122° F
Storage Temperature: -4° F to 122° F
BMS High Temperature Cut-off: 149°F
BMS Low Temperature Cut-off: 32°F
Physical Specifications
Battery Dimensions(L*W*H): 19x 17.7x 5.2 in
Weight: 92.6 lb
Battery Server Rack Specifications
Battery Server Rack Dimensions(L*W*H): 27.6 x 27.6 x 44 in
Weight: 196 lb
Thickness: Frame 1.5mm, top/bottom plate 1.2mm, column 2.0mm, mesh door plate 1.2mm, side plate (screw fixed) 1.0mm, L-shaped bracket 2.0mm;
Material: High-quality cold-rolled steel plate
Protection level: IP20
BMS Operation
Over Charge Protection
Over charge detection voltage: 3.9 +/- 0.05V
Over charge detection delay time: 0.96 – 1.4s
Over charge release voltage: 3.80 +/- 0.05V
Maximum charge voltage: 3.65 +/- 0.05V
Over Discharge Protection
Over discharge detection voltage: 2.0V +/- 0.05V
Over discharge detection delay time: 115-173ms
Over discharge release voltage: 2.3V +/- 0.10V
Over current protection over current detection delay time: 9 +/- 2ms
Over current release condition: Cut load
Polarity Reverse Protection: Yes
Short Circuit Protection: Yes
Communication Ports: RS485/CAN
Warranty: 10-Year Manufacturer Defect
