Renogy RNG-BATT-LFP-12-50 - Lithium-Iron Phosphate Battery 12 Volt 50Ah

Renogy RNG-BATT-LFP-12-50 - Lithium-Iron Phosphate Battery 12 Volt 50Ah

Power up your adventure with the Renogy RNG-BATT-LFP-12-50 Lithium-Iron Phosphate Battery, the ultimate power source for all your off-grid energy needs.

With a 12-volt capacity and 50Ah output, this battery is designed for maximum efficiency and longevity. Featuring cutting-edge lithium-iron phosphate technology, this battery is not only lightweight and compact but also incredibly powerful and reliable. It offers a superior cycle life with 2000 cycles at 80% DOD. The intelligent built-in BMS circuit ensures a safe charging and discharging process by protecting the battery from over-charge, over-discharge, over-current, high temperature, and short-circuiting.

The RNG-BATT-LFP-12-50 battery has a longer shelf life with a longer shelf life with a low 3% self-discharge rate per month (at 77℉/25℃). Expand your power supply capacity by using 8 identical batteries to connect in parallel.  Please note that a series connection is not allowed. Extremely robust, this battery provides a continuous 50Ah discharge current and 640Wh max power to charge most home appliances. It is tolerant to extreme temperatures, offering stable discharge performance between -4℉ ~ 140℉ (-20℃ ~ 60℃).

This battery is completely compatible with Renogy's Battery Monitor. With the huge display screen of this external gadget, you can see your LiFePO4 battery's charging state in real-time.

Whether you're powering your off-grid cabin, RV, boat, or solar energy system, the Renogy Lithium-Iron Phosphate Battery is the best to deliver consistent power for years to come!

Highlights:
•    Lightweight

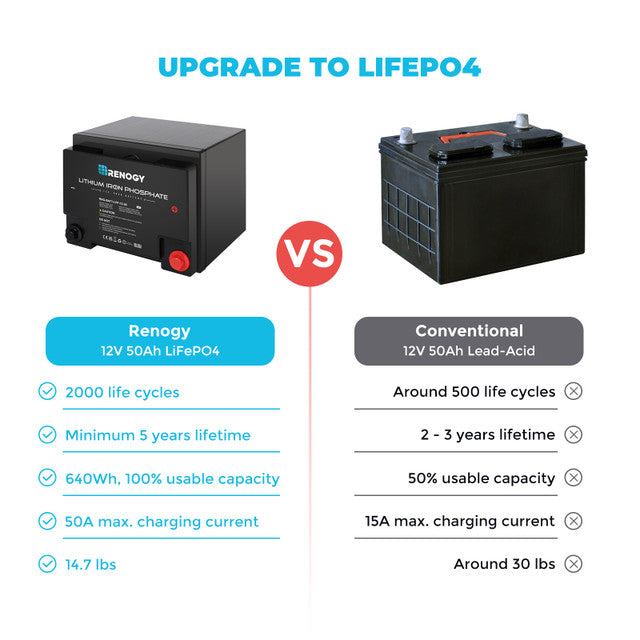

•    Four times longer lifespan- 2000 cycles
•    12V 50Ah 640Wh Powerful output
•    High discharging performance from -4℉ (-20℃) to 140℉ (60℃)
•    Safe and reliable
•    BMS protection
•    Low self-discharge
•    Real-time monitoring when connected to Battery Monitor
•    Triplex sealed construction
• Patent-designed construction

SPECIFICATIONS:

Electrical Specifications
Battery Type: Lithium Iron Phosphate
Rated Capacity: 50AH
Nominal Voltage: 12.8V
Voltage Range: 10-14.8V
Energy: 640WH
Cycle Life (0.5C,25℃): 2000 Cycles at 80% DOD
Connection Method: Parallel (Up to 8)
Automatically Self-heating Function: No

Mechanical Specifications

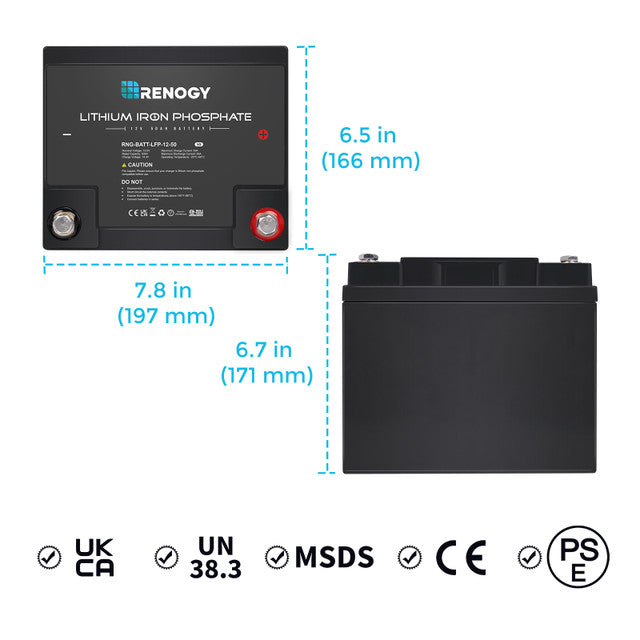

Dimensions: 7.8 x 6.5 x 6.7 in / 197 x 166 x 171 mm
Weight: 14.7 lbs / 6.7 kg
Protection Rate: IP65
Housing Material: ABS + PC

Charging Parameters
Charge Voltage: 14.4 ± 0.2V
Maximum Continuous Charging Current: 50A
Charge Cut-off Voltage: 14.6V

Discharging Parameters
Maximum Continuous Discharging Current: 50A
Discharge Cut-off Voltage: 10V

Temperature Parameters
Standard Operation Temperature: 73.4 ± 9℉ / 23 ± 5℃
Storage Temperature: Less than 1 year: 32~77℉ / 0~25℃, Less than 3 months: 23~95℉ / -5~35℃
Charge Temperature: 32-113° F/0-45°C
Discharge Temperature: -4-140° F/-20-60°C

Communication
Built-in Bluetooth: No
Communication Port: No

Accessories
Bolts: M8 ×2
Activation Switch: No

Warranty
Material and workmanship warranty: 3-year

Certifications
Certifications: MSDS, UN38.3, CE, UKCA, PSE

WHAT’S IN THE BOX:

1 x Renogy Lithium-Iron Phosphate Battery 12 Volt 50Ah

2 x Long Replacement Bolts (M8 x 1.25 x 20mm)
