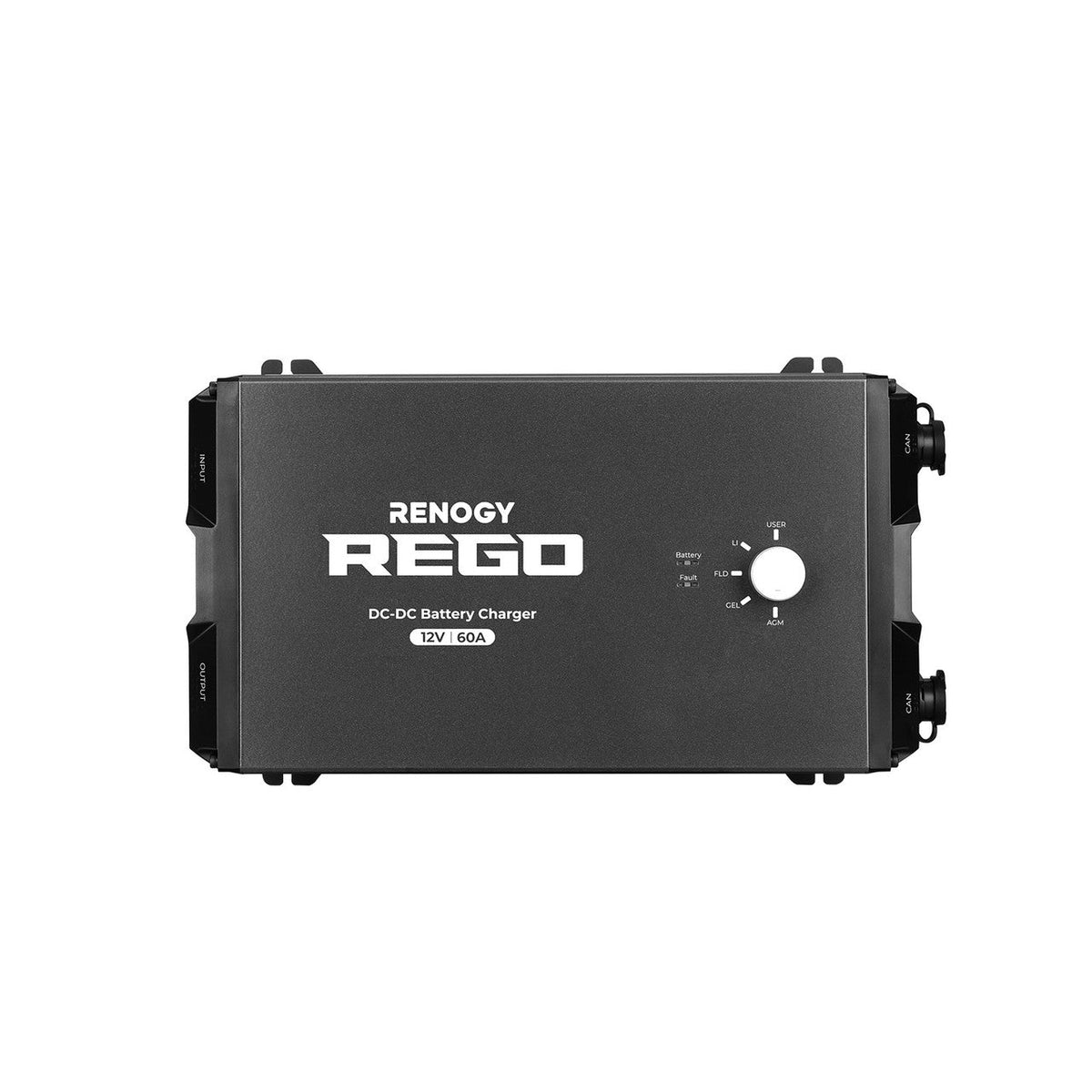

Renogy REGO 12V DC-DC Battery Charger

Renogy REGO 12V DC-DC Battery Charger

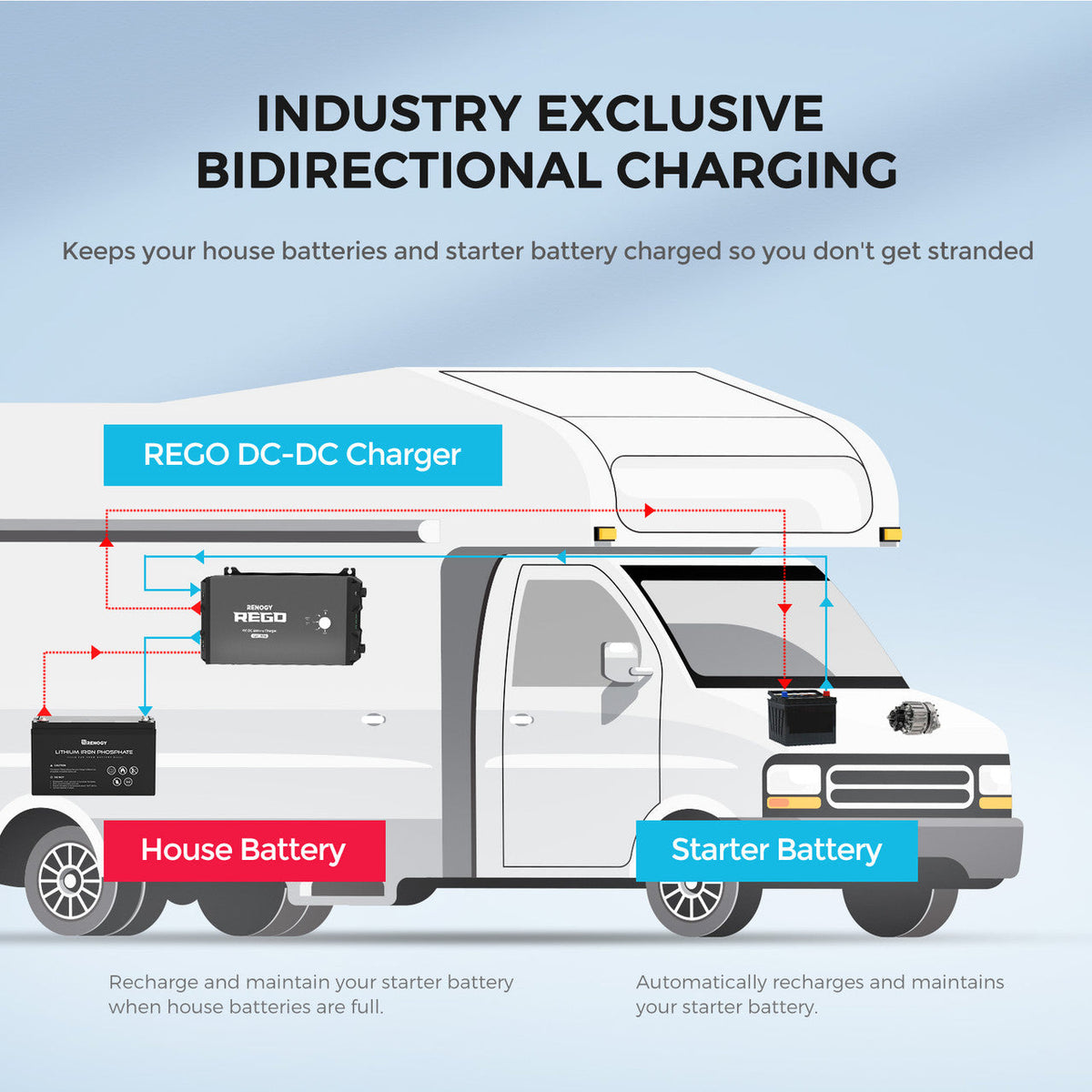

A convenient and powerful charger, the Renogy REGO 12V DC-DC Battery Charger comes with an exclusive bidirectional technology that not only provides the most effective way to charge your house batteries from the starter battery on the go but also recharges and maintains your starter battery when the house batteries are full.

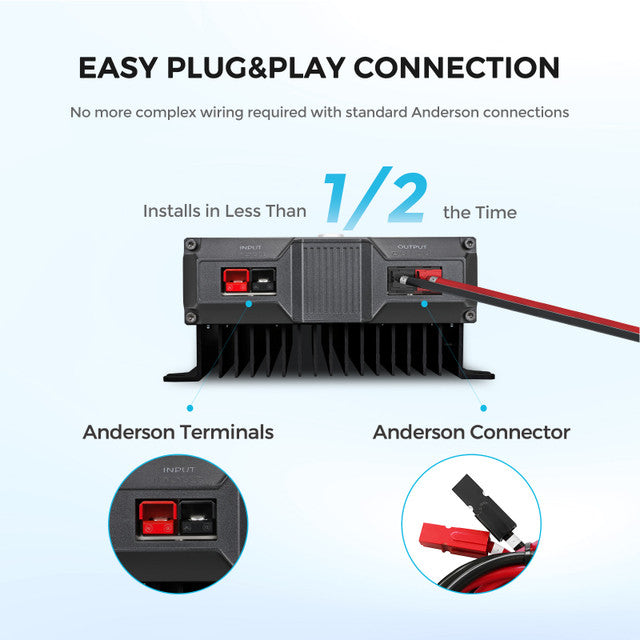

Compatible with the popular 12V alternators, this innovative charger allows you to efficiently charge your 12V batteries directly from your vehicle's alternator, ensuring a reliable power source wherever you go. It uses 75A Anderson terminals and specially designed Anderson-ring Lug connectors for a simple and easy way to connect batteries for an easy plug-and-play method.

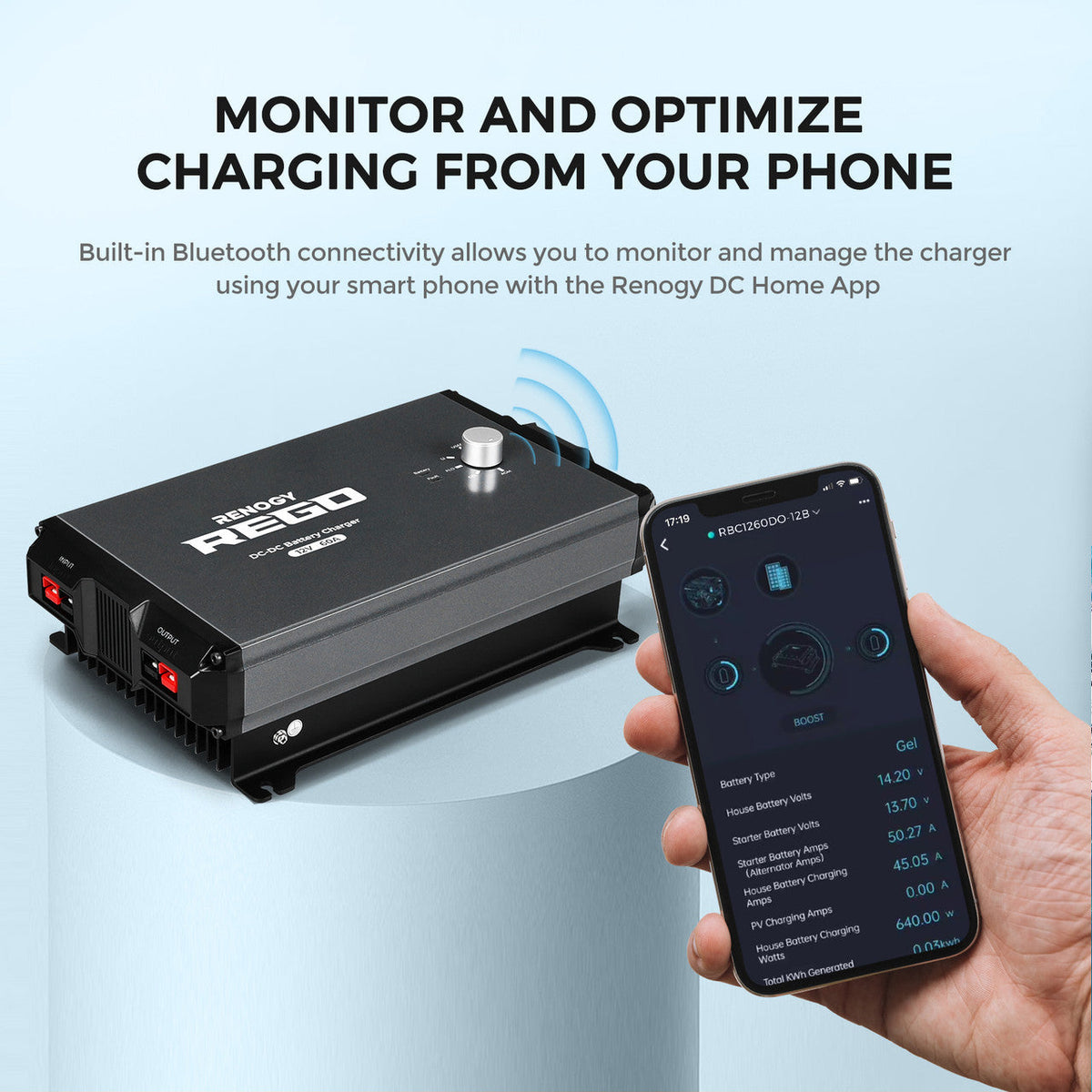

With the help of the Renogy DC Home App on your smartphone, you can keep an eye on the charging progress of the REGO DC-DC Battery Charger thanks to its integrated Bluetooth module. You can adjust the Boost Voltage, Float Voltage, and Boost Duration time on the app after setting the battery type option to USER MODE.

Extreme heat and cold don't affect the REGO DC-DC battery charger's functionality. It has a matching temperature sensor that provides -3mV/°C/2V correction to safeguard your battery against extreme heat or cold. This increases battery longevity and provides steady, consistent charging.

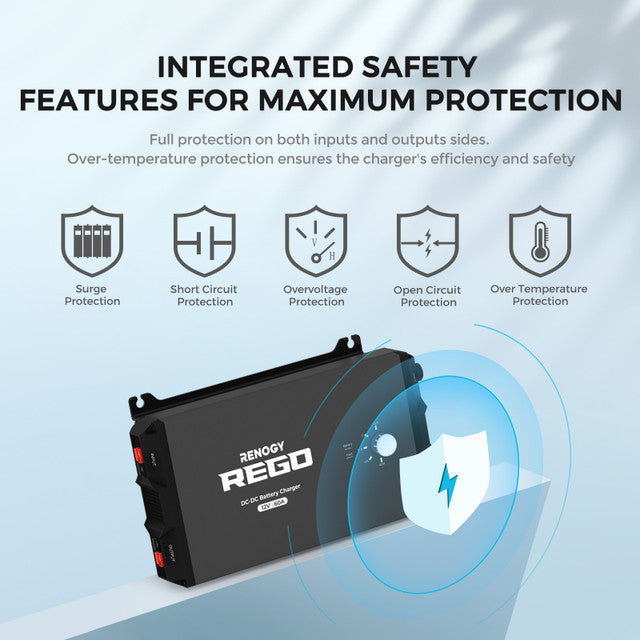

Lithium, Gel, AGM, SLD, and flooded batteries may all be charged with this battery charger. To guarantee optimal operational safety, the REGO battery charger has built-in overvoltage, overtemperature, and reverse polarity protection on both inputs and outputs. It comes with a 5-year warranty and is certified by the FCC, CE, RED, MIC, and other organizations.

Whether you're on the road or off the grid, the Renogy REGO 12V DC-DC Battery Charger is a must-have for anyone looking to stay powered up. Order yours today and never be left in the dark again!

Highlights:
•    Exclusive bidirectional charging
•    Easy installation and operation
•    Built-in Bluetooth connectivity
•    Temperature resistant
•    5-Year warranty
•    High-efficiency charging
•    Compatible with most battery alternators
•    Integrated safety features

SPECIFICATIONS:

System Voltage: 12V

Rated Max Charge Current: 60A

Battery Operating Range: 10-16V

Alternator Input Voltage: 13.5-16VDC

Smart Alternator Voltage: 12.5-16VDC

Input Fuse Rating: 90A

Power Consumption: ≤50 mA

Operating Temperature Range: -20℃-60℃ / -4℉-140℉

Humidity: 0%-95%, No Condensation

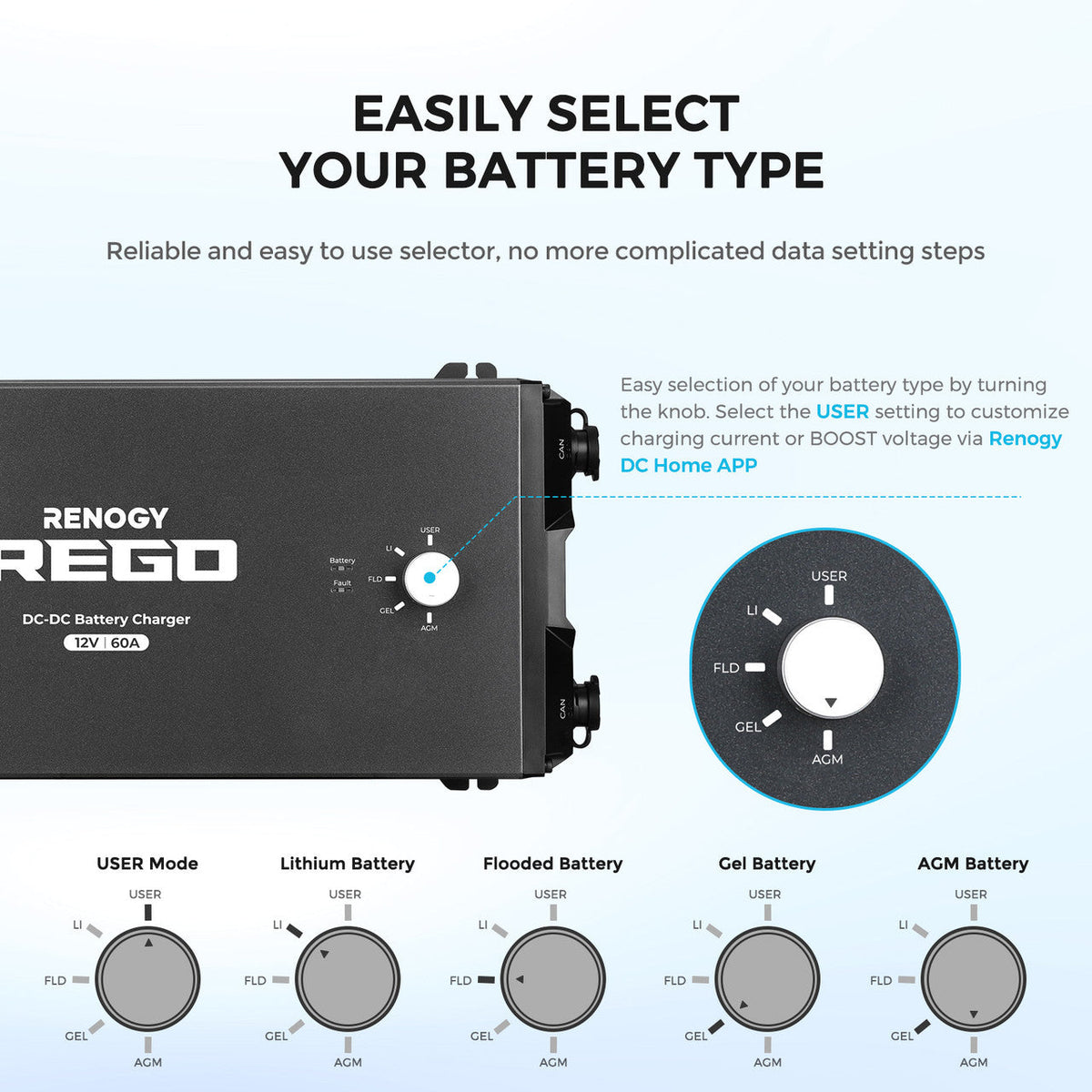

Battery Types: SLD/AGM; FLD; GEL; USER; LI

Rated Max Charge Power: 800 W

Output Fuse Rating: 80A

Charge Efficiency: Up to 94%

Storage Temperature Range: -35℃-65℃/ -31℉-149℉

Temperature Compensation: '-3mV / ℃ / 2V (non-lithium); '0mV / ℃ / 2V; no compensation (Lithium)

Electronic Protections: Surge Protection, Short Circuit Protection, Reverse Polarity Protection, Overvoltage Protection, Over Discharge Protection, Overcurrent Protection, Over Temperature Protection, Overcurrent Protection, Open Circuit Protection

Communication: Modebus; RV-C

Grounding Type: Common Negative Lug

Dimensions (L x W x D): 13.91 x 8.37 x 4.02 in / 353.53 X 212.75 X 102.21mm

Weight: 7 lbs/ 3.12kg

Terminal Size: Anderson PP75

Terminal Range: 8AWG-6AWG

Certifications:  CB, FCC, CE, UKCA, MIC

Product Warranty: 5 Year

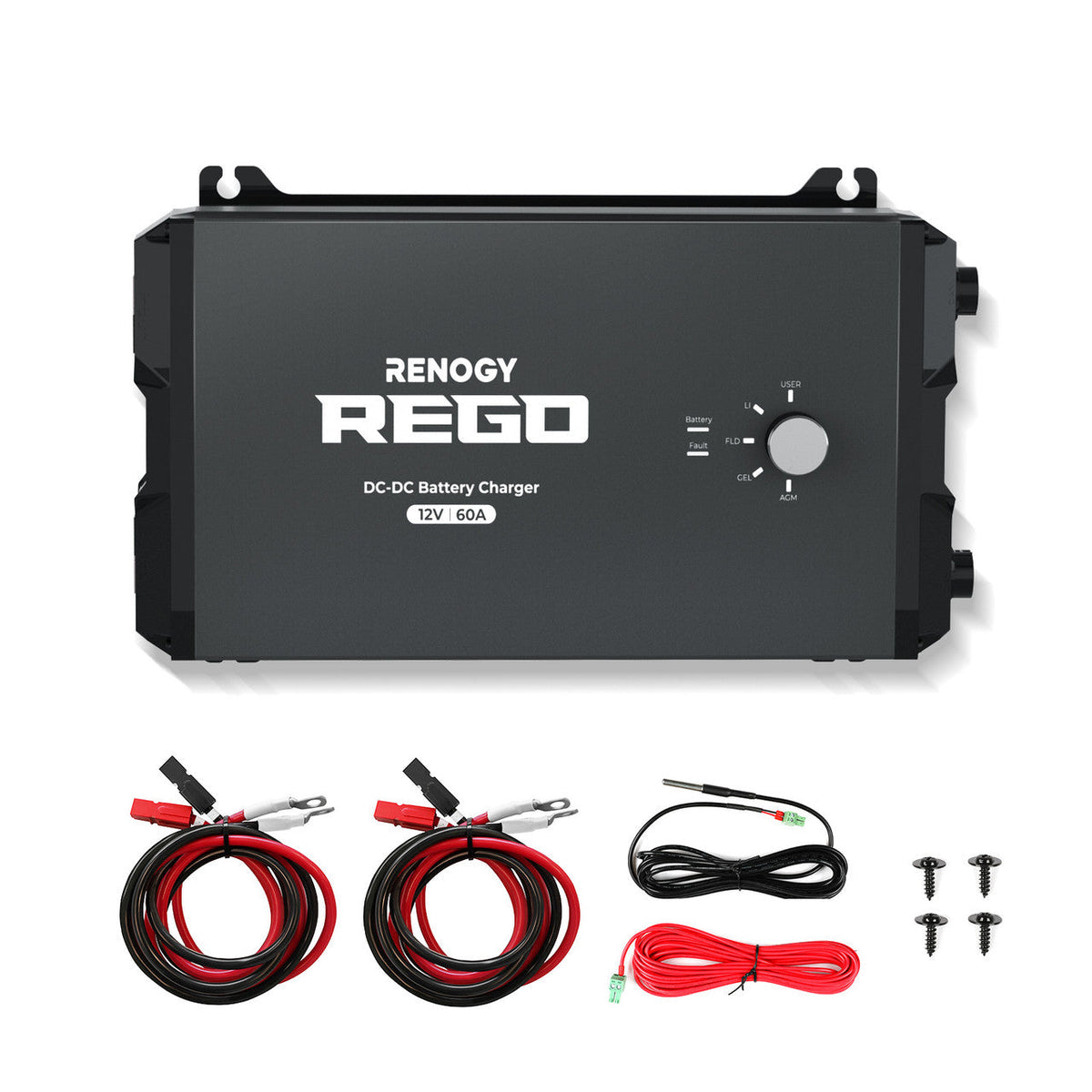

WHAT’S IN THE BOX:

1 x Renogy REGO 12V DC-DC Battery Charger

4 X Mounting Screws

1 X IGN Signal Wire (Red)

1 X Renogy Temperature Sensor (Black)
