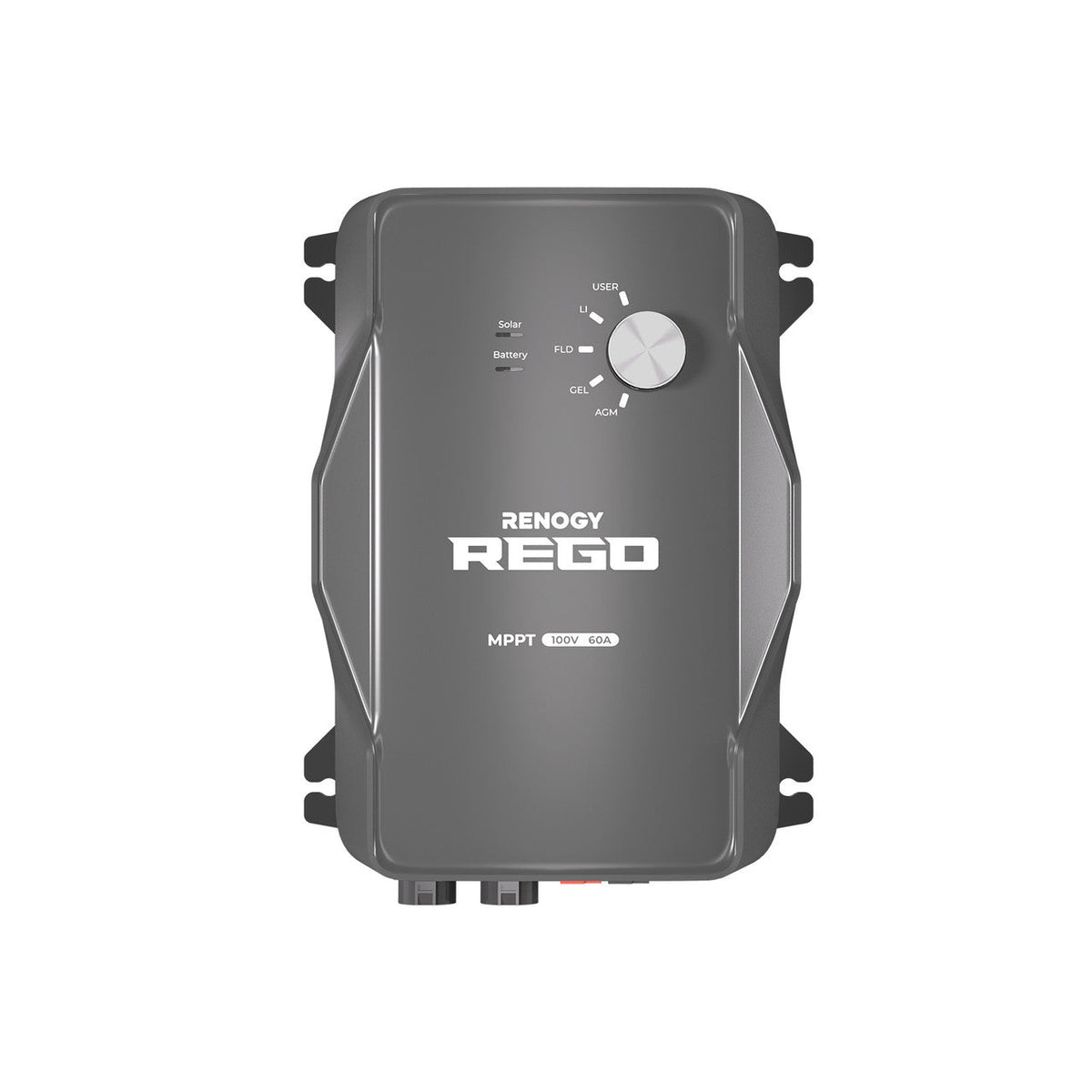

Renogy REGO 12V 60A MPPT Solar Charge Controller + 10Ft Power Cable

Renogy REGO 12V 60A MPPT Solar Charge Controller + 10Ft Power Cable

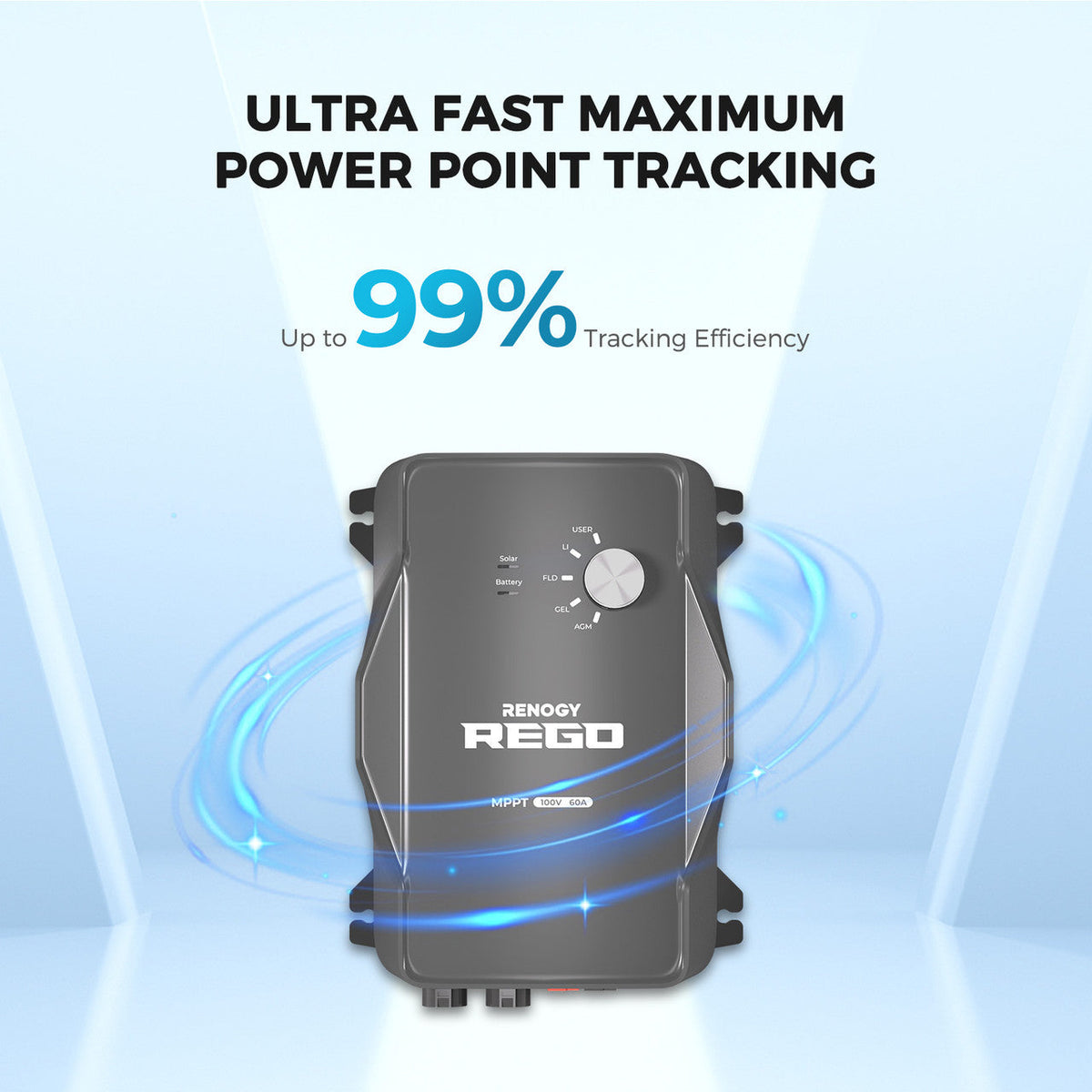

Gift the Renogy protection to your solar power system with REGO 12V 60A MPPT Solar Charge Controller, a plug and play controller saving precious installation time. The compact controller uses efficient MPPT technology with 99% tracking efficiency allowing optimal solar power generation for your system.

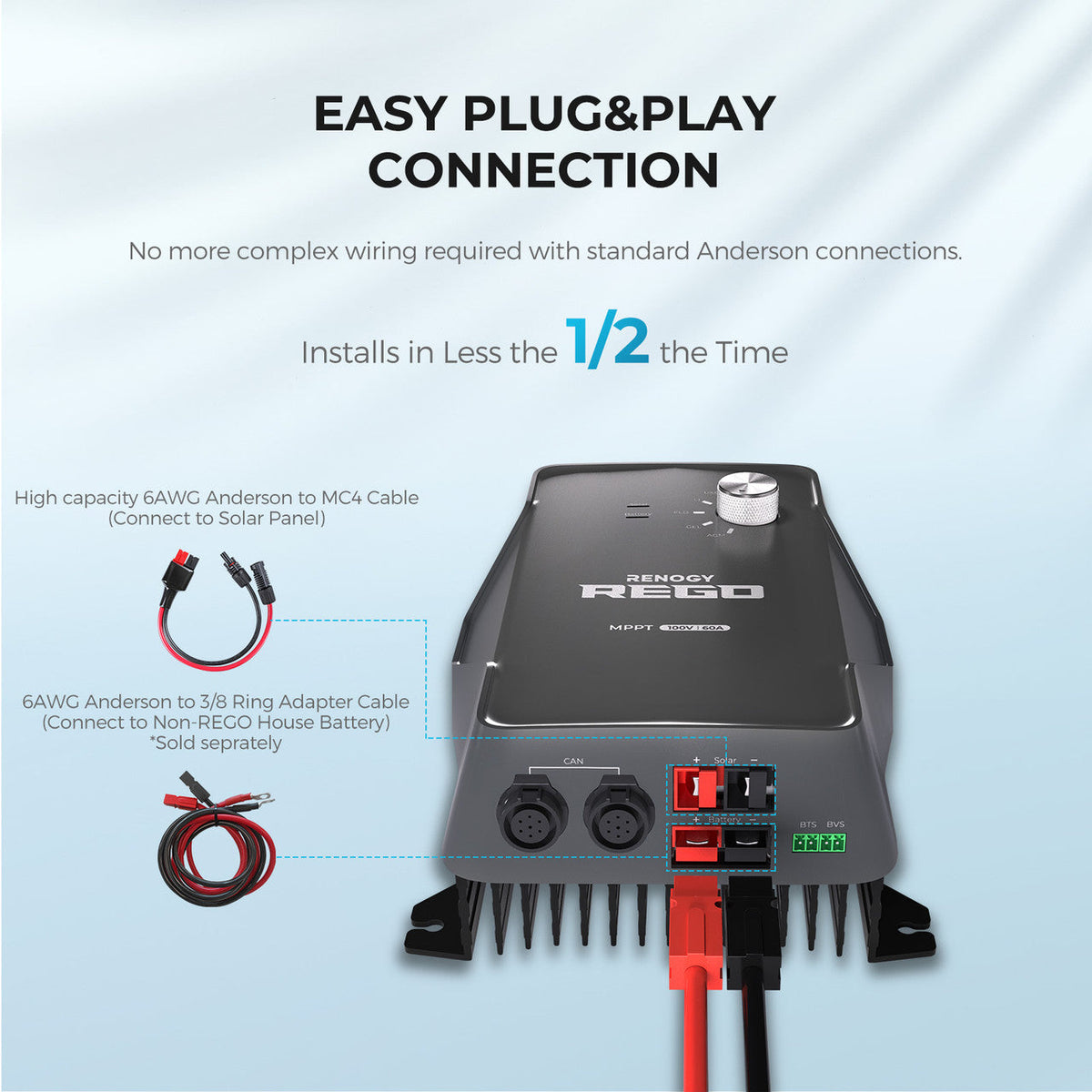

A fancy piece of equipment, the REGO MPPT solar change controller with its 10ft power cable boasts of a specially designed Anderson to MC4 adapter cable establishing easy connectivity to solar panels.

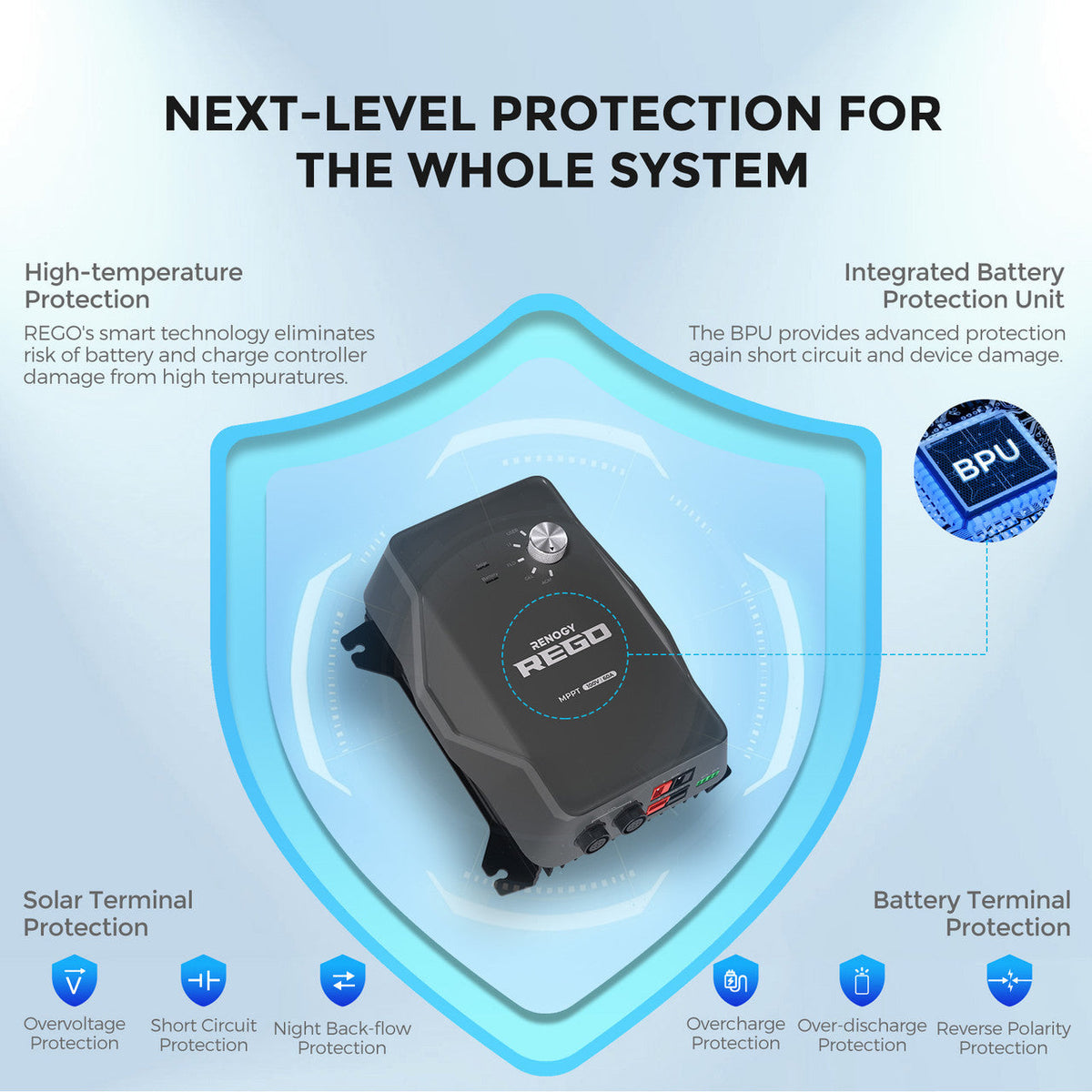

The integrated Battery Protection Unit (BPU) engulfs your battery system with comprehensive protections against any battery cell damage or failure. The charge controller adopts Bulk, Boost, Float and EQU, typical stages of charging for lead acid batteries and a 2 stage charging for lithium batteries. The BPU automatically disconnects battery from non-essential loads before it completely drains out.

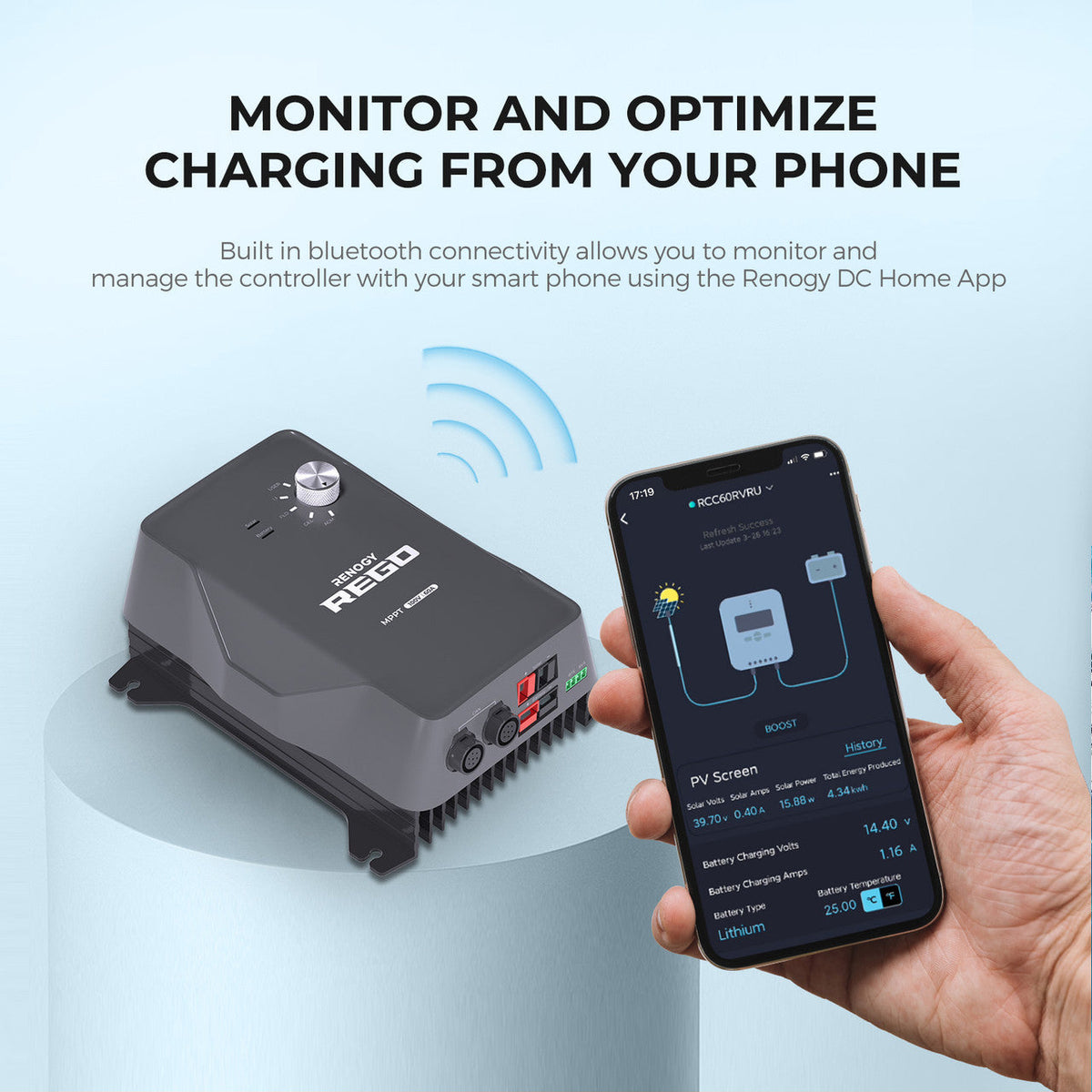

Customize the way you monitor and control this MPPT solar charge controller with the built-in Bluetooth via the Renogy DC Home app on your smartphone. REGO has aced thermal management thanks to its advanced chassis design with excellent heat dissipation that allows consistent performance.

Tested to highest quality standards, REGO MPPT solar charge controller allows stable and efficient charging at a wide operating temperature range of -4 °F to 140 °F.

Specifications:

Nominal System Voltage: 12 V

Rated Charge Current: 60A

Max. PV Input Power: 800W

MPPT Voltage Range: 15 - 100 VDC /12V

Solar Input Voltage Range (VOC): 100 V

Max Input Current (short-circuit, Isc): 50A

Power Limiting Protection: Up to 800W/12V

Battery Operating Range: 10 -16V

Power Consumption: ≤0.5 W

Ground Type: Common Negative Lug

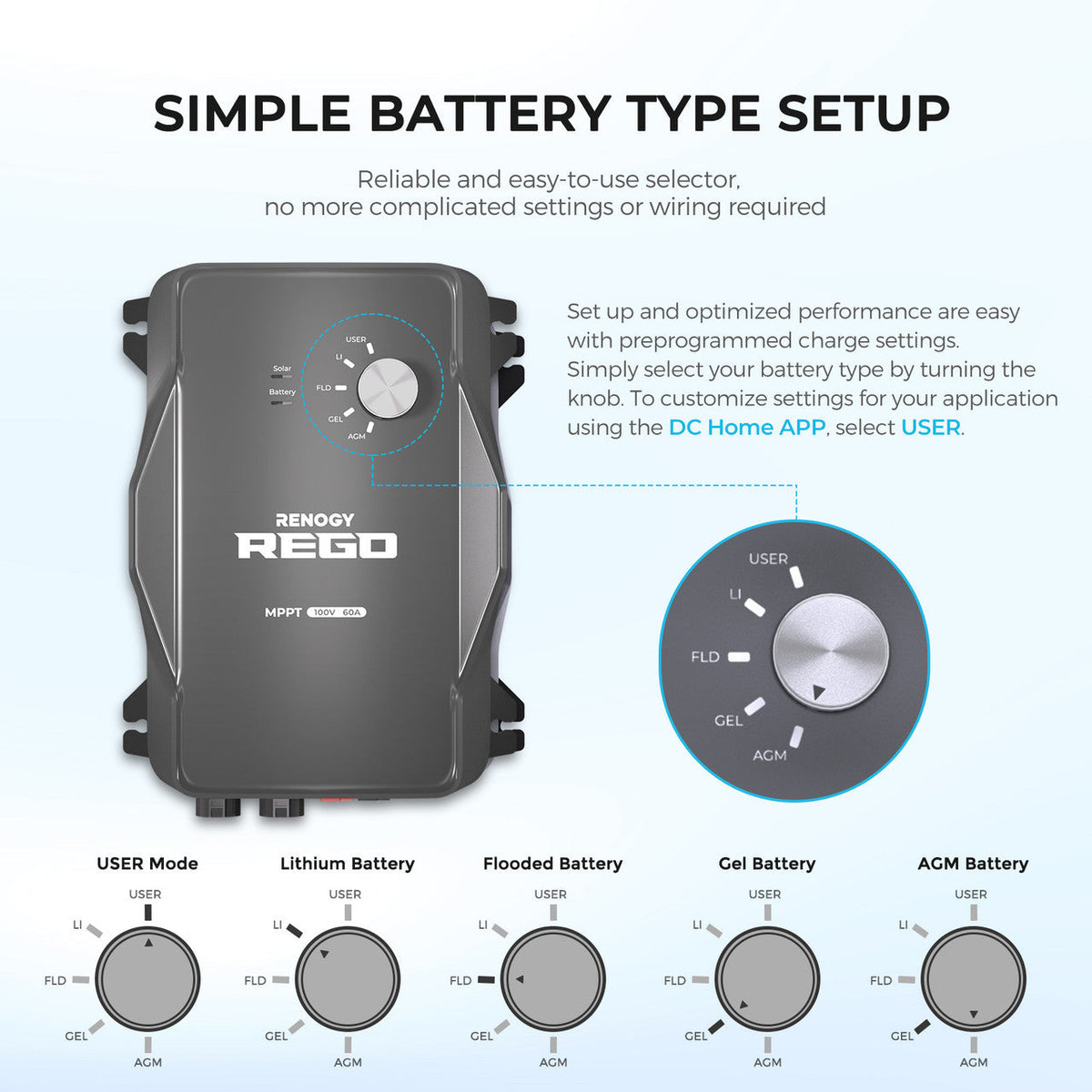

Battery Types: AGM/Sealed, GEL, FLOODED, LFP, USER*

Electronic Protections: Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection

Operating Temperature Range: -20 ℃ - 60℃

Storage Temperature Range: -25 ℃ - 65℃

Operating / Storage Humidity: 0%-90% RH

Temperature Compensation: '-3mV / ℃ / 2V (Non-Lithium)；'0mV / ℃ / 2V; no compensation (Lithium)

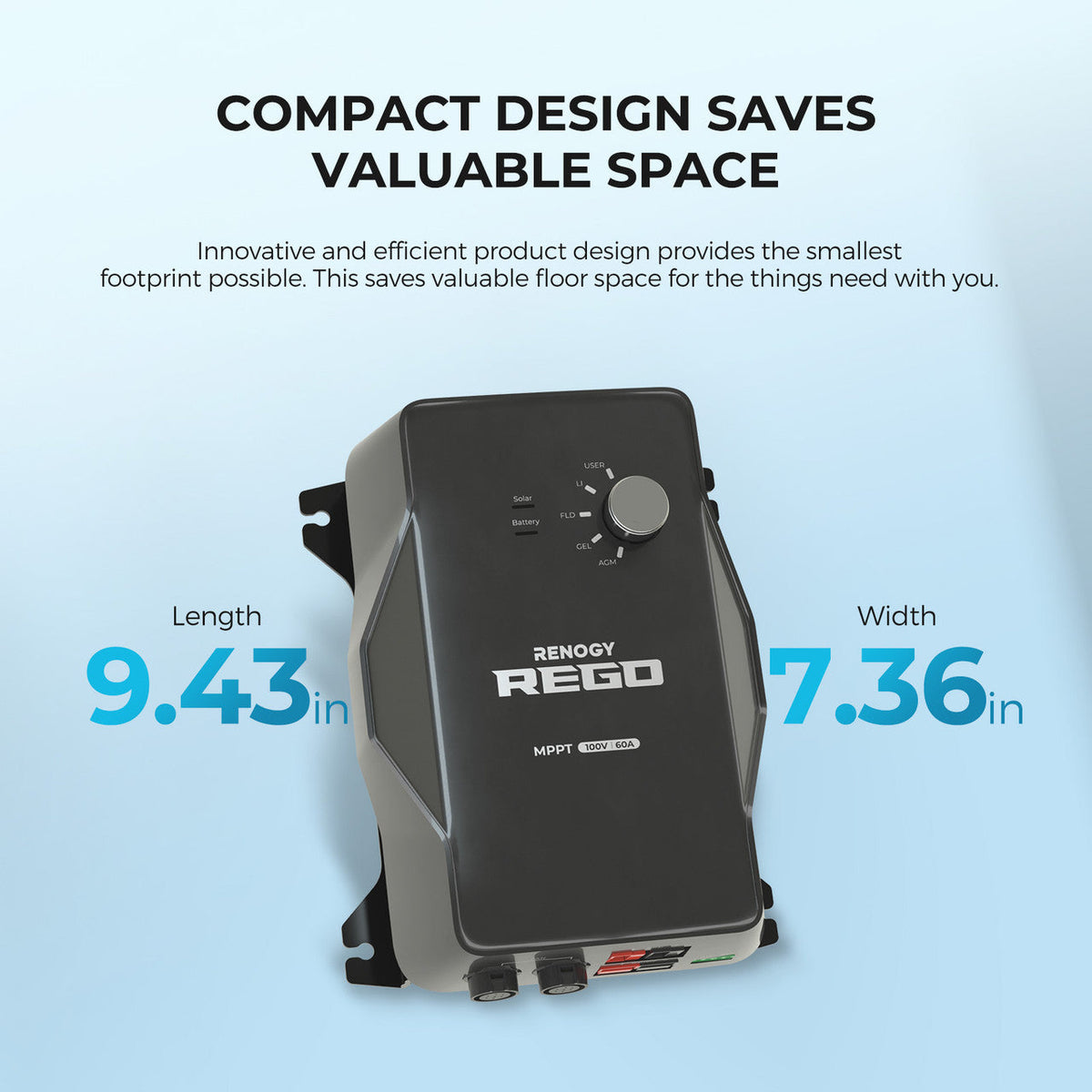

Dimensions: 9.43 x 7.36 x 4.28 in.

Weight: 5.07lbs

Terminals Size: Anderson PP75

Remote Monitor: Bluetooth Module BT-2 (RS485 / CAN bus signal)

CE and RoHS compliant: YES

FCC Class B Part 15 Compliant: YES

Material and workmanship warranty: 5 Year

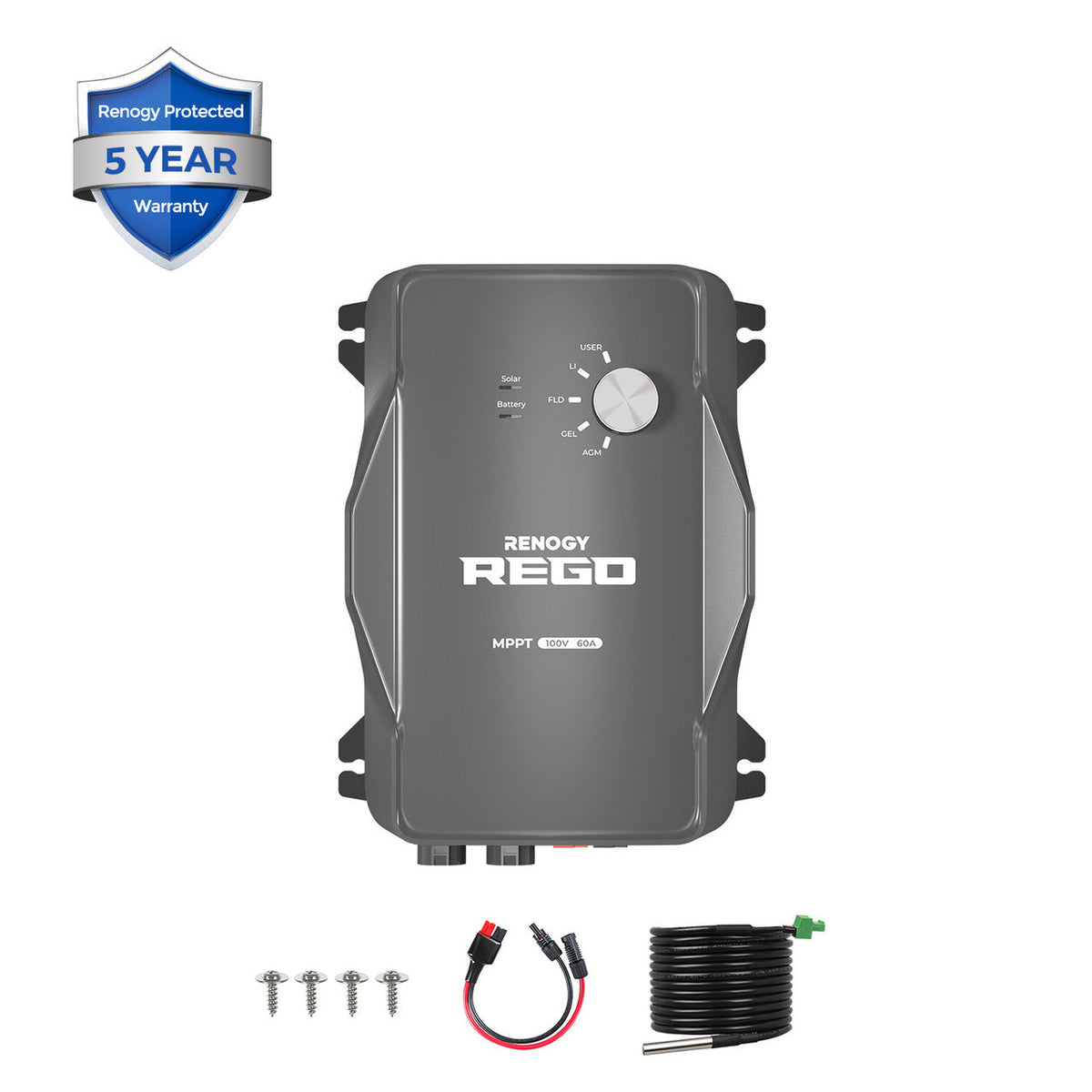

What's in the Box:

1 x REGO 12V 60A MPPT Charge Controller

1 x Renogy Temperature Sensor

1 x Solar Adapter Cable

4 x Mounting Screws

1 x 10Ft 6AWG Anderson Adapter Cable

1 x User Manual
