Renogy 400 Watt 12 Volt Solar RV Kit

Renogy 400 Watt 12 Volt Solar RV Kit

Renogy 400 Watt 12Volt Solar RV Kit is a comprehensive package to supply your RV with sustainable energy to help dock and park your entertainment zone without a power hookup. Tapping into the abundantly available, inexhaustible sunlight, Renogy Solar RV Kit brings greater freedom to your outdoors.

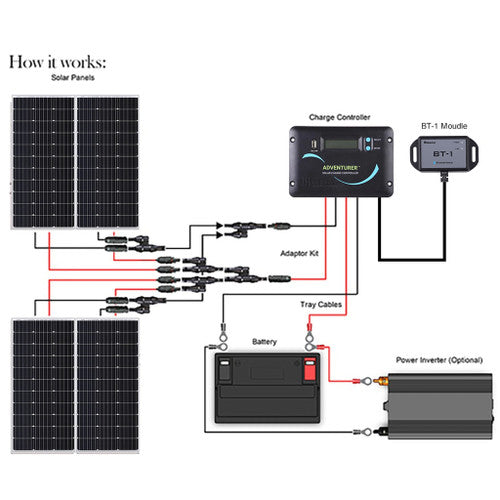

A complete kit of 4 solar panels, charge controller, adaptor kit, tray cable, branch connectors, Bluetooth module and cable entry housing ensure your installed solar panels blend in with your RV aesthetics and the entire set up is negative grounded for battery compatiblity.

The intuitive LCD screen displays real time data allowing you to control parameter settings. The control comes embedded with self-diagnostics and electronic protection to keep the panels protected from faulty installation or system goof ups.

Our newly added Bluetooth module allows you to view and make real-time changes in parameters via smartphone app DC home.

Highlights:

• High-efficiency Monocrystalline Silicon 21% cell conversion
• Bypass diodes for optimal performance in low-light conditions
• Guaranteed no hot-spot heating
• IP65 Rated for protection against low pressure water jets
• Durable Corrosion-resistant aluminum frame
• 4 stage battery charging process for rapid charging
• Remote monitor and control via Bluetooth

Specifications:

RENOGY 100W MONOCRYSTALLINE SOLAR PANEL

Maximum Power: 100W

Maximum System Voltage: 600V DC (UL)

Open-Circuit Voltage (Voc): 24.3V

Optimum Operating Voltage (Vmp): 20.4V

Short-Circuit Current (Isc): 5.21A

Optimum Operating Current (Imp): 4.91A

Dimensions: 41.8 x 20.9 x1.4 in

Weight: 14.1lbs

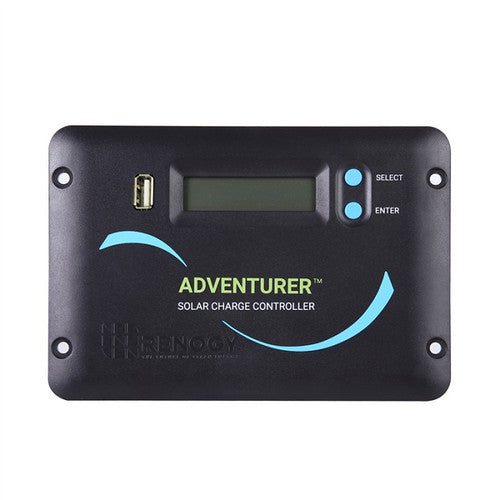

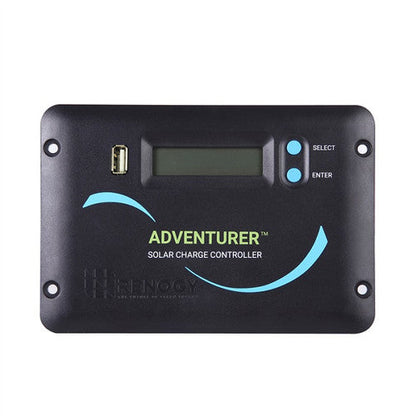

RENOGY ADVENTURER - 30A PWM NEGATIVE-GROUND CHARGE CONTROLLER WITH LCD DISPLAY

Nominal Voltage: 12V/24V Auto Recognition

Rated Charging Current: 30A

Battery Type(s): Sealed (AGM), Gel, Flooded, and Lithium

Max. PV Input Power: 400W at 12VDC

Max. PV Input Voltage: 50 VDC

Operating Temperature: -13F to 131F

Overall Dimension: 6.56 x 4.50 x 1.90 in

Weight: 0.6lb

RENOGY 16FT 10AWG TRAY CABLES (A PAIR)

Length: 16ft

AWG: 10

Rating Voltage: 600V

Temperature: -40°F to +185°F

RENOGY 30FT 10AWG SOLAR ADAPTOR KIT (A PAIR)

Length: 30ft

AWG: 10

Rating Voltage: 600/1000V

Temperature: -40°F to +185°F

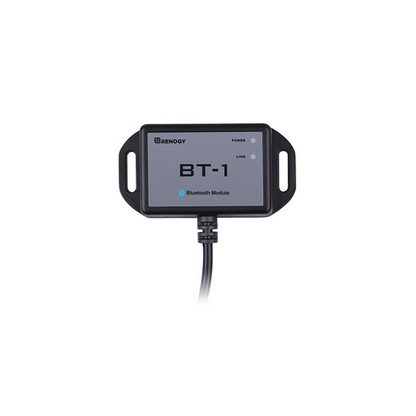

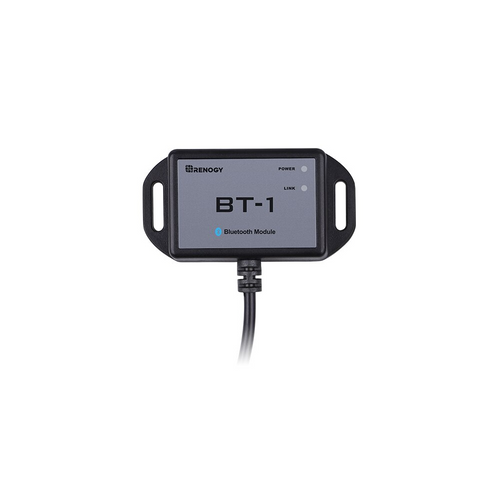

RENOGY BT-1 BLUETOOTH MODULE

Standby Power Consumption: 0.04W

Communication Range: ≤15m

Dimensions: 2.6 X 2.01 X 0.61 In

Max. PV Input Power: 400W (12V)

RENOGY SOLAR Y BRANCH CONNECTORS

Withstanding Voltage: 1000V DC(TUV), 600V(UL)

Protection Degree: IP67, mated

Wiring Size Range: 10, 12, 14 AWG

Temperature: -40°F to +194°F

RENOGY CABLE ENTRY HOUSING

Material: UV-resistant ABS Plastic

Weight (each component): 7.9 oz.

Recommended Adhesive: Sikaflex 252 or alike

Dimensions (L x W x H): 4.7 x 3.9 x 2.0 in

Cable Gland Diameter Range: 6mm – 12mm

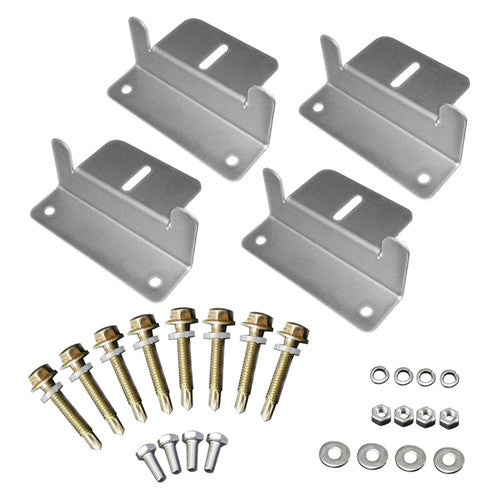

MOUNTING Z BRACKETS (SET)

Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers

Four Z Shape Solar Panel Brackets: Four Nuts

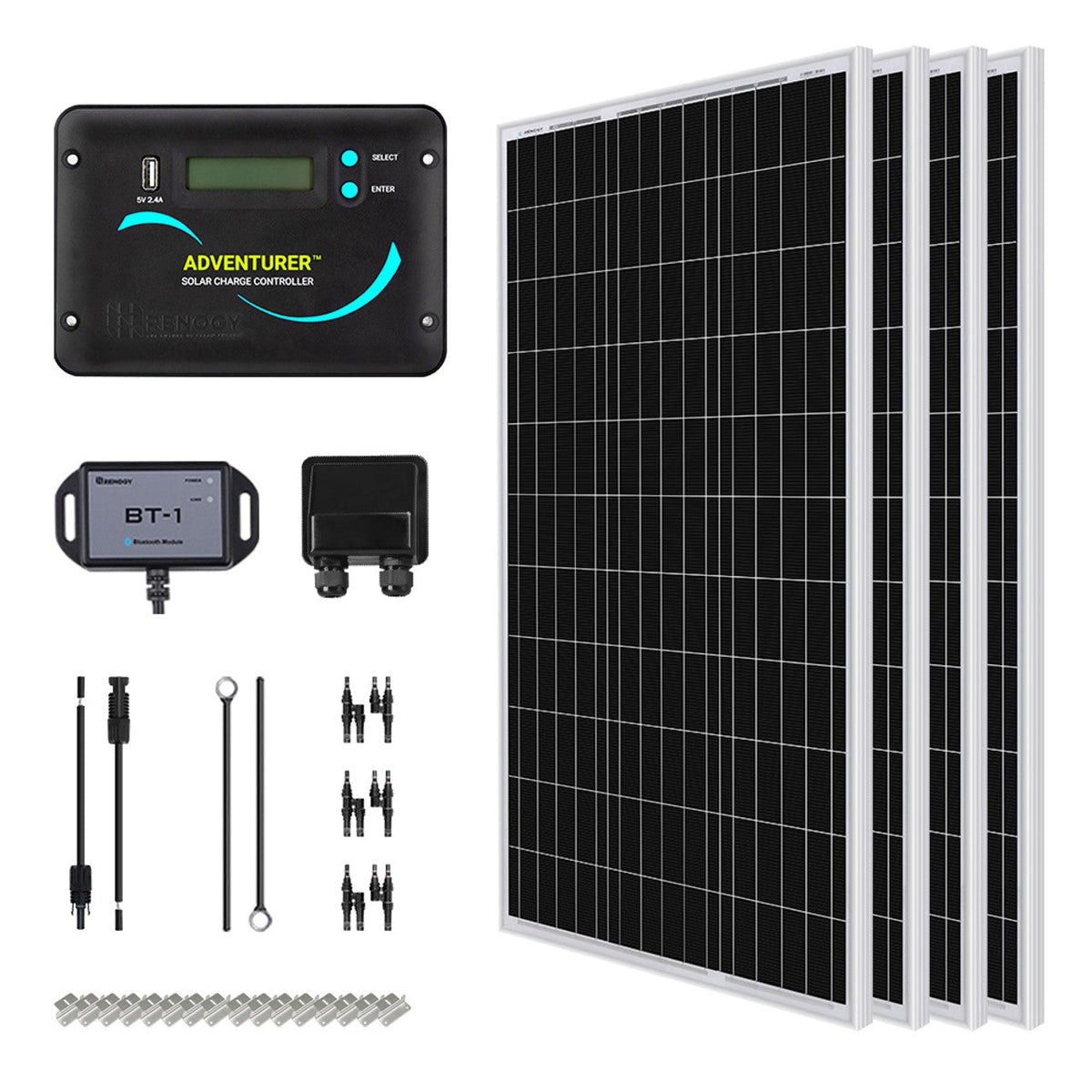

What's in the Box:

4 x 100W Mono Solar Panel

1 x Renogy Adventurer 30A PWM Charge Controller

1 x Renogy Cable Entry Housing

1 x Renogy 30ft. 10AWG Solar Adaptor Kit

1 x Renogy 16ft. 10AWG Tray Cables

3 x Renogy Solar Y Branch Connectors

4 x Mounting Z Brackets

1 x Renogy BT-1 Bluetooth Module

1 x User Manual
