Renogy 3500W solar reverse control integrated machine

Renogy 3500W solar reverse control integrated machine

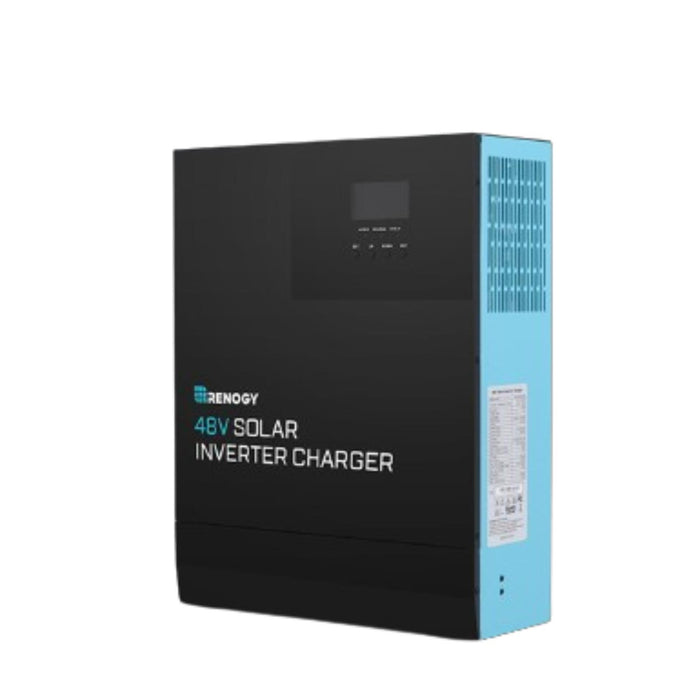

Achieve energy independence with Renogy 3500W Solar Reverse control integrated Machine, an all-in-one 48V solar inverter charger with a 10ms switchover for uninterrupted power supply to all your energy requirements.

VERSATILE OPERATION

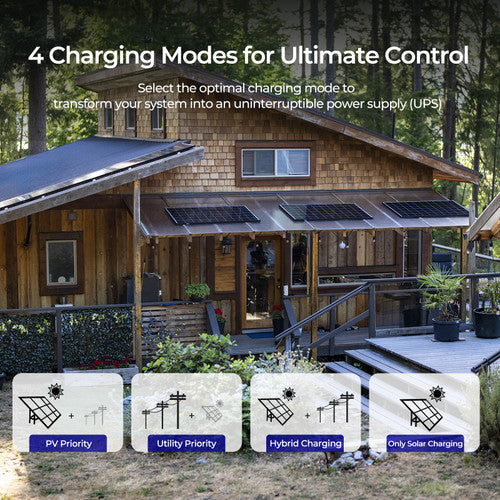

Renogy integrates solar charging, AC/generator battery charging and battery inverting with four user-configurable AC/Solar charging modes including PV priority, Utility Priority, Hybrid Charging and Only Solar Charging and 3 load output modes. The entire set up switches rapidly in just 10ms to off-grid mode to give you uninterrupted power.

HIGH POWER OUTPUT

Renogy delivers 7000W surge power to energize heavy load appliances. Energy supply for your RV outdoorsy adventures is well supplied with 3500W of pure green energy.

EFFICIENT SOLAR CHARGING

The 80A/145V MPPT charge controller captures optimal solar power to excellent energy conversion.

BUILT-IN SAFEGUARDS

Every conceivable electronic safeguard is in place to protect your energy system.

LOW IDLE CONSUMPTION

A 45W low idle consumption allows Renogy's power saving engineering to automatically switch to power saving mode to less than 25W.

Specifications:

Output Waveform: Pure Sine Wave

Continuous Output Power: 3500W

Peak Power Rating: 7000W

Output Voltage: 120VAC ± 5%

Output Frequency: 50 Hz ± 0.3% / 60 Hz ± 0.3%

Input Voltage / Rated Battery Voltage: 48VDC (minimum start-up voltage 44V)

Nominal Efficiency: > 90%

Bypass Breaker Current Load: 40A

Idle Consumption: 48W

Power Saver Mode Idle Consumption: < 25W

Charge Controller Type: MPPT

Maximum Input Power: 4400W

Maximum Input Current: 50A

PV Charging Current Range: 0-80A

Recommended Max. PV Open Circuit Voltage: 145VDC

PV Operating Voltage: 60-145VDC

MPPT Voltage Range: 60-115VDC

Short-circuit Protection: Internal Fuse

Wiring Protection: Reverse Polarity

Recommended Wiring: 8 AWG

Rated Input Voltage/Input Voltage Range: 120Vac/90 ~ 140VAC ± 2% Adjustable

Frequency: 50 Hz / 60 Hz (auto detect)

Efficiency: > 95%

Conversion Time: 10ms

Battery Type: Lead Acid and Lithium Battery

Maximum Charging Current: 40A

Charging Voltage Range: 40-60VDC

Short-circuit Protection: Breakers and fuses

Overcharge Protection: Yes (Automatically alerts and turns off charging after 1 min)

Reverse Flow Protection: Yes

Dimensions: 16.8 x 12.7 x 4.9 in / 426 x 322 x 124 mm

Weight: 23.8 lbs / 10.8kg

Communication Port: RS485/CAN Communication Port (BT-2 Bluetooth Module)

Cooling Fan: Yes

Operating Temperature Range: 5°F ~ 131°F / -15°C ~ 55°C

Storage Temperature: -13°F ~ 140°F / -25°C ~ 60°C

Humidity: 5% to 95% (three-layer paint protection)

Noise: ≤60dB

IP Grade: IP 20

Safety Class: I

What's in the Box:

1 x 48V 3500W Solar Reverse Control Integrated Machine

1 x 16.4 ft. Inverter Remote Control

1 x User Manual
