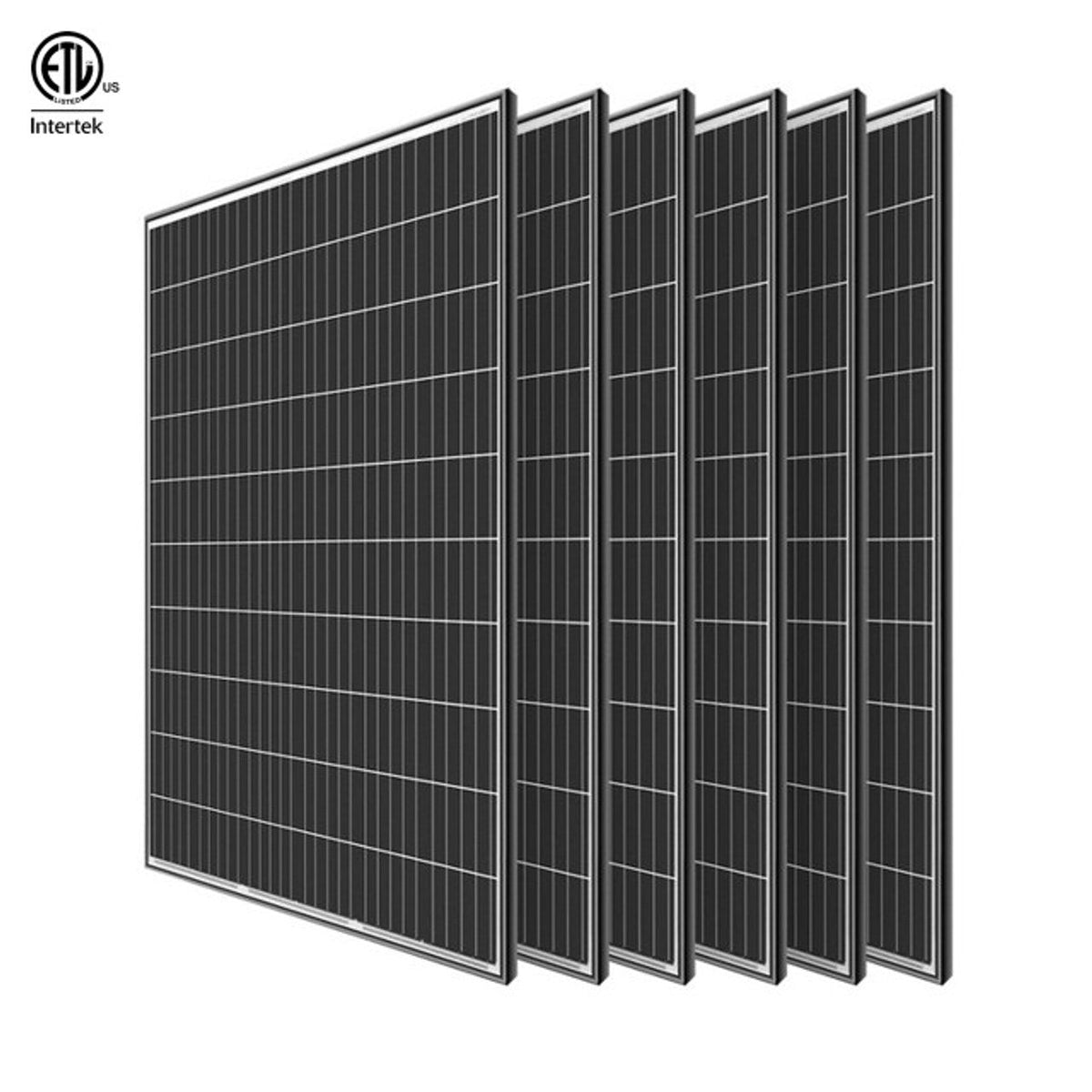

Renogy 320W Solar panel（6 pcs）

Renogy 320W Solar panel（6 pcs）

Renogy introduces the space-optimized 320W Solar Panels featuring the latest high-efficiency PERC cells that taps into the supreme solar energy to provide you with an average of 1600Wh/day with just 5 hours of sunlight.

SUSTAINABLE OUTPUT

With Renogy you get long-lasting guarantee of sustainable energy with 95% output warranty in the first 5 years. A 10 year material and workmanship warranty ensures you enjoy 80% of energy output even after 25 years.

SPACE OPTIMIZED PANELS

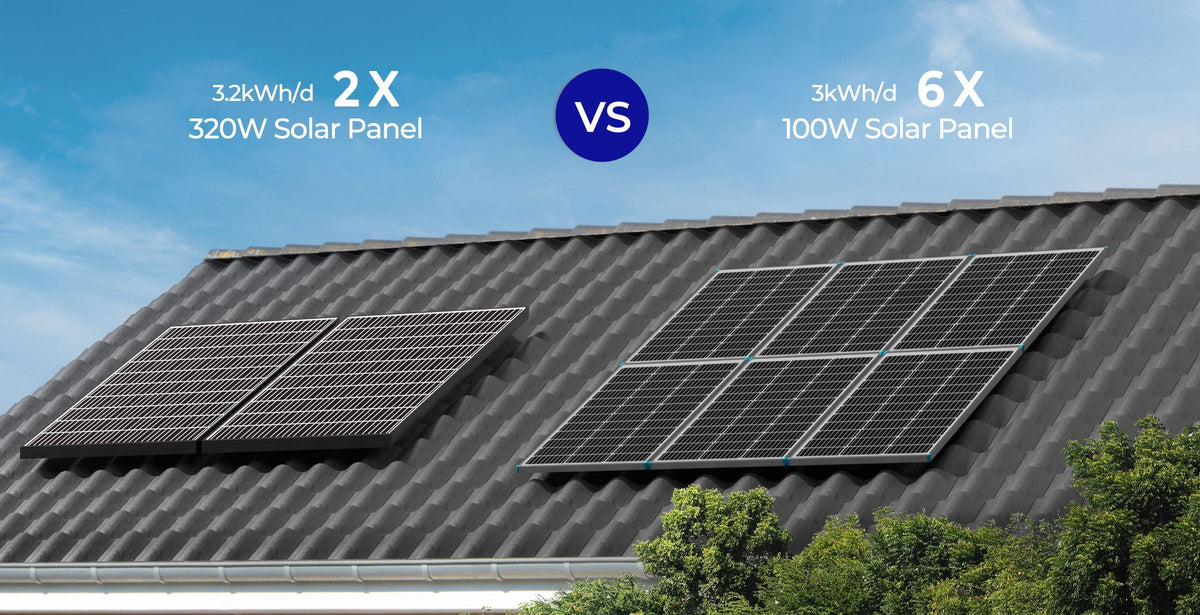

You need just 2 of Renogy's 320W Solar panels as against 6 of any 100W regular panels which means Renogy adds to the aesthetic of your original rooftop design.

ADVANCED PERC SOLAR CELLS

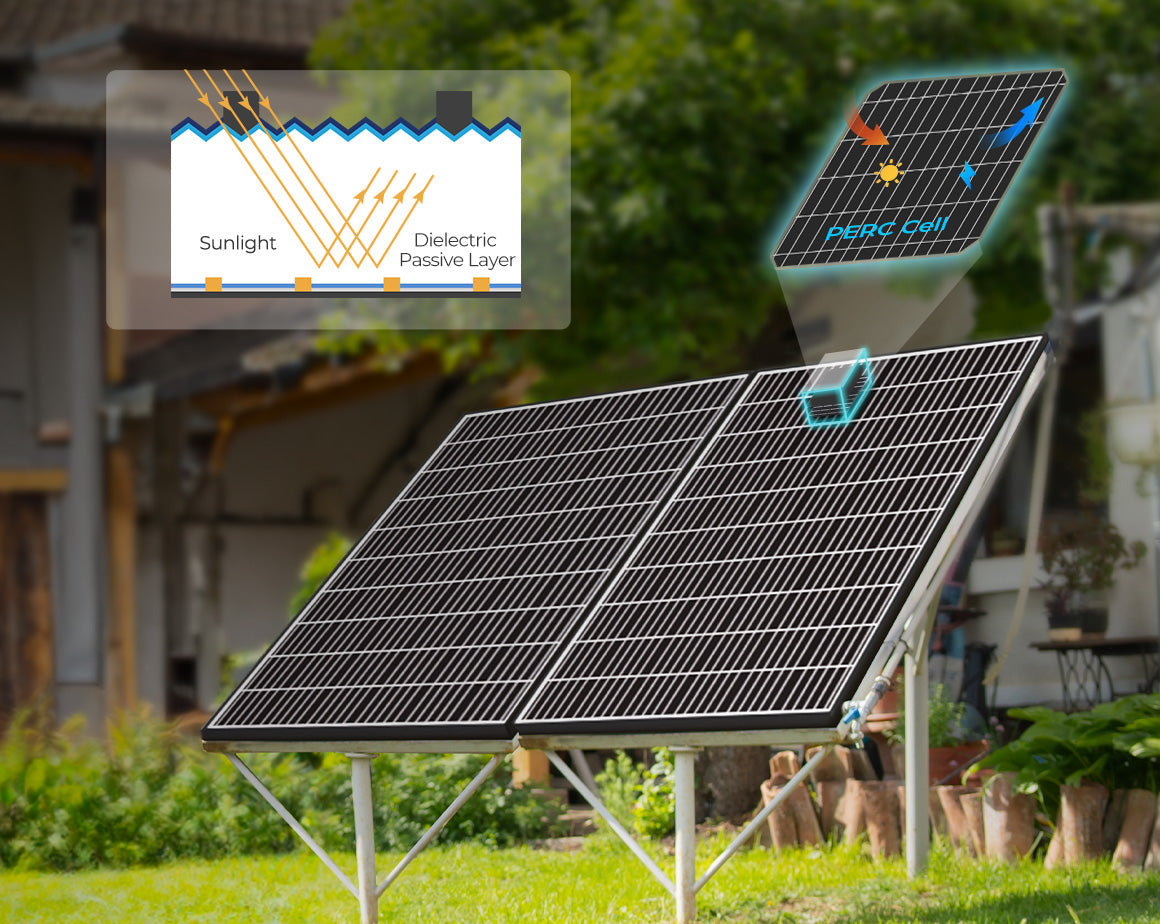

Boosting the energy generating efficiency of Renogy Solar Panels is a passivation layer added to the backside of the latest generation PERC cells.

UNINTERRUPTED POWER

Enjoy uninterrupted power as these panels come fitted with bypass diodes that not only protect the cells from overheating but also allow the panel to bypass any underperforming cells.

HIGH LIGHT TRANSMISSION VALUES

Renogy achieves light transmission values of up to 91.5% with its impact-resistant, anti-reflective, low iron-tempered glass, converts more sunlight into sustainable electricity.

DURABLE DESIGN

Designed to last a lifetime, Renogy 320W solar panels boast of corrosion resistant frame and glass built to brave high winds (2400pa) and snow loads (5400pa).

Specifications:

Max Power at STC: 320W

Open Circuit Voltage: 40.3V(±5%)

Short Circuit Current: 10.23A(±5%)

Optimum Operating Voltage: 33.0V

Optimum Operating Current: 9.70A

Module Efficiency: 19.20%

Cell Efficiency: ≥22%

Maximum System Voltage: 1500 VDC UL

Maximum Series Fuse Rating: 20A

Cell Type: Monocrystalline (6.3x 6.3 in)

Number of Cells: 60 (6 x 10)

Dimensions: 65.6 x 39.4 x 1.4 in

Weight: 39.7 lbs

Front Glass: Tempered Glass 0.13 in

Operating Temperature: -40°F to 185°F

What's in the Box:

6 x 320W Solar Panels

1 x User Manual
