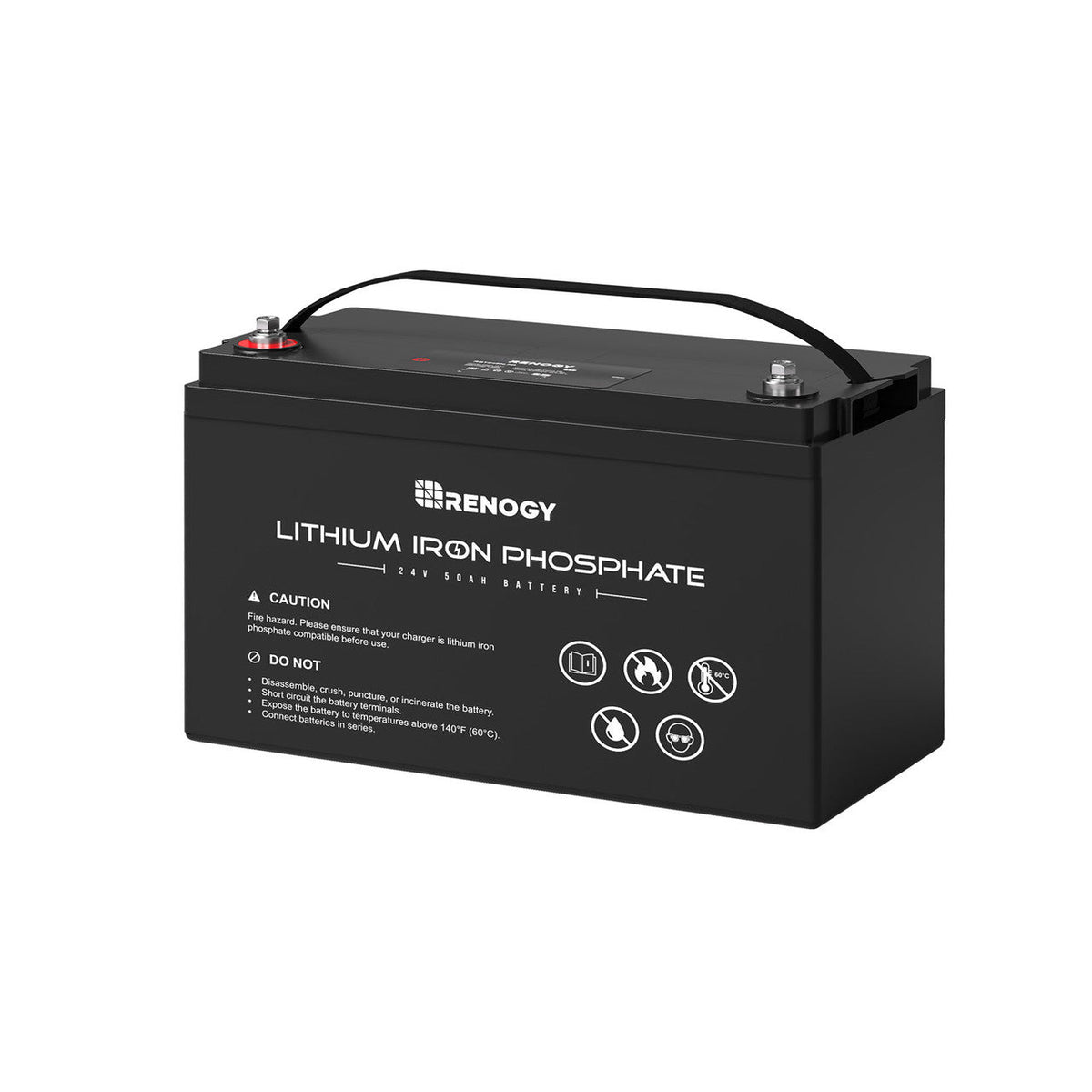

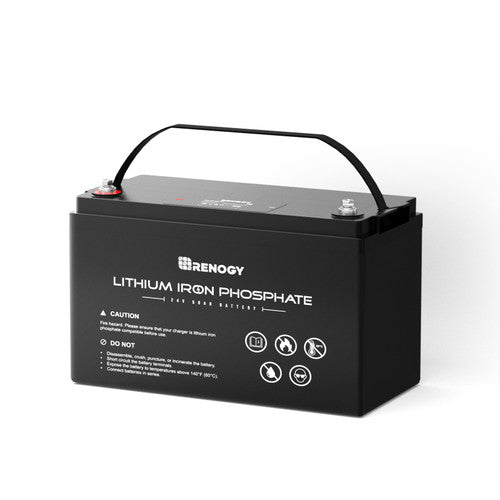

Renogy 24V 50Ah Lithium Iron Phosphate Battery

Renogy 24V 50Ah Lithium Iron Phosphate Battery

The Renogy 24V 50Ah Lithium Iron Phosphate Battery offers long-lasting energy storage for a variety of applications, from off-grid solar systems to backup power. This lightweight yet durable battery is designed to provide reliable power while being highly efficient, delivering excellent performance in both indoor and outdoor environments. Whether you’re powering a cabin, RV, or solar installation, this battery ensures that your energy needs are met with a focus on longevity and safety.

High Efficiency and Long Cycle Life

Offering over 4,000 cycles, this LiFePO4 battery lasts much longer than traditional lead-acid batteries, ensuring more use and better value over time.

Superior Energy Density

With its 24V system and 50Ah capacity, it stores more energy in a compact size, making it ideal for space-saving setups.

Built-In Battery Management System (BMS)

The integrated BMS protects the battery from overcharge, over-discharge, overcurrent, and short-circuit situations, enhancing safety and performance.

Lightweight and Compact

Weighing much less than traditional batteries, this unit is easy to install and transport, making it ideal for portable power needs or tight spaces.

Eco-Friendly Design

Lithium iron phosphate chemistry provides a safer, non-toxic alternative to lead-acid batteries, with no harmful heavy metals or gases released during operation.

Perfect for solar energy storage, backup power, and off-grid solutions, the Renogy 24V 50Ah Lithium Iron Phosphate Battery is built to deliver reliable and sustainable power for all your energy needs.

Specifications:

• Battery Type: Lithium Iron Phosphate
• Rated Capacity: 50 Ah
• Nominal Voltage: 25.6 V
• Voltage Range: 20-29.6V
• Energy: 1280Wh

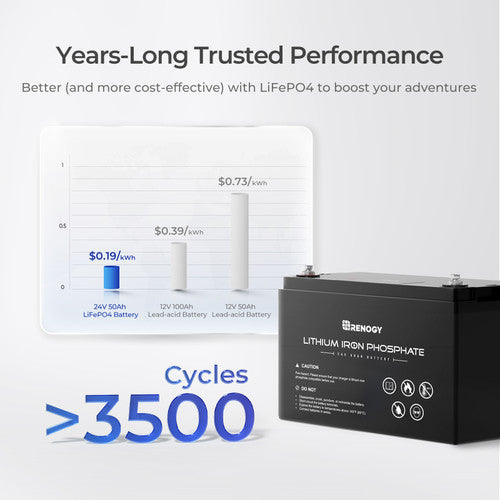

• Cycle Life(0.5C,25℃): 3500 Cycles at 80% DOD
• Connection Method: Parallel (Up to 8)
• Automatically Self-heating Function: No

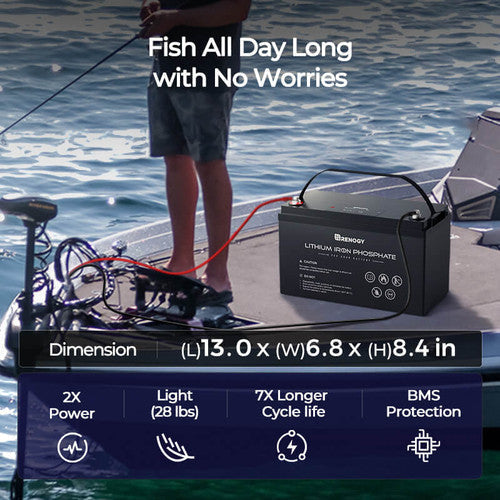

• Dimensions: 13.0 x 6.8 x 8.4 inch (330 x 172 x 214 mm)
• Weight: 28.0 lbs. /12.7kg
• Protection Rate: IP65
• Housing Material: ABS
• Charging Parameters
• Charge Voltage: 29.0 ± 0.2V
• Maximum Continuous Charge Current: 50A
• Charge Cut-off Voltage: 29.2V

• Maximum Continuous Discharging Current: 50A
• Discharge Cut-off Voltage: 20V

• Standard Operation Temperature: 73.4 ± 9℉ / 23 ± 5℃
• Storage Temperature: -13°F~149°F (-25C~65°C)
• Charge Temperature: 32°F~113°F (0°C~55°C)
• Discharge Temperature: -4°F~140°F (-20°C~60°C)

What's in the Box:

1 x 24V 50Ah Lithium Iron Phosphate Battery

2 x Long Terminal Bolts (2 x M8 x 1.25 x 20 mm)
