Renogy 12V 100Ah Smart lithium battery & RENOGY one core &BT-2 Module

Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery & BT-2 & Renogy ONE Core

Experience unmatched power management with the Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery bundle, including the BT-2 Bluetooth Module and Renogy ONE Core. Perfect for off-grid solar systems, RVs, and marine applications. This comprehensive package provides reliable energy storage, remote monitoring, and intelligent control, all in one seamless solution.

Long-Lasting Lithium Battery

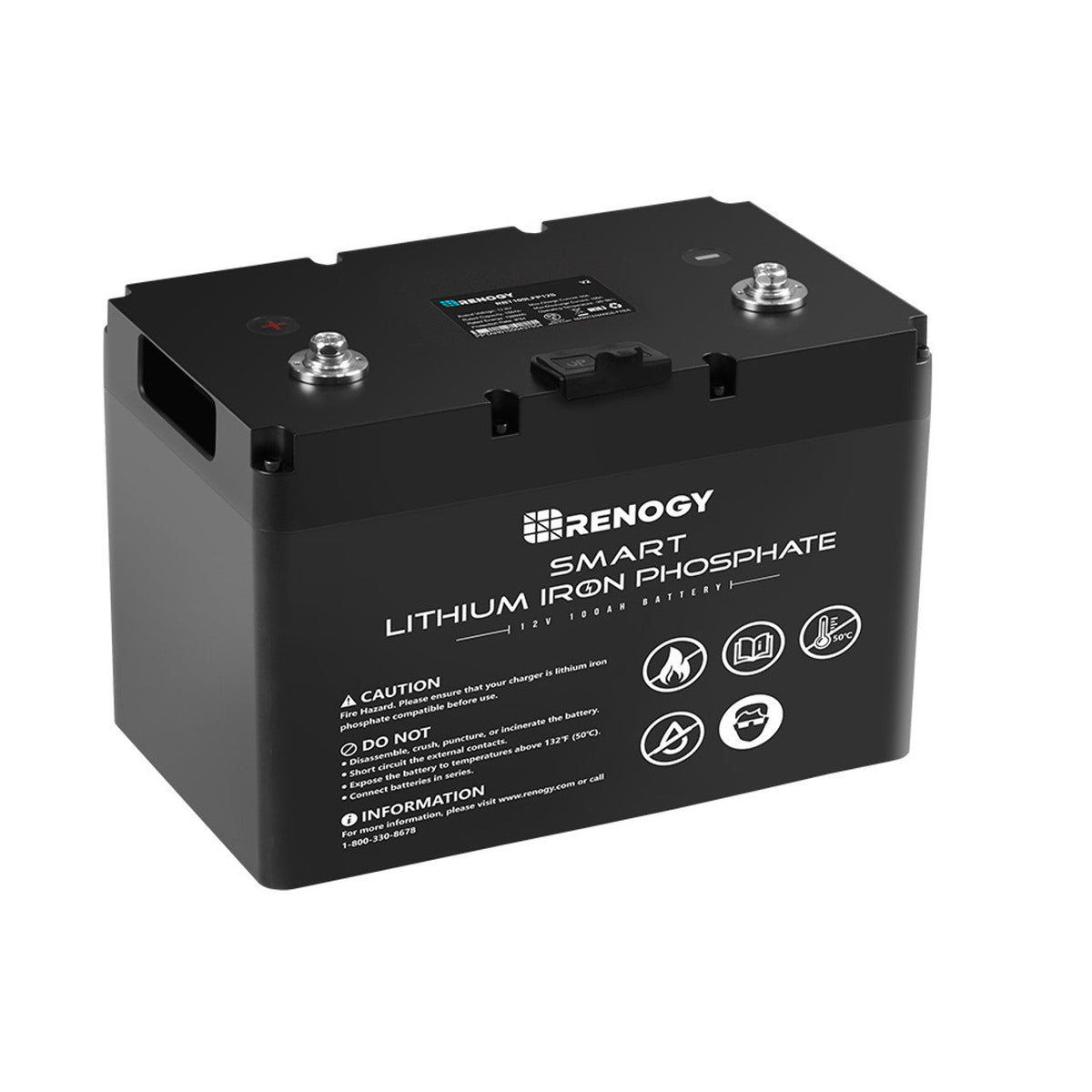

The 12V 100Ah Smart Lithium Iron Phosphate (LiFePO4) battery offers up to 4000 charge cycles, providing reliable power over its extended lifespan. This battery ensures high discharge rates, low self-discharge, and exceptional performance in a wide temperature range, making it a highly dependable energy source for all your off-grid needs.

Smart Battery Management System (BMS)

Equipped with an intelligent BMS, the battery protects against overcharging, over-discharging, overcurrent, and short circuits. This advanced system keeps your battery running safely and efficiently, ensuring optimal performance.

Real-Time Monitoring with BT-2 Bluetooth Module

Monitor your battery’s performance in real-time with the BT-2 Bluetooth Module. Connect via the Renogy DC Home app to track important data, including charge levels, voltage, and temperature. This gives you full control over your energy system from the convenience of your smartphone.

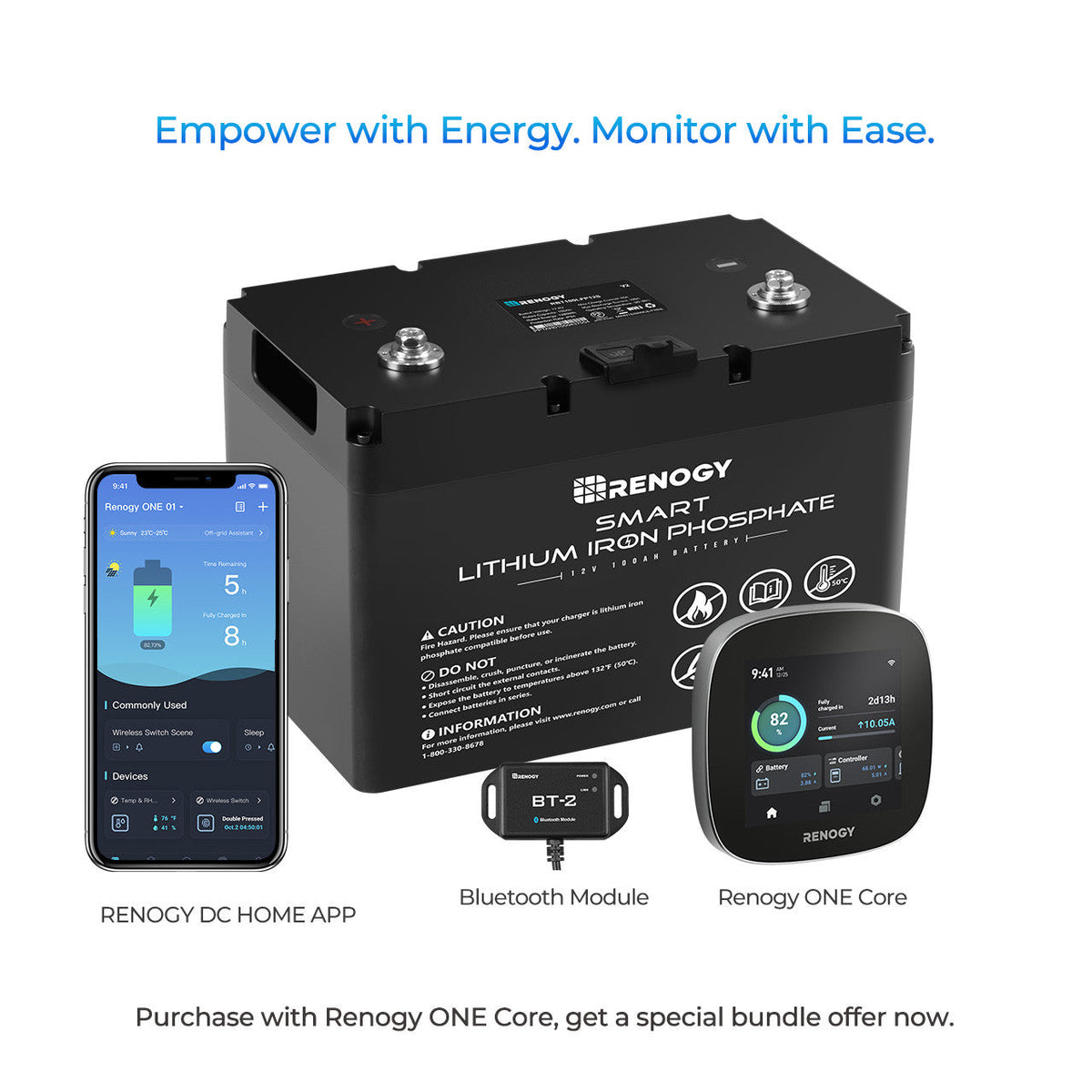

Centralized Control with Renogy ONE Core

Renogy ONE Core enhances system integration, allowing centralized control and monitoring of your entire off-grid system. Whether it’s power, lighting, or appliances, manage everything from one place with the intuitive interface. It's a perfect solution for smart home or vehicle applications.

High Energy Density

Compared to traditional lead-acid batteries, the Renogy Smart Lithium Iron Phosphate Battery offers a higher energy density, providing more power in a smaller, lighter form factor. Ideal for space-constrained environments like RVs, boats, or tiny homes.

Specifications:

Electrical Specifications

• Battery Type: Lithium Iron Phosphate
• Rated Capacity: 100AH
• Nominal Voltage: 12.8V
• Cycle Life(0.2C,25℃): 80%DOD 4000 Cycles
• Connection Method: Parallel
• Automatically Self-heating Function: No

Mechanical Specifications

• Dimensions: 11.4 x 6.8 x 7.4 inch /289 x 172 x 188 mm
• Weight: 26 lbs. / 11.8 kg
• Protection Rate: IP54

Charging Parameters

• Charge Voltage: 14.4V
• Maximum Continuous Charging Current: 50 A
• Discharging Parameters
  Maximum Continuous Discharging Current: 100 A

Temperature Parameters

• Standard Operation Temperature: 25℃±5℃
• Storage Temperature: -13~149℉ / -25~65℃
• Charge Temperature: 32~131°F/ 0~55°C
• Discharge Temperature: -4~140°F/ -20~60°C

Communication Port

• Built-in Bluetooth: No
• Communication Port: RJ45 (RS485 Protocol)

Accessories

• M8 Bolts: x2
• Activation switch: x1
• Warranty: Prorated warranty: 5-year
• Certifications: UN38.3, MSDS, CE, FCC, PSE, UL (Battery Cell), TUV (Battery Cell): Yes

What's in the Box:

1 x 12V 100Ah Smart Lithium Iron Phosphate Battery

1 x BT-2 & Renogy ONE Core

1 x Activation switch and bolts
