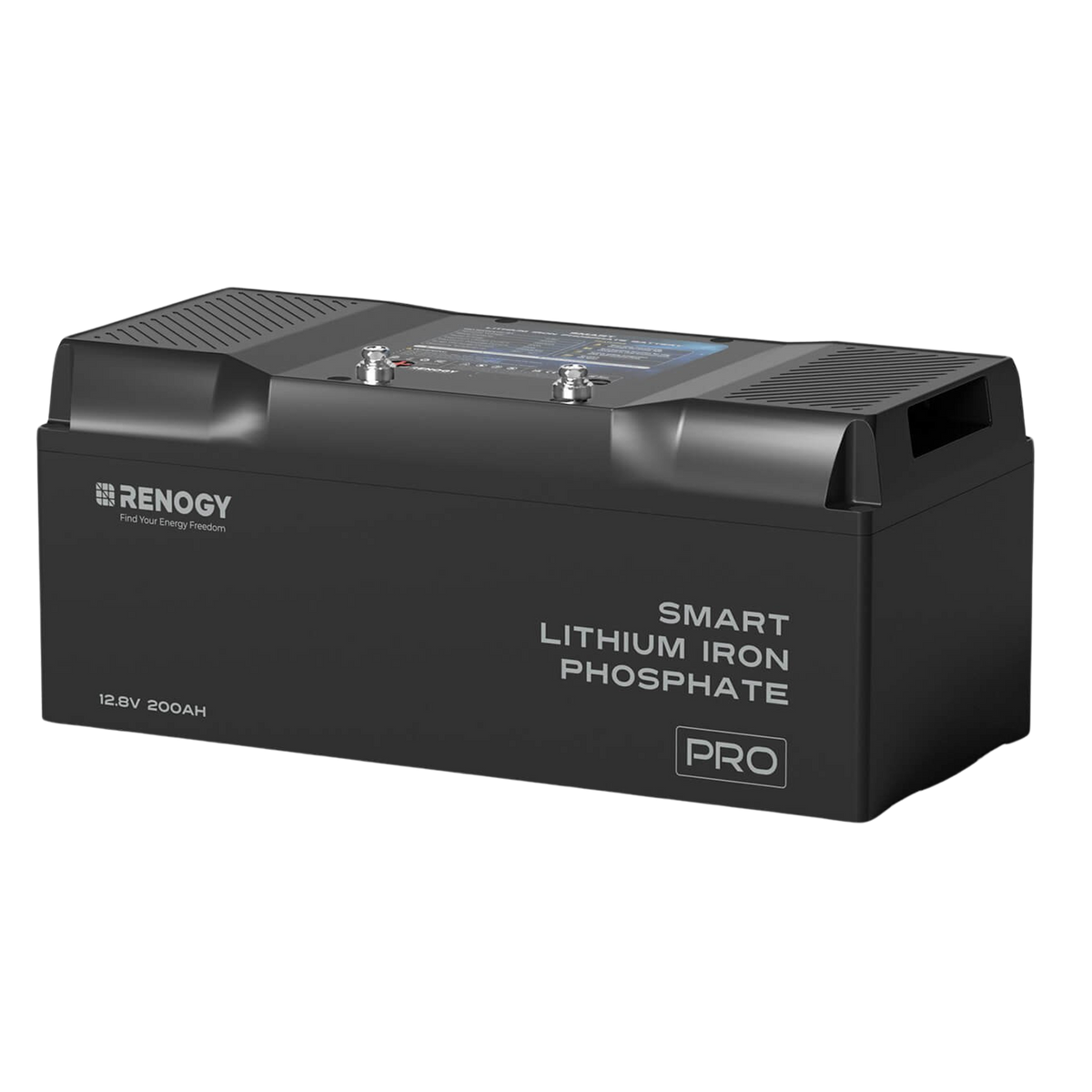

RENOGY (12.8V 200Ah pro series) smart lithium batteries with BT and self-heating function

RENOGY (12.8V 200Ah pro series) smart lithium batteries with BT and self-heating function

The Renogy 12.8V 200Ah Pro Series Smart Lithium Iron Phosphate Battery is perfect for those who need long-lasting and reliable power for off-grid living, RVs, or marine use. This battery is built with advanced features that make it stand out from traditional batteries.

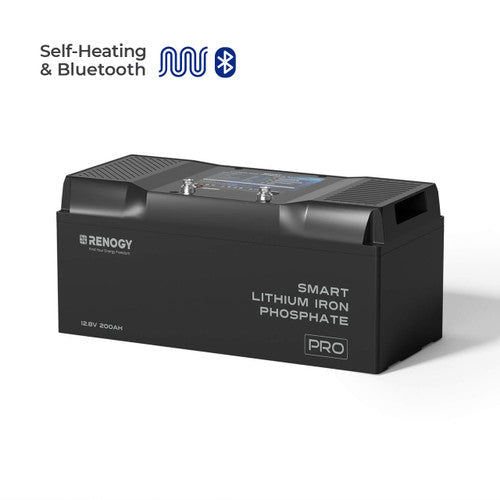

Self-heating Function

This feature ensures the battery performs well even in cold climates. When temperatures drop, the self-heating mechanism kicks in, warming the battery so it can continue to deliver efficient power without interruptions.

Bluetooth Monitoring

Stay in control of your battery’s performance with the built-in Bluetooth monitoring system. By connecting the battery to the Renogy DC Home app on your smartphone, you can easily track battery levels, charge status, and overall safety from a distance, making it convenient to manage your power needs.

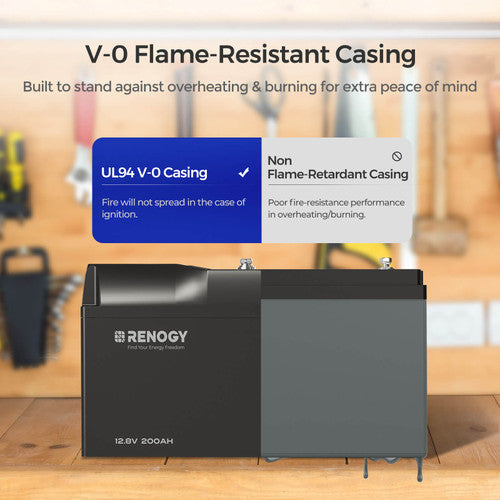

Fireproof Shell (Level 94v-0)

Safety is a top priority with this battery, which is built with a UL94 V-0 fire-retardant casing. This fireproof shell offers extra protection, ensuring that the battery operates safely, even under stressful or high-temperature conditions.

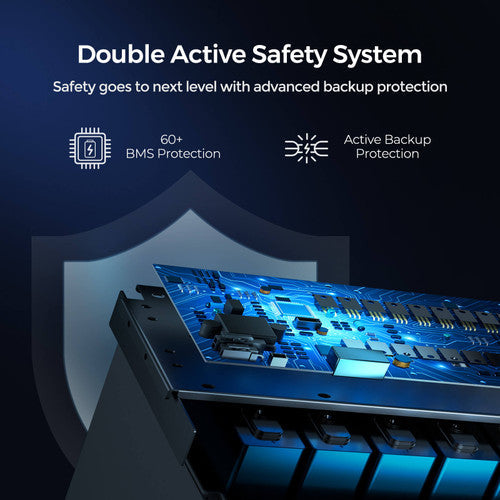

Battery Management System (BMS)

The built-in BMS ensures the battery operates safely and efficiently by protecting it from overcharging, over-discharging, short circuits, and overheating. This system also balances the cells, which improves the battery's longevity and maximizes its overall efficiency.

Expandable System

This battery allows users to connect multiple batteries in parallel. This makes it easy to increase capacity when necessary, which is ideal for larger power setups or extended off-grid living.

Specifications:

• Battery Type: Lithium Iron Phosphate
• Nominal Voltage: 12.8V
• Rated Capacity: 200Ah (0.5C, 25℃)
• Voltage Range: 10V to 14.8V
• Maximum Charge Current: 200A
• Maximum Discharge Current: 200A
• Peak Discharge Current: 270A@30s
• Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
• Charge Temperature Range: -4°F to 131°F (-20°C to 55°C)
• Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)
• Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)
• Operation Relative Humidity: 10% to 95%
• Connection Method: Parallel (Up to 8)
• Communication Protocol: Bluetooth
• Terminal Bolt Size: Terminal Bolt: M8 x 1.25 x 12 mm Long Terminal Bolt: M8 x 1.25 x 16 mm
• Recommended Terminal Torque: 70.8 inch·lbs / 8 N·m
• Housing Material: PC/ABS

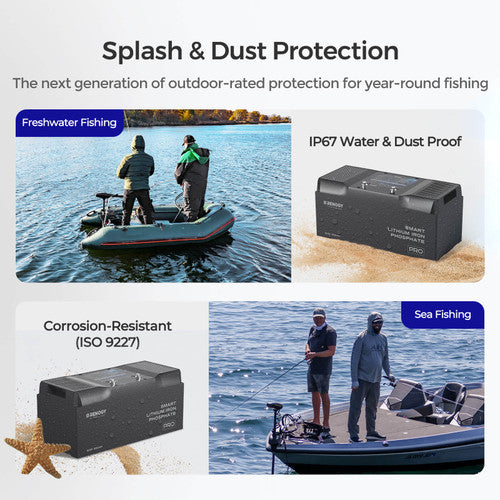

• Protection Rating: IP67
• Flame Retardancy: UL94 V-0
• Dimensions: 18.4 x 8.4 x 8.2 in (467 x 212 x 208 mm)
• Weight: 50.7 lb (23 kg)

What's in the Box:

• 1 x Pro - 12V 200Ah Lithium Iron Phosphate Battery
• 2 x Terminal Bolts (M8 x 1.25 x 12 mm)
• 2 x Long Terminal Bolts (M8 x 1.25 x 16 mm)
• 1 x User Manual
