Mango Power Solar Generator Kit

Mango Power Solar Generator Kit

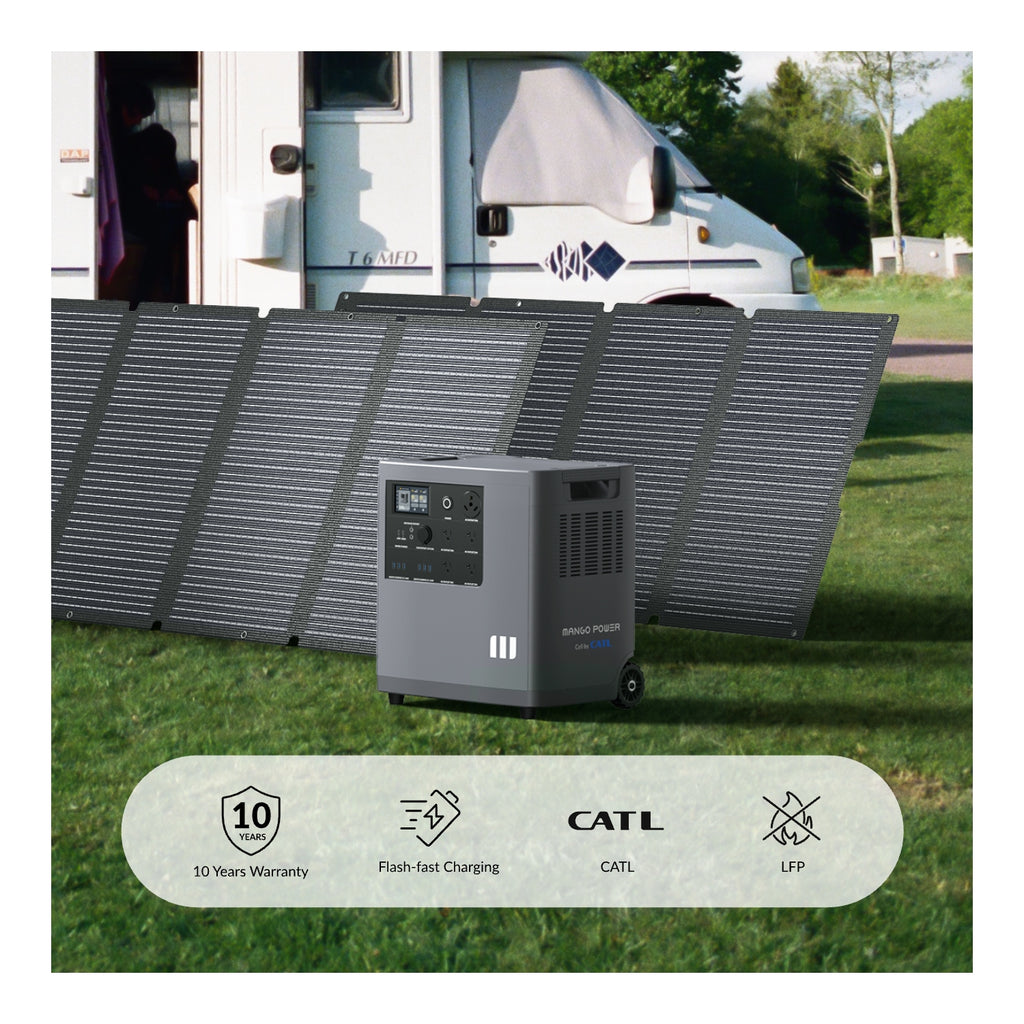

Mango Power Solar Generator Kit is a portable, eco-friendly power solution designed for home backup, camping, RVs, outdoor adventures, and backup power planning. The kit pairs the Mango Power E Portable Power Station with Solar Move 200W foldable solar panels, providing reliable renewable energy wherever you need it.

Featuring a 3.5kWh LiFePO₄ battery, 3,000W pure sine wave AC output (6,000W surge), and support for up to 2,000W solar input, it can power everything from smartphones and laptops to refrigerators, power tools, and other household appliances. The Solar Move 200W panels utilize high-efficiency monocrystalline cells with 22–23% conversion efficiency, durable ETFE lamination, IP67 waterproof protection, and a foldable design with integrated kickstands for quick setup and easy transport.

With fast AC charging, expandable battery capacity, smart Wi-Fi and Bluetooth app control, and multiple AC, USB, DC, and RV outputs, the Mango Power Solar Generator Kit with Solar Move 200W delivers dependable, clean, and versatile power for both everyday use and off-grid living.

Highlights:

• 3.5kWh LiFePO₄ battery with long-lasting CATL battery cells
• 3,000W pure sine wave AC output with 6,000W surge capacity
• Supports up to 2,000W solar input for fast renewable charging

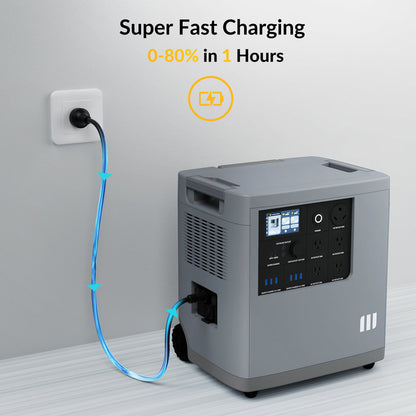

• Fast AC recharging in as little as 1.5 hours (with optional fast-charging cable)
• Expandable battery capacity with compatible Mango Power expansion batteries
• Multiple output options, including AC, USB-A, USB-C, DC, and RV outlets
• Smart app control via Wi-Fi and Bluetooth for remote monitoring and management
• Up to 6,000 battery life cycles for exceptional durability and longevity
• Clean, silent, and emission-free operation for indoor and outdoor use
• Ideal for home backup, RVs, camping, off-grid living, and backup power

Specifications:

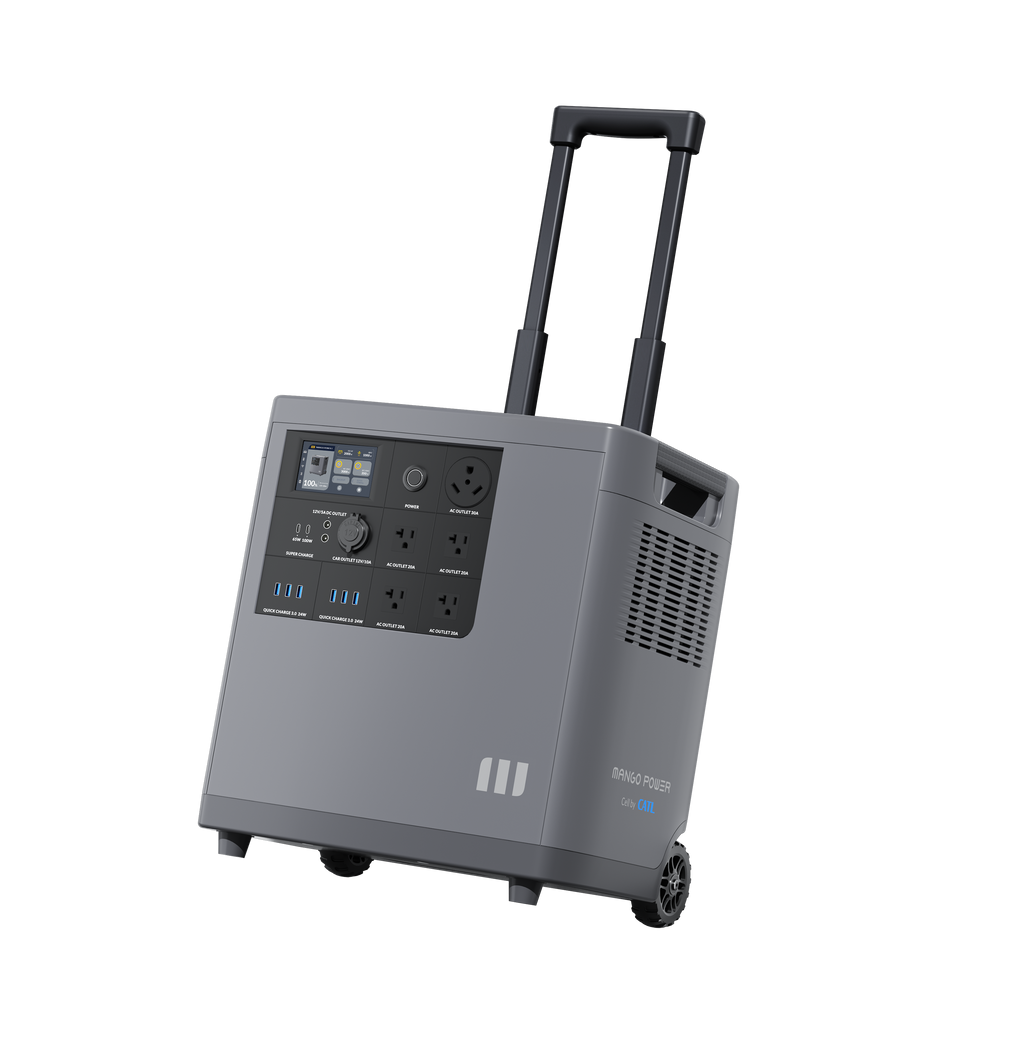

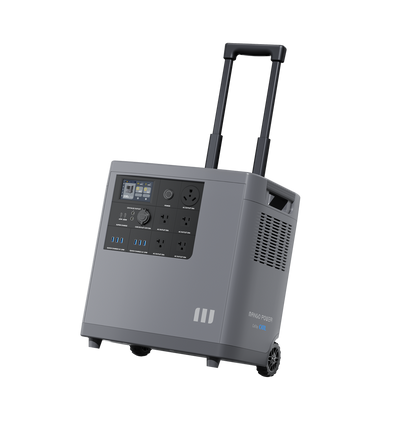

MANGO POWER E

Capacity: 3533Wh

Solar Charging Input: Max 2000W (60V-150V)

AC Output: 4 x 20A, 3000W total

EV Charging Spot: Adapter needed

USB-A Output: 6 x QC 3.0 24W

Generator: Support

USB-C Output: 1 x PD 65W + 1 x PD 100W

Battery Chemistry: LFP

Car Power Output: 12V / 10A

Cycle Span: 6000 cycles to 70% capacity (@25 °C +0.5C/-0.5C)

DC5521 Output: 2x 12V / 5A

Connection: Wi-Fi. Bluetooth

AC RV Port: 30A

Net Weight: 100.1 lbs / 45.4kg

AC Charging Input: Max 3000W

Dimension: 17.8*13.6*19.4 in / 45.2*34.5*49.4 cm

SOLAR PANEL 200W

Rated Power: 200W

Nominal Voltage: 36V

Solar Cell Type: Monocrystalline Silicon

Cell Efficiency: Up to 23%

Cell Lamination: ETFE (Ethylene Tetrafluoroethylene)

Maximum Power Voltage (Vmp): 40.32V

Maximum Power Current (Imp): 4.96A

Open Circuit Voltage (Voc): 48V

Short Circuit Current (Isc): 5.23A

Solar Input Connector: MC4 Compatible

Waterproof Rating: IP67

Operating Temperature: -20°C to 60°C (-4°F to 140°F)

Recommended Operating Temperature: 25°C (77°F)

Folded Dimensions: 605 × 540 × 35 mm (23.8 × 21.3 × 1.4 in)

Unfolded Dimensions: 2270 × 540 × 25 mm (89.4 × 21.3 × 1.0 in)

Weight: 10.4 kg (22.9 lb)

Design: 4-fold portable design with 3 adjustable kickstands

Compatibility: Mango Power E, Mango Power Union, and other MC4-compatible solar generators

Warranty: 12 Months

What's in the Box:

1 × Mango Power E

2 × Mango Power Solar Move 200W / 36V Solar Panel

1 × Quick Start Guide

Connection cables

AC charging cables

User manuals

Warranty cards
