Mango Power Big Battery Solar Generator Kit

Mango Power Big Battery Solar Generator Kit

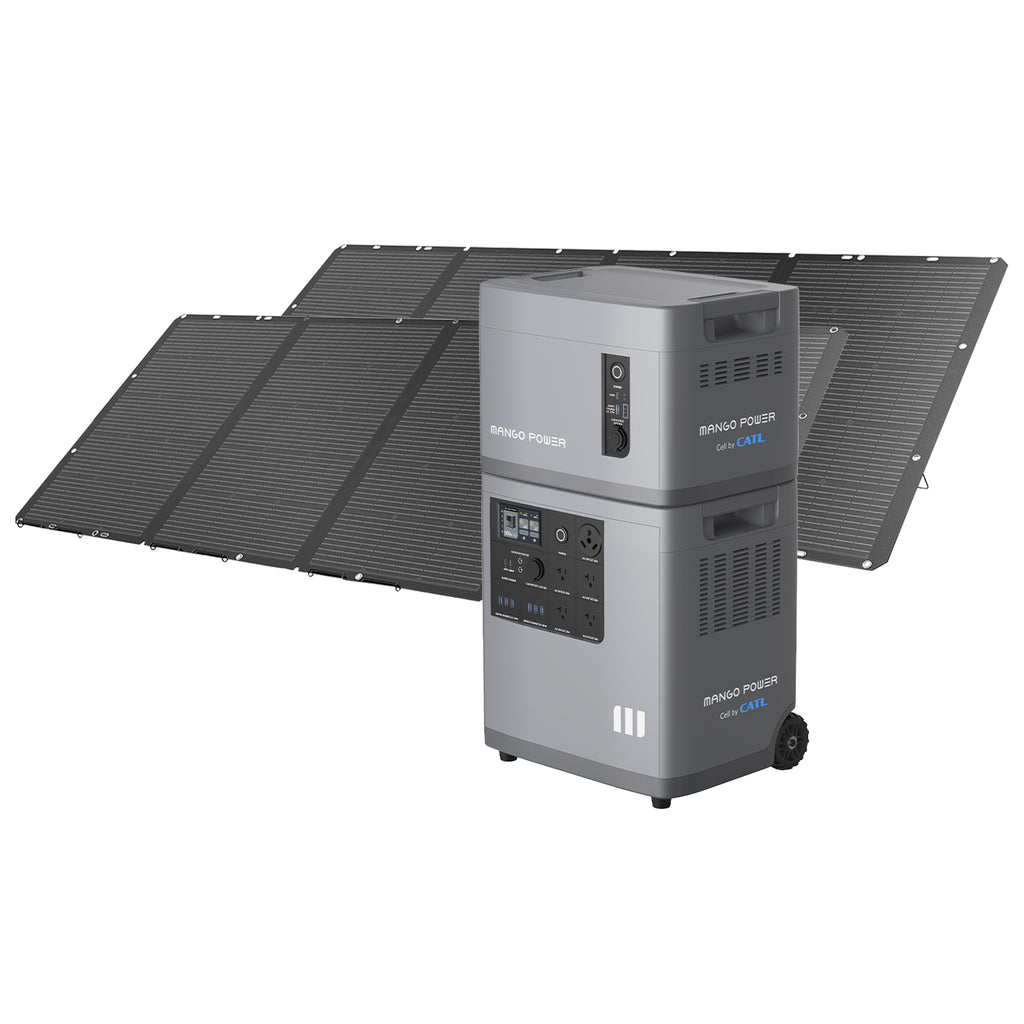

Mango Power Big Battery Solar Generator Kit is a high-capacity portable power system designed to deliver reliable backup power for homes, RVs, outdoor adventures, and off-grid living. The kit combines the Mango Power E Portable Power Station, an Extra Battery, and two 400W portable solar panels, providing an expanded 7kWh battery capacity and 3,000W continuous AC output to power household appliances and electronics for several days.

Featuring premium CATL LiFePO₄ (LFP) battery cells, the system offers up to 6,000 charge cycles, a 10-year warranty, and an expected lifespan of over 20 years. It supports up to 2,000W solar input, fast AC charging in as little as 1.5 hours (with the optional fast-charging cable), and includes multiple AC, USB, DC, and RV outputs for versatile power delivery.

With Wi-Fi and Bluetooth app control, expandable capacity, and optional 240V split-phase capability using the mSocket Pro accessory, the Mango Power Big Battery Solar Generator Kit provides a dependable and eco-friendly energy solution for backup power and portable power needs.

Highlights:

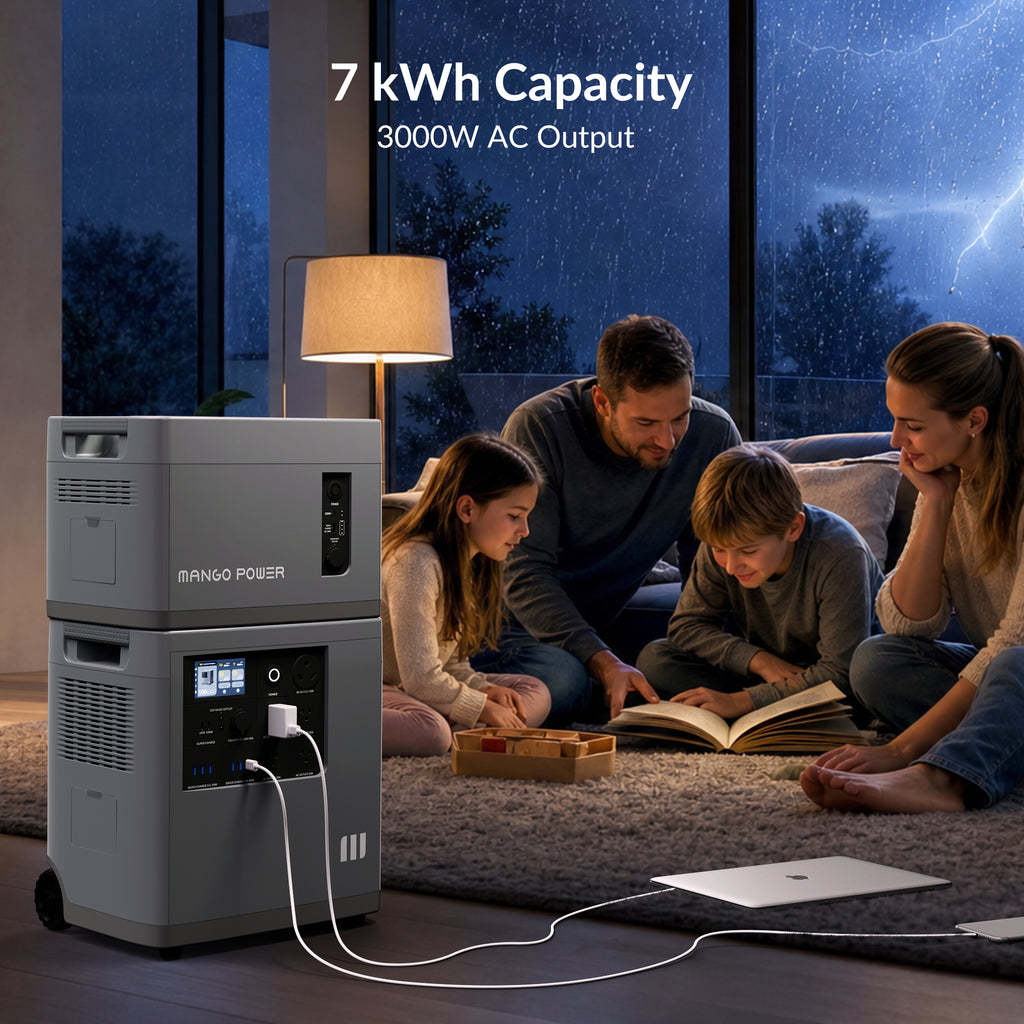

• 7kWh Capacity, Providing 2-4 Days of Essential Backup Power
• 3kW AC Output, 2kW Solar input

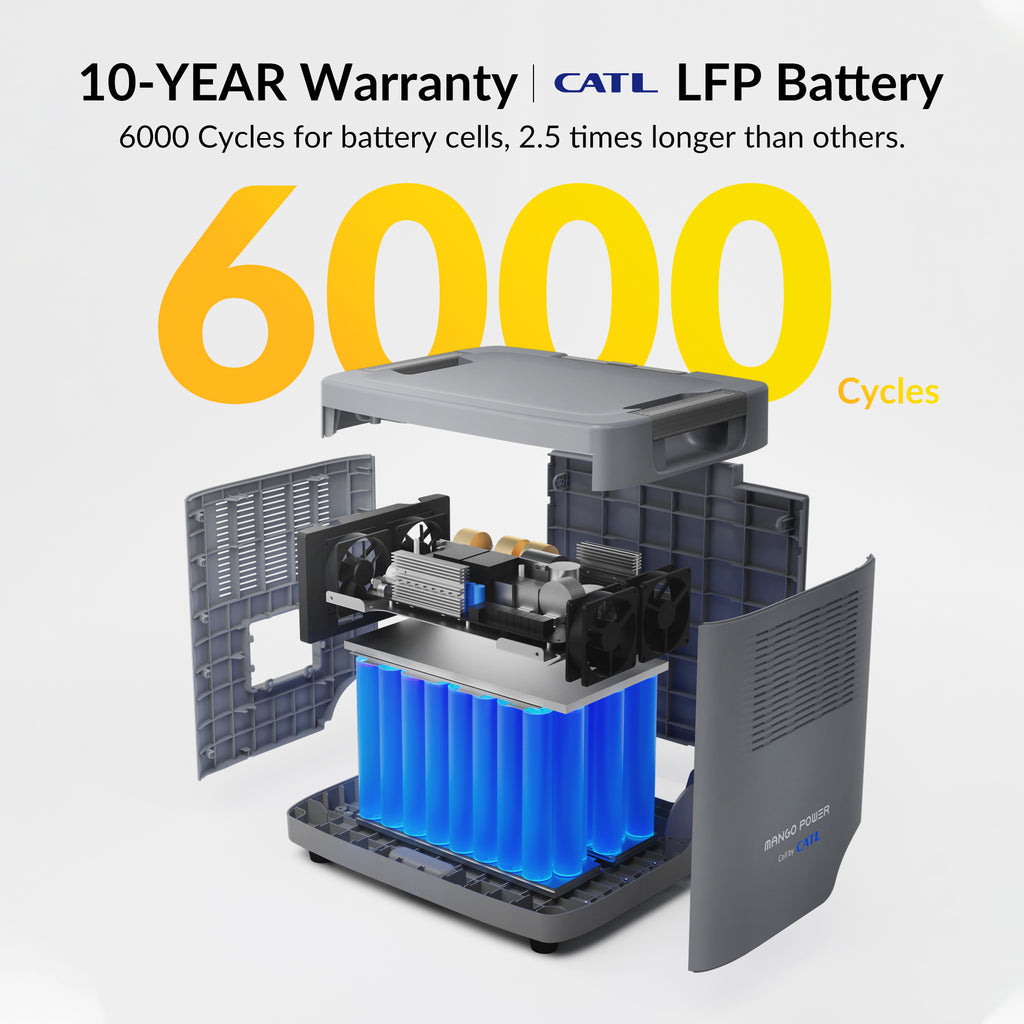

• CATL LFP Battery with a 10-Year Warranty
• 6,000 Cycles and Over 20 Years of Lifespan

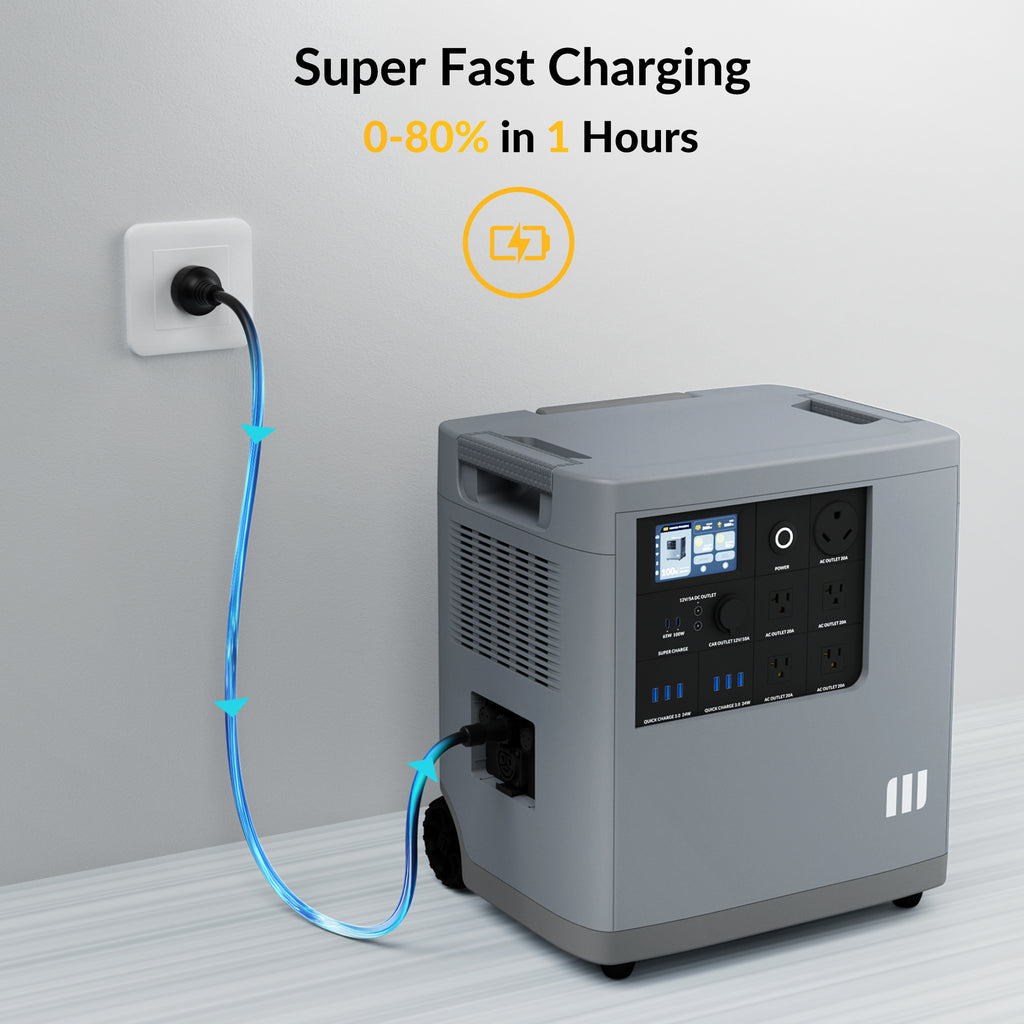

• Fast Charge: 1.5 Hours to Full Charge

Specifications:

MANGO POWER E

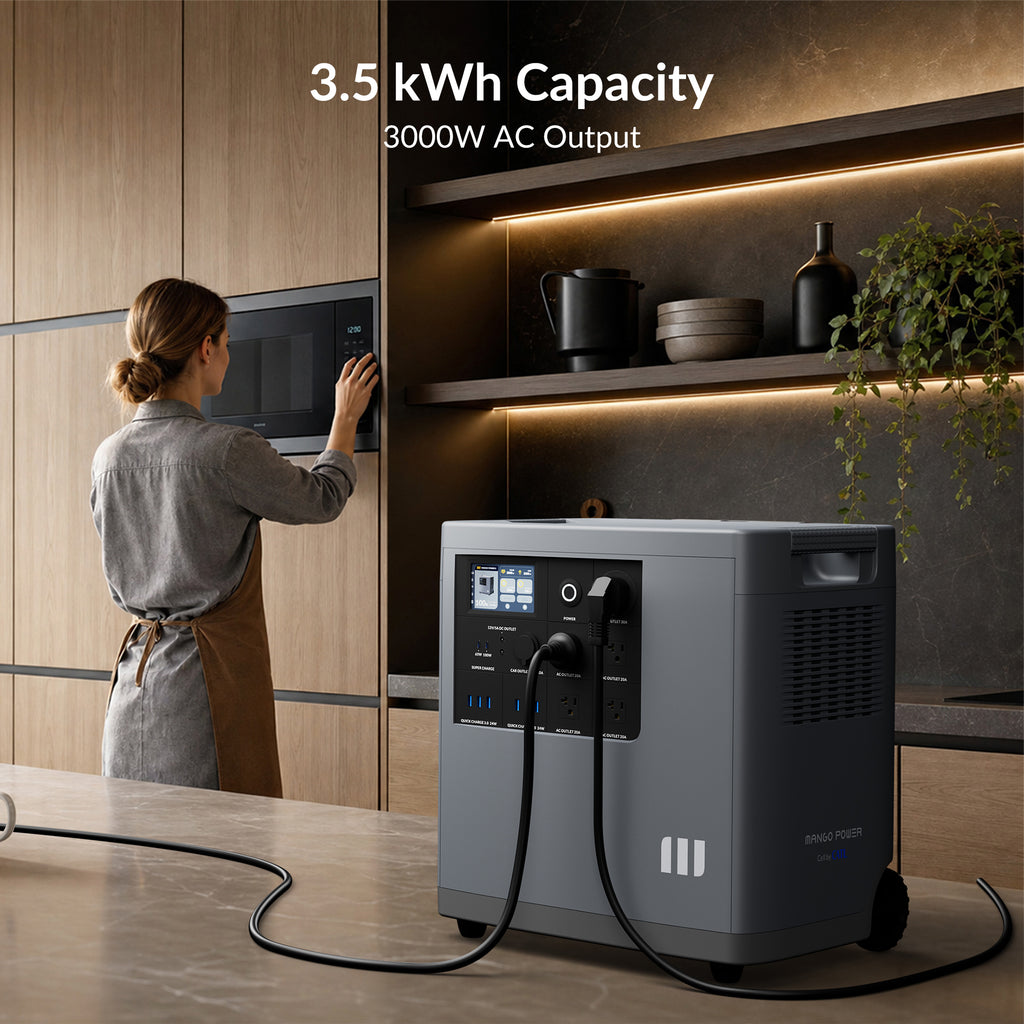

Capacity: 3533Wh

Solar Charging Input: Max 2000W (60V-150V)

AC Output: 4 x 20A, 3000W total

EV Charging Spot: Adapter needed

USB-A Output: 6 x QC 3.0 24W

Generator: Support

USB-C Output: 1 x PD 65W + 1 x PD 100W

Battery Chemistry: LFP

Car Power Output: 12V / 10A

Cycle Span: 6000 cycles to 70% capacity (@25 °C +0.5C/-0.5C)

DC5521 Output: 2x 12V / 5A

Connection: Wi-Fi. Bluetooth

AC RV Port: 30A

Net Weight: 100.1 lbs / 45.4kg

AC Charging Input: Max 3000W

Dimension: 17.8*13.6*19.4 in / 45.2*34.5*49.4 cm

E Expansion Battery

Battery Capacity: 3,533Wh (3.53kWh)

Battery Chemistry: CATL LiFePO₄ (LFP)

Cycle Life: 6,000 cycles to 70% capacity (@25°C, ±0.5C)

Expandable Capacity: Increases a Mango Power E from 3.53kWh to 7.06kWh

Compatibility: Mango Power E Portable Power Station

Battery Management System (BMS): Over-voltage, overload, over-temperature, short-circuit, low-temperature, low-voltage, and overcurrent protection

Connection Method: Direct plug-and-play connection using the included E+ Connection Cable

Installation: Stackable design that attaches directly beneath the Mango Power E

Operating Temperature: Designed for the same operating environment as the Mango Power E system

Warranty: 10-year CATL battery cell warranty

400W SOLAR PANEL

Model: Solar Move

Max Power (Pmax): 400W

Open-Circuit Voltage (Voc): 40.8V

Short-Circuit Current (Isc): 12.36A

Max Load Voltage (Vmp): 32.4V

Max Load Current (Imp): 11.7A

Conversion efficiency: 23%

Cell Type: Monocrystalline silicon cell

Output Interface: MC4

Operating Temperature: -20°C～60°C(-4°F～140°F)

Net Weight: 7.8kg(17.2lbs)/±5 %

Unfolded Size: 2460*970mm/±5 96.85*38.19in/±5 %

Folded Size: 972 *620*65mm/±5 % 38.27*24.41*2.56in/±5 %

Warranty: 18 Months

What's in the Box:

1 × Mango Power E

1 × E Expansion Battery

2 × Mango Power Ultra-Light Portable Solar Panel 400W

Connection cables

AC charging cables

User manuals

Warranty cards
