Core Mini - DuoHeat Tech 12V 100Ah Lithium Iron Phosphate Battery

Core Mini - DuoHeat Tech 12V 100Ah Lithium Iron Phosphate Battery

Powerfully compact and engineered for the extremes, the Core Mini DuoHeat 12V 100Ah LiFePO4 Battery is built to thrive where others freeze. It packs serious performance in a footprint 45% smaller than traditional Group 22NF batteries and is designed for tight spaces and extreme conditions, making it the ultimate power solution for RVs, cabins, marine setups, and off-grid systems.

Built with dual internal heating pads delivering 110W, the Core Mini heats up to operating temperature 40% faster—making cold-weather starts smooth and stress-free, even in sub-zero environments. Its rugged IP65-rated casing and wide operating range from -22°F to 131°F mean it’s ready for all-season performance, rain or shine.

At the heart of the Core Mini lies Grade-A LiFePO4 cells, offering over 5000 cycles at 80% depth of discharge, backed by a robust 100A BMS and 25+ advanced safety features for reliable, secure energy on the move. With a 5-year warranty and certifications including FCC, CE, and RoHS, this smart, space-saving powerhouse delivers confidence, endurance, and efficiency, no matter where your adventures take you!

Highlights:

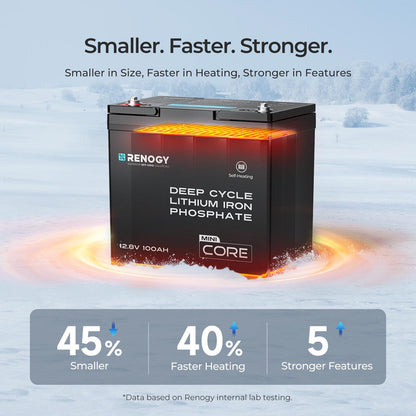

•    Group 22NF size, 45% smaller than similar batteries
•    Dual heating pads provide 110W, heating 40% faster

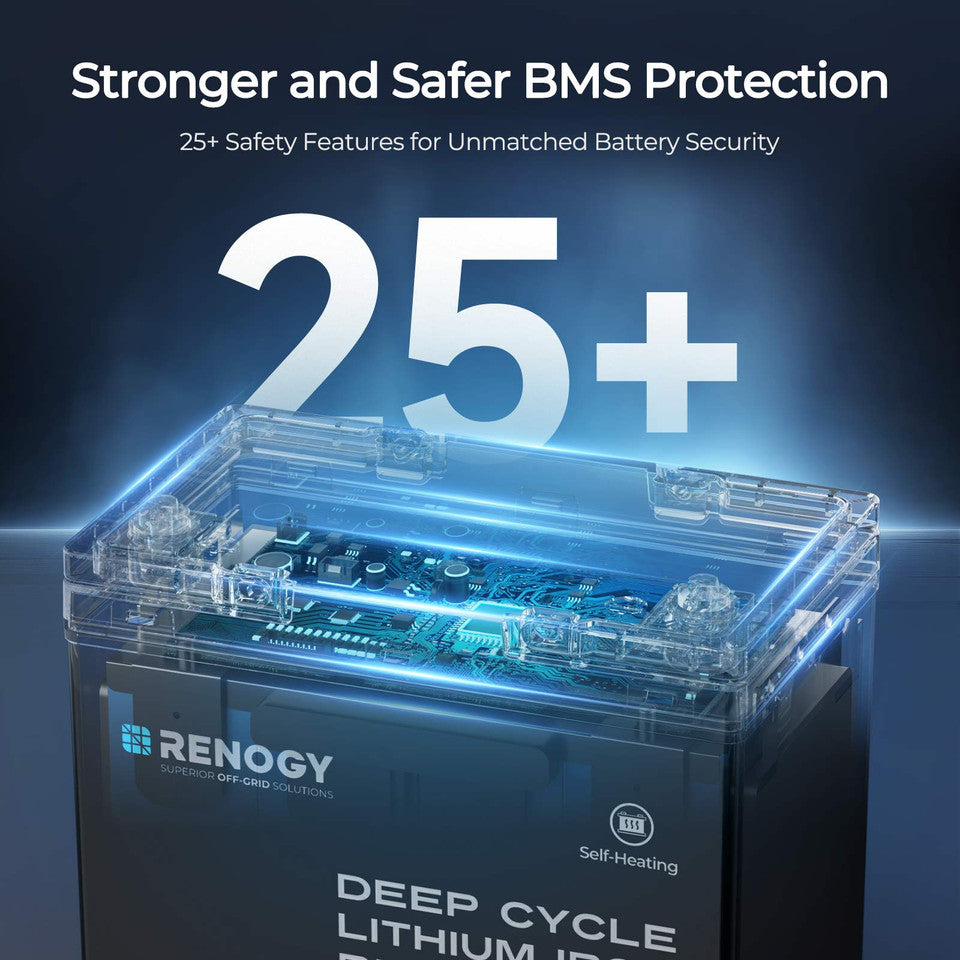

•    25+ safety features and 100A BMS ensure secure operation

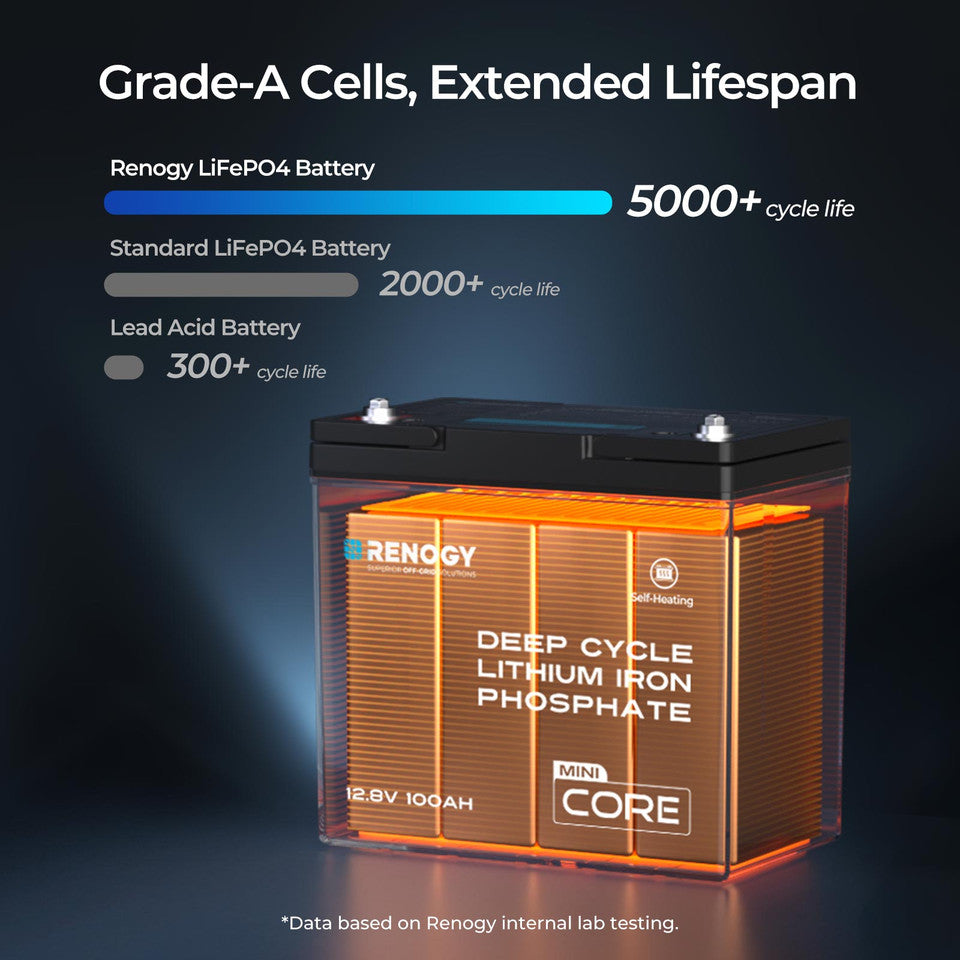

•    Grade-A LiFePO4 cells deliver 5000+ cycles at 80% DOD
•    5-year warranty with certifications like FCC, CE, ROHS and more
•    Operates from -22°F to 131°F with weatherproof IP65 casing

SPECIFICATIONS:

General
Battery Type: Lithium Iron Phosphate
Voltage: 12V
Rated Capacity: 100Ah (0.5C, 25℃)
Voltage Range: 10V to 14.6V
Cycle Life (0.5C, 77°F/25°C): 5000 Cycles (80% DOD)

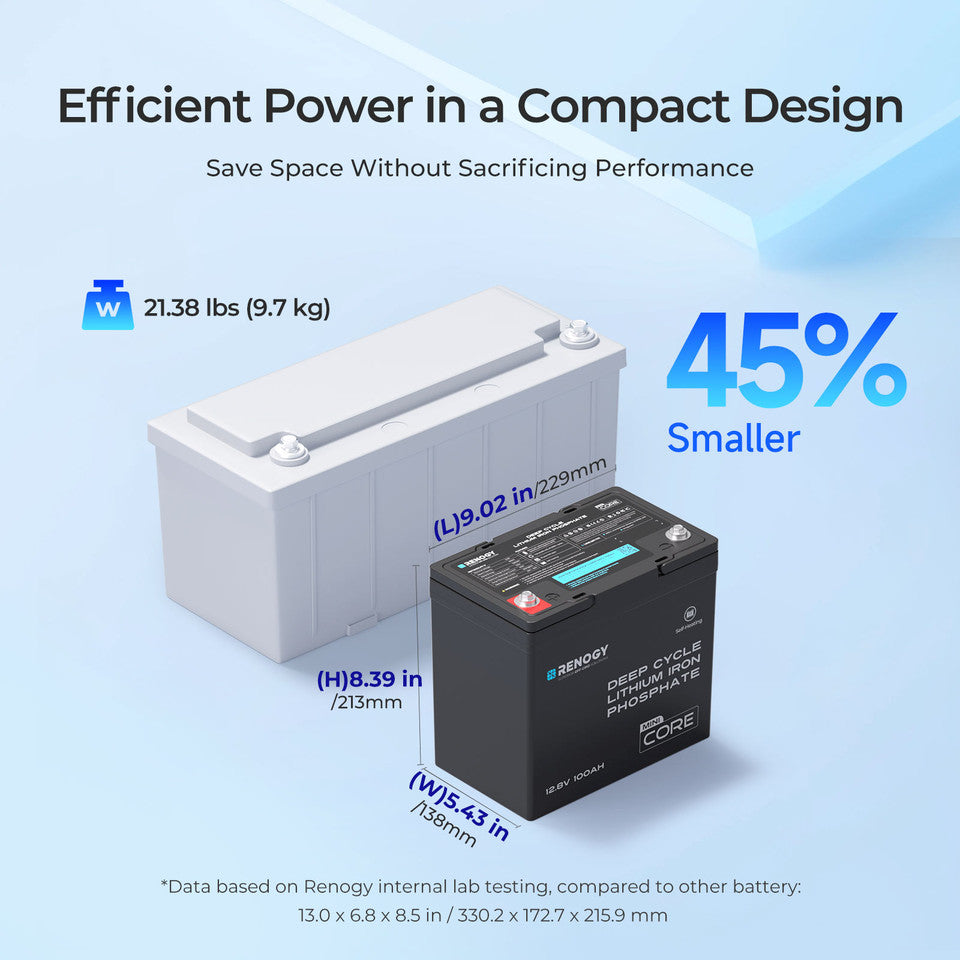

Dimension: 9.02 × 5.43 × 8.39 in (229 × 138 × 213 mm)
Weight: 21.38 lbs (9.7 kg)
Connection Method: Series & Parallel (up to 4S4P)
Terminal Bolt Size: M8 x 1.25 × 12 mm
Recommended Terminal Torque: 53.1 inch-lbs to 70.8 inch-lbs (6 N·m to 8 N·m)
Protection Rating: IP65 (Dust-tight & splash-resistant)
Certification: MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, UKCA

Operation Parameters
Charge Voltage: 14.6V
Maximum Continuous Charge Current: 100A
Maximum Continuous Discharge Current: 100A
Peak Discharge Current: 300A (for 10 seconds)

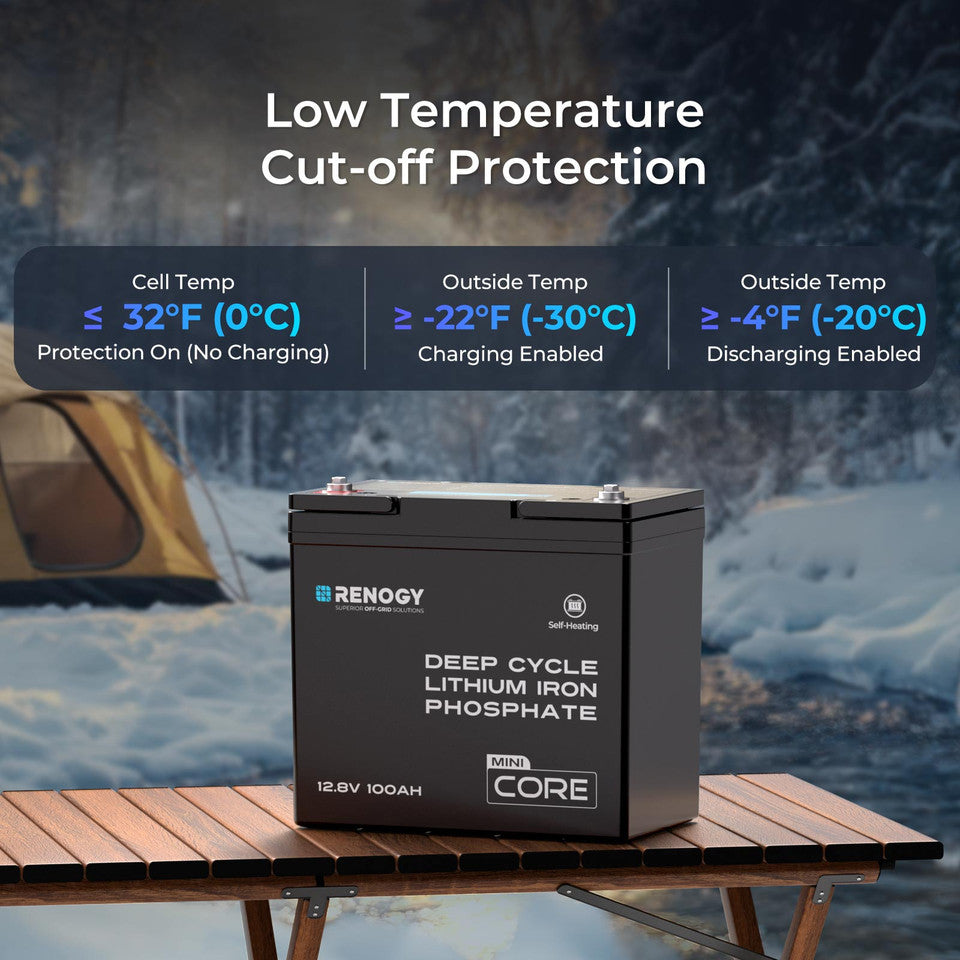

Charge Temperature Range: -22°F to 131°F (-30°C to 55°C) – Ideal for safe charging
Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)
Storage Temperature Range: -4°F to 113°F (-20°C to 45°C)
Operation Relative Humidity: 10% to 95%

Warranty
Material and Workmanship Warranty: 5 Years

WHAT’S IN THE BOX:

1 x Renogy Core Mini 12V 100Ah LiFePO4 Battery with DuoHeat Tech

2 x M8*1.25x12mm Long Terminal Bolts

2 x Insulation Sleeves

1 x User Manual
