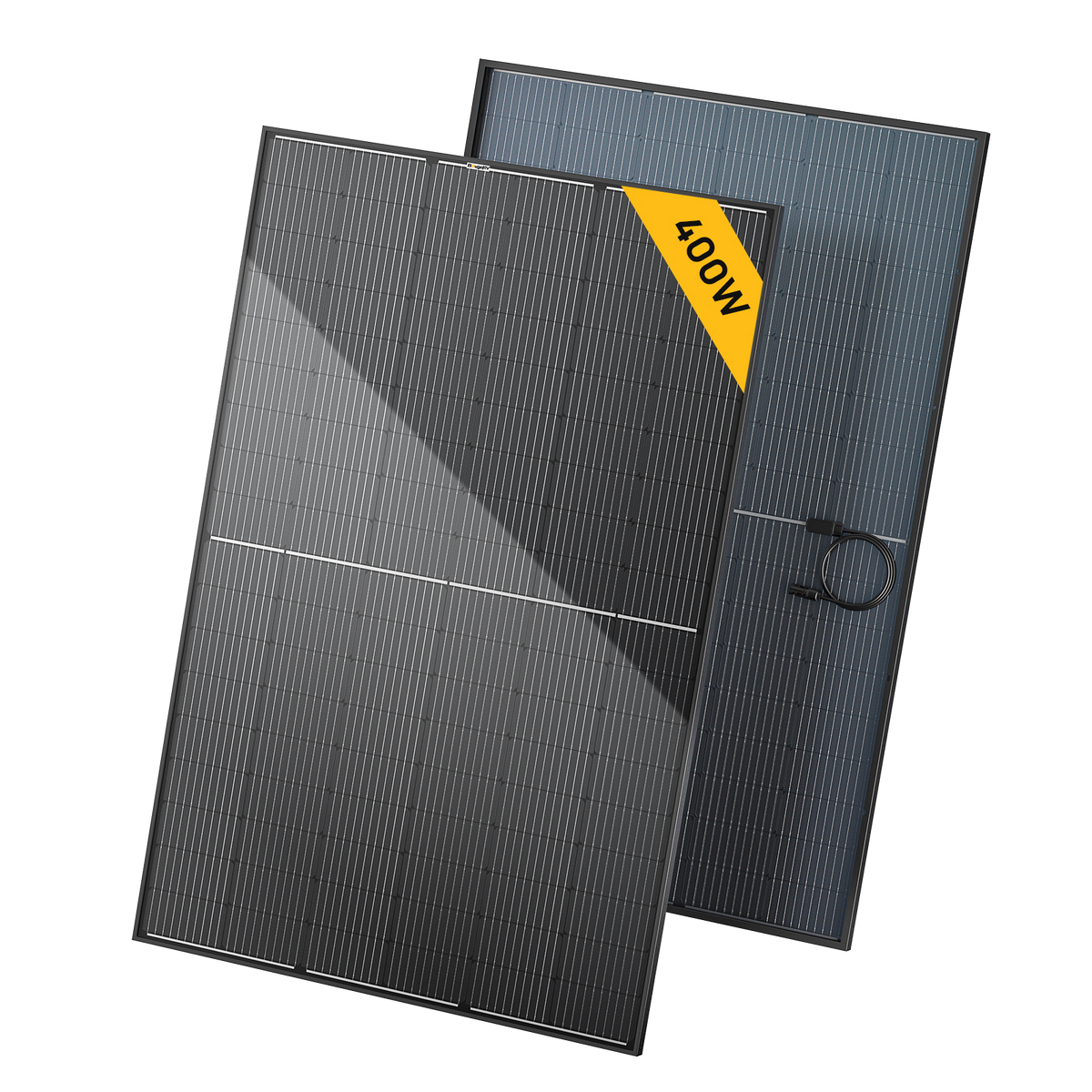

BougeRV 400 Watt Rigid Bifacial 10BB Mono Solar Panel

BougeRV 400 Watt Rigid Bifacial 10BB Mono Solar Panel

Give your power station a befitting boost with BougeRV's 400W Bifacial 10BB Mono solar panel, the greenest energy source with 10 busbars that collect and transmit exceptional electrical current significantly boosting your solar power supply.

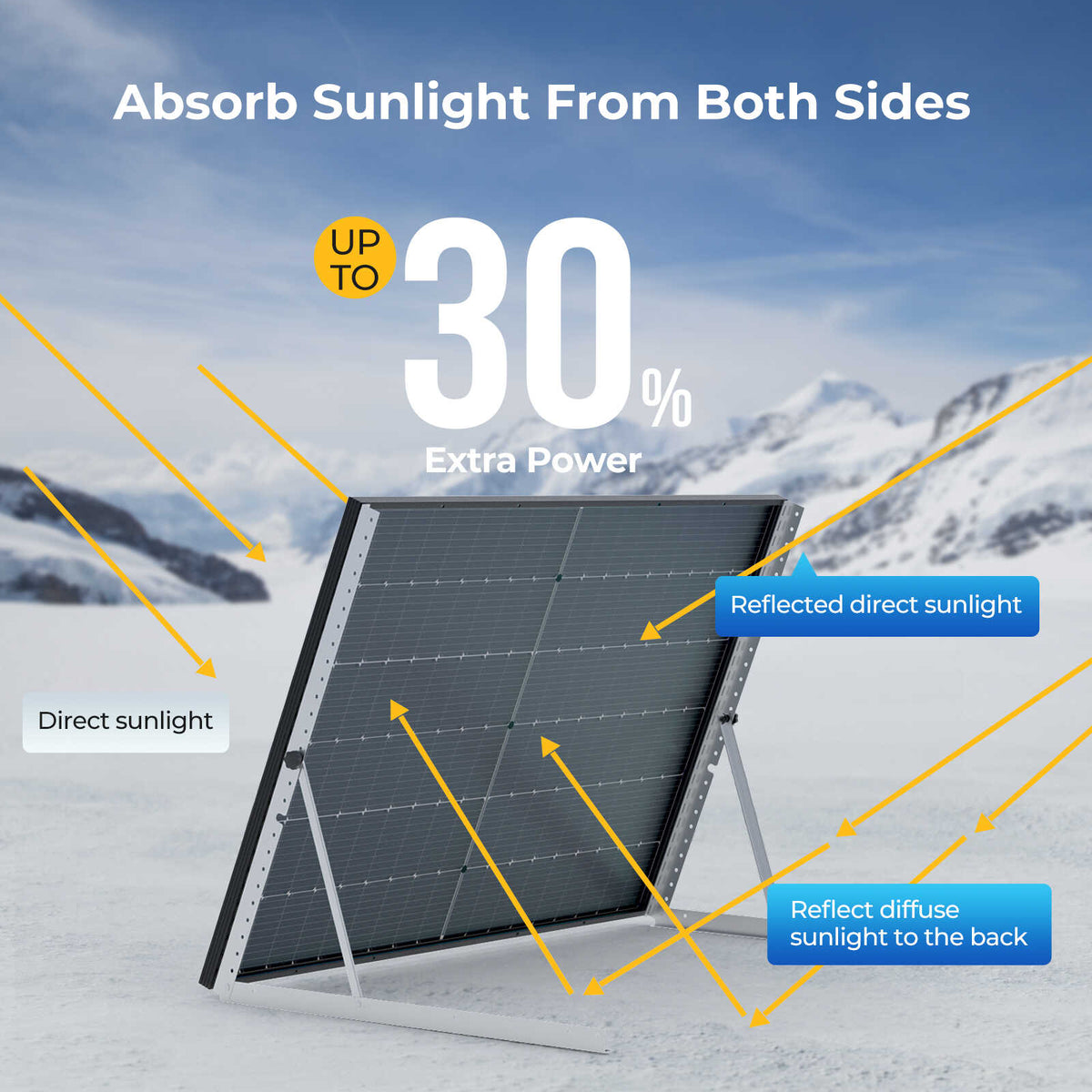

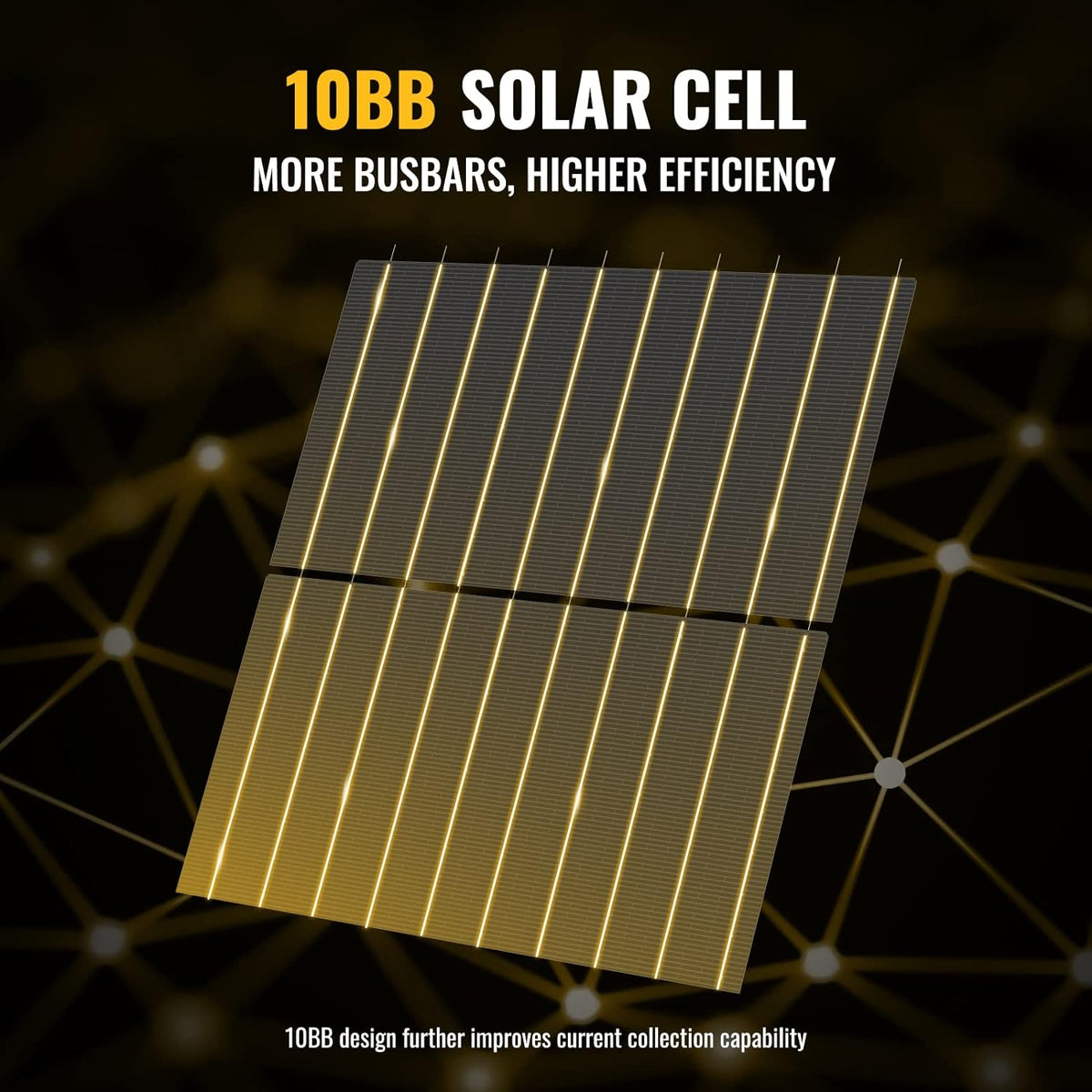

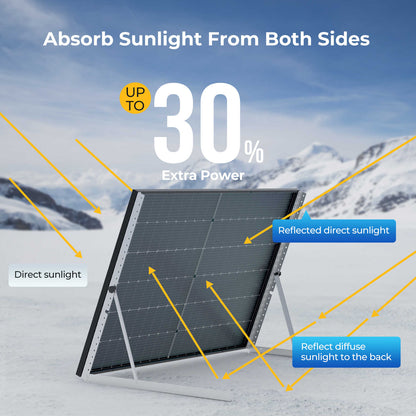

BIFACIAL 10BB CELL DESIGN

Unlike any solar panel seen before, BougeRV 400W bifacial panel uses high-level 10BB cell design and has an opaque back allowing this mono solar panel to absorb solar energy from both sides. Enhancing your output with increased cell receiving surface, it also absorbs refracted sunlight and diffused sunlight. Enjoy a remarkable 30% increase in your solar output.

A+ CLASS SOLAR CELL

Passing the strictest EL test for visible defects and micro cracks, BougeRV 400W solar cell is a A+ class cell providing more efficiency and stable output in low-light conditions.

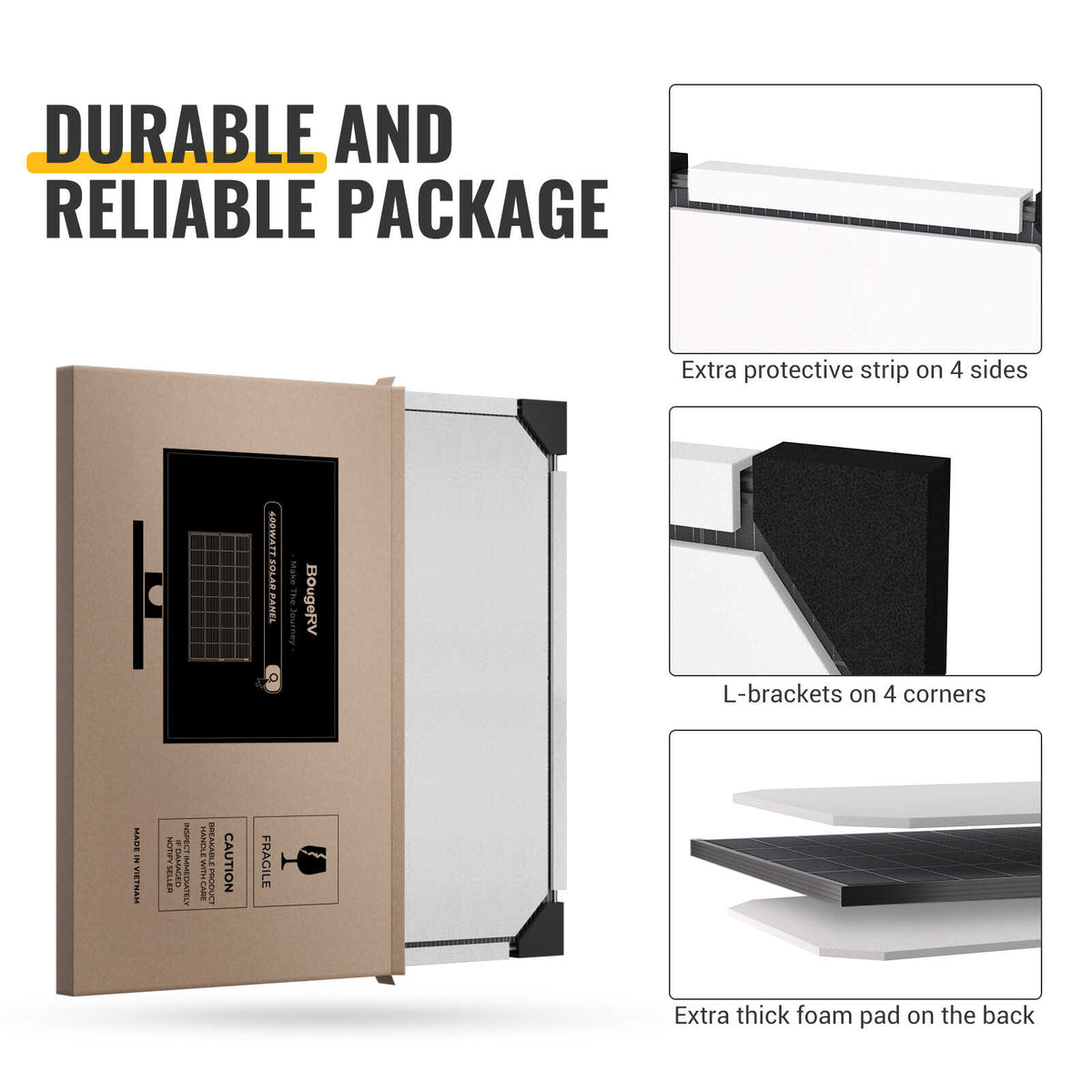

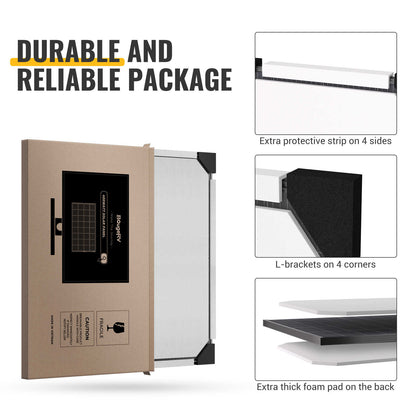

DURABLE & RELIABLE PACKAGE

Reaching you in top condition is our durable & reliable packaging that rightfully comes with extra protective strips on all sides, L-brackets on all corners and an extra thick foam pad on the back.

USER FRIENDLY INSTALLATION

BougeRV 400W bifacial mono solar panel features pre-installed diodes in the junction box, pre-attached pair of 3ft solar cables and pre-drilled holes that allows quick installation without any fancy tools. The junction box is IP67 waterproof rated to isolate environment particles and handle low-pressure water jets like a pro.

DURABLE & LONG LASTING

Designed with utmost quality, these rigid solar panels are built to withstand extreme weather conditions such as high winds (2400Pa) and snow loads (5400Pa) that allows for exceptional performance even in low-light conditions. The corrosion-resistant aluminum fabrication can handle the constantly changing outdoor and prolong the panels lifespan.

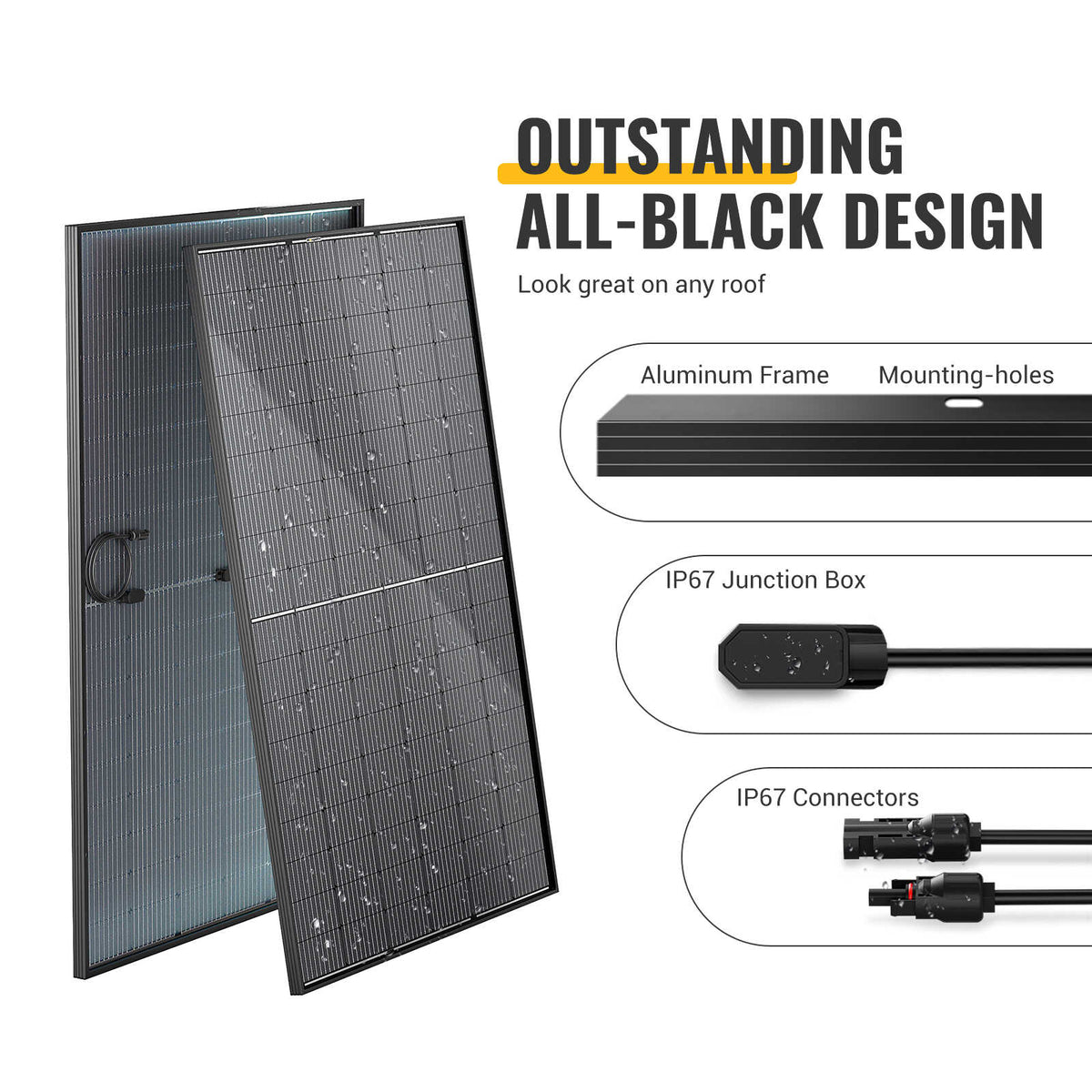

OUTSTANDING ALL BLACK DESIGN

A non-obtrusive design, the robust bifacial rigid 10BB mono solar panel's sleek black frame encases the Black TPT backsheet, EVA film, Monocrystalline Solar Cell, EVA film and the tempered glass in order and looks elegant on your rooftop.

Specifications:

Maximum Power (W): 400±5% W

Open Circuit Voltage Voc (V): 37.1±5% V

Max Power Voltage Vmp (V): 31±5% V

Max Power Current Imp (A): 12.9±5% A

Short Circuit Current Isc (A): 13.8±5% A

Solar Cells Efficiency: 23%

Warranty Description: 10 years product warranty and 25-years power warranty

Dimensions: 67.9 x 44.6 x 1.4 in

Weight: 45.21 lb

Application Class: Class A

Max Static Load (front): 2400 Pa

Max Static Load (back): 2400pa

Series Fuse Rating: 25A

What's in the Box:

1 x 400 Watt Rigid Bifacial 10BB Mono Solar Panel

1 x User Manual
