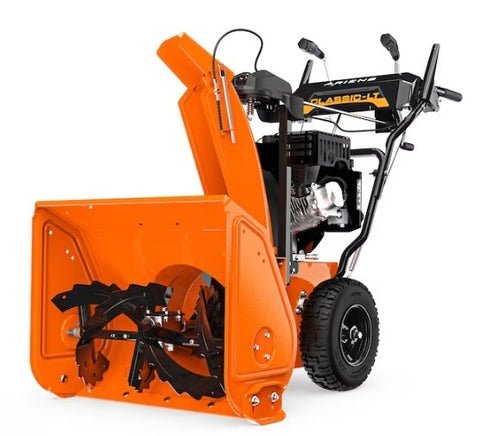

Ariens Classic 920033 24″ Two-Stage Electric Start Snow Blower
| TITLE | CLASSIC 24 |
||
|---|---|---|---|
| MODEL NUMBER | 920033 |
||
| POWER TRAIN | |||
| ENGINE | Ariens 179cc AX®
|
||
| STARTING SYSTEM | 120v / Electric |
||
| STEERING | Pin-Lock |
||
| DRIVE TYPE | Disc-O-matic |
||
| SPEEDS | 6 Forward/2 Reverse |
||
| TIRE SIZE | 13 In / 33cm |
||
| TIRE TYPE | Polar Trac |
||
| CLEARING SPECS | |||
| CLEARING WIDTH (IN/CM) | 24 In / 60.9cm |
||
| HOUSING HEIGHT | 20 In / 50.7cm |
||
| THROWING DISTANCE | 3 ft – 40 ft |
||
| CHUTE ROTATION | 2.5x Quick Turn |
||
| CHUTE TURNING RADIUS | 205 |
||
| DEFLECTOR CONTROL | In-Dash Lever |
||
| STAGE TYPE | Two Stage |
||
| AUGER DIAMETER | 11 In / 27.9cm |
||
| AUGER TYPE | Steel Serrated |
||
| IMPELLER PROFILE | Steel 3 Blade |
||
| IMPELLER DIAMETER | 12 In / 30.4cm |
||
| SKID SHOES | Steel Reversible |
||
| SCRAPER BAR | Steel Adjustable |
||
| GEAR CASE | Aluminum |
||
| DIMENSIONS | |||
| LENGTH | 54.4 In / 138.1cm |
||
| WIDTH | 26.4 In / 67cm |
||
| HEIGHT | 42.9 In / 108.9cm |
||
| WEIGHT (ASSEMBLED) | 173.3 lb / 78.6 kg |
||
| WARRANTIES | |||
| PRODUCT WARRANTY | 3 years residential use. 90 days commercial use |
||
| GEAR CASE WARRANTY | 3 Year Consumer, 90 Day Commercial |
||
| ACCESSORIES | |||
| FEATURES AT A GLANCE |
Remote Deflector Control: Standard Drift Cutters: Optional One Hand Interlock: Standard |
||
