ACOPOWER 8x100W 12V Poly Solar RV Kits, 60A MPPT Charge Controller (800W 60A)
ACOPOWER 8x100W 12V Poly Solar RV Kits, 60A MPPT Charge Controller (800W 60A)
Couldn't load pickup availability
ACOPOWER 8x100W 12V Poly Solar RV Kits, 60A MPPT Charge Controller (800W 60A)
ACOPOWER 8x100W 12V Poly Solar RV Kits, 60A MPPT Charge Controller (800W 60A)
Embark on your off-grid journey with the ACOPower 800W Polycrystalline Solar Panel RV Kit featuring a 60A MPPT Charge Controller. This cost-effective and user-friendly kit is designed for straightforward installation, equipped with eight 100W solar panels, a 60A charge controller, and essential wiring. It's an ideal solution to power your RV, boat, camper, and various outdoor appliances, providing a reliable energy source for remote structures. The kit also includes mounting accessories for added convenience. Experience the freedom of sustainable energy on your adventures.
ACOPower 100W 12V Polycrystalline Solar Panel
ACOPower 60A MPPT Solar Charge Controller
Maximize the potential of your solar panels with the ACOPower 60A MPPT Solar Charge Controller. This advanced controller allows you to safely and efficiently recharge 12, 24, 36, or 48V batteries, catering to a range of power needs. With a negative-ground configuration, the controller achieves an impressive tracking efficiency of up to 99.5% and a peak conversion efficiency of 98%. Compatible with various battery types, including flooded, sealed, gel, and li-ion batteries, it offers versatility in energy storage.
The user-friendly design of this plug-and-play controller simplifies the solar charging process. It automatically detects the solar panel voltage and employs bulk, boost, float, and equalization charging modes to optimize the battery charging cycle. Whether you are powering your RV, cabin, or off-grid system, the ACOPower 60A MPPT Solar Charge Controller ensures a seamless and effective solar energy utilization experience.
Features:
- Easy installation
- Height Efficiency
- MPPT Technology
- Green Solar System
- Common Negative grounding design
- Warranty
- Multiple packages
Specifications:
Acopower 100 Watts Poly Solar Panel
- Maximum Power at STC (Pmax): 100W
- Open-Circuit Voltage (Voc): 22V
- Maximum Operating Voltage (Vmp): 17.48V
- Short-Circuit Current (Isc): 6.21A
- Maximum Operating Current (Imp): 5.72A
- Operating Temperature: -40ºC to 85ºC
- Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
- Weight: 9.5kg / 20.6 lbs
Acopower 60 a Mppt Solar Charge Controller
- Nominal System Voltage: 12v/24v/36v/48v
- DC Auto Grounding: Common negative Design
- Rated Charge Current: 60A
- Battery Input Voltage Range: 8V～68V
- Max. PV Open Circuit Voltage: 150V/138V
- Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
- MPP Voltage Range: V(BAT)+2V～108V
- Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
- Working temperature: -25℃～+50℃
- Storage temperature: -20℃～+70℃
- RS485 Interface: RS485(RJ45)
- Enclosure: IP33
- Dimension: 261*216*119mm
- Terminals: 16mm2/6AWG
What's in the Box:
- 8 x ACOPower 100-Watt Polycrystalline Solar Panel, 12V
- 1 x ACOPower 60A MPPT Solar Charge Controller
- 8 x ACOPower Mounting Z Bracket

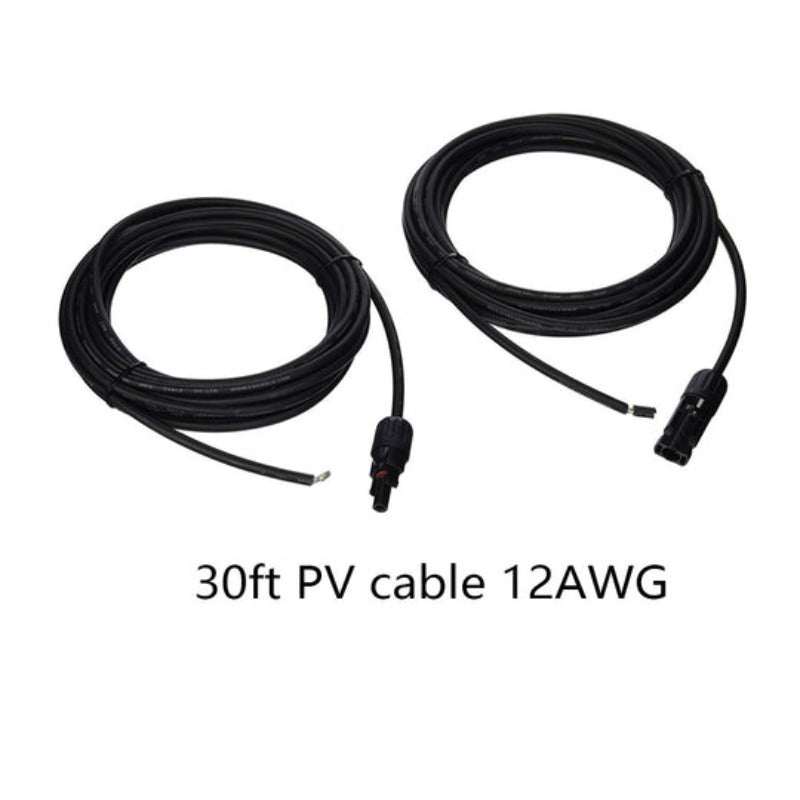

- 1 x ACOPower 12 AWG PV Cable (30')

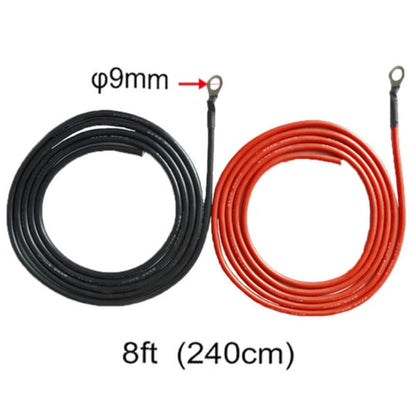

- 1 x ACOPower 8 AWG Tray Cable (8')
- 1 x ACOPower Waterproof Cable Entry Gland Box

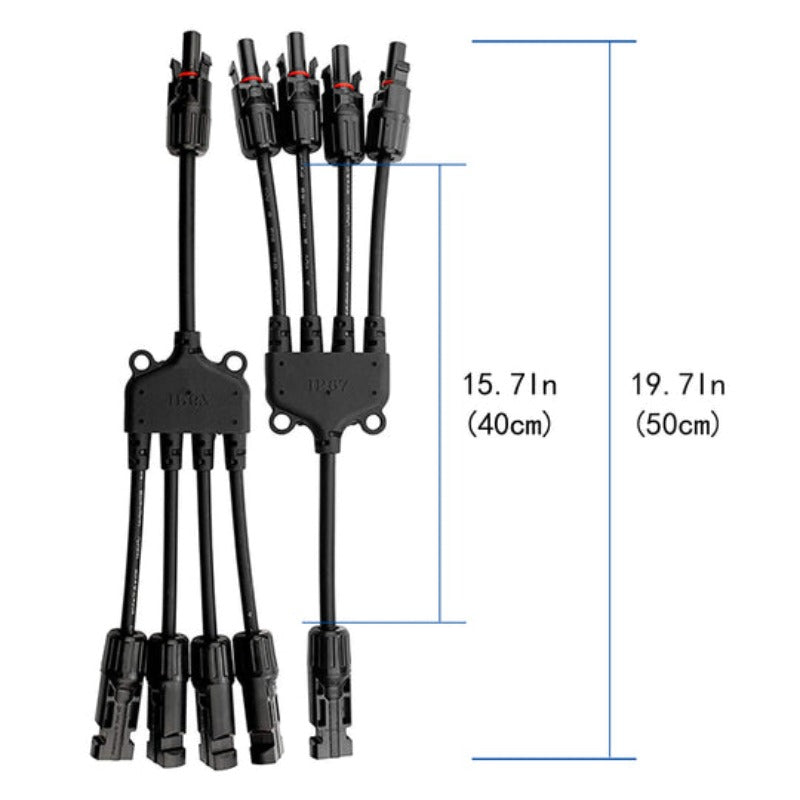

- 2 x ACOPower 1Y4 Branch Parallel Connector
- Limited 5-Year Manufacturer Warranty (Panels Only)
- Limited 1-Year Manufacturer Warranty (Controller & Accessories)
