Acopower 200w kit mono 200w 30A mppt

Acopower 200w kit 30A MPPT

Create lifetime memories while camping in the RV with the Acopower 200w Kit mono 200w 30A MPPT, the ultimate power solution for all your outdoor adventures and off-grid needs. With its superior efficiency and cutting-edge technology, this kit guarantees that you'll never be left in the dark again.

Equipped with a powerful 200-watt solar panel, this kit harnesses the natural energy of the sun to generate clean, sustainable power. Whether you're camping, hiking, or exploring remote areas, this kit ensures that you have access to electricity wherever you go. One of the standout features of this product is its state-of-the-art 30A MPPT charge controller. This innovative technology optimizes the charging process, allowing you to extract maximum efficiency from your solar panel, resulting in faster charging times and extended battery life.

Designed with convenience in mind, the Acopower 200w Kit mono is incredibly easy to set up and use. The plug-and-play design eliminates any complicated installation processes, saving you time and energy. Plus, its compact and lightweight build makes it effortlessly portable, so you can easily take it with you on your outdoor adventures. This kit is equipped with multiple built-in protection features like overload protection, short-circuit protection, and reverse polarity.

With the Acopower 200w Kit mono, you can power a wide range of electronic devices, from smartphones and tablets to cameras and mini-fridges. Invest in the Acopower 200w Kit mono 200w 30A MPPT and bring reliable and sustainable power to your outdoor adventures.

• Easy installation
• High efficiency
• 30A MPPT charge controller
• MPPT technology
• LCD screen shows voltage, solar panel status, battery state of charge, and DC load draw
• Compatible with lead acid, AGM, gel, and lithium batteries
• Sturdy and safe
• High transparent low-iron, tempered glass, rugged design to withstand high wind pressure, hail and snow load.
• 25-Year warranty transferable power output warranty on panels and 1-year warranty on rest of the kit components
• Green Solar System designed for RVs, cabins, homes, boats, back-up and remote power use

SPECIFICATIONS:

Acopower 100 Watts Poly Solar Panel

Maximum Power at STC (Pmax): 100W

Open-Circuit Voltage (Voc): 22V

Maximum Operating Voltage (Vmp): 17.48V

Short-Circuit Current (Isc): 6.21A

Maximum Operating Current (Imp): 5.72A

Operating Temperature: -40ºC to 85ºC

Dimension: 1020x670x35mm / 40.2x26.4x1.4 in

Weight: 9.5kg / 20.6 lbs

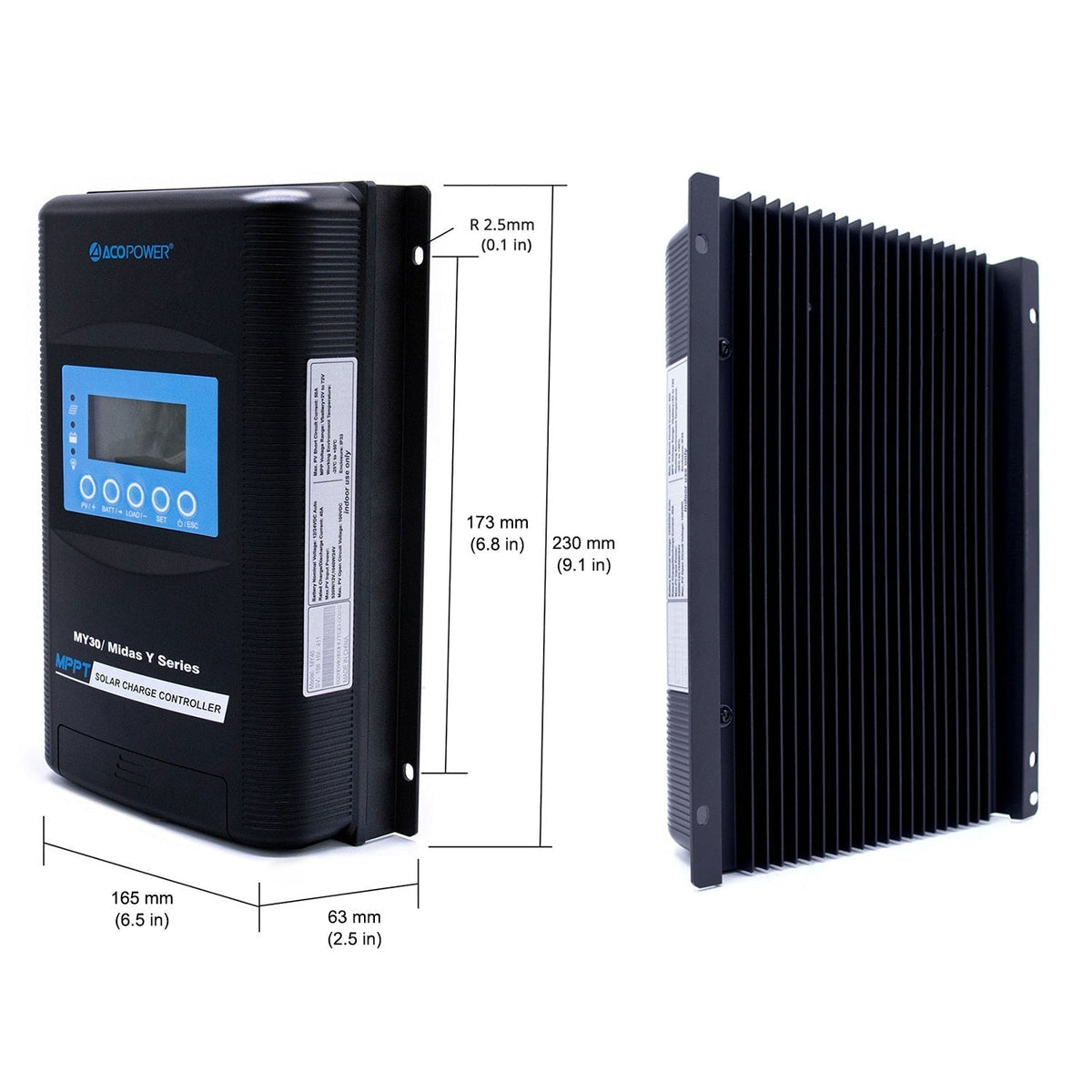

Acopower 30A MPPT Solar Charge Controller

Nominal System Voltage: 12/24V

DC Auto Rated Charge Current: 30A

Battery Input Voltage Range: 8V～32V

Max.PV Open Circuit Voltage: 100VDC

Max.PV Input Power: 12V/390W, 24V/780W

MPP Voltage Range: V(BAT+2V)～72V

Working Environment Temperature: -25℃～+50℃

Storage Temperature Range: -35℃～+80℃

Grounding: Common Negative

Communication: RS485

Power Terminals: 6AWG (16mm2)

Enclosure: IP30

WHAT’S IN THE BOX:

2 x 100W Solar Panel

1 x 30A PWM Charge Controller

1 x 30ft 12AWG PV Cable

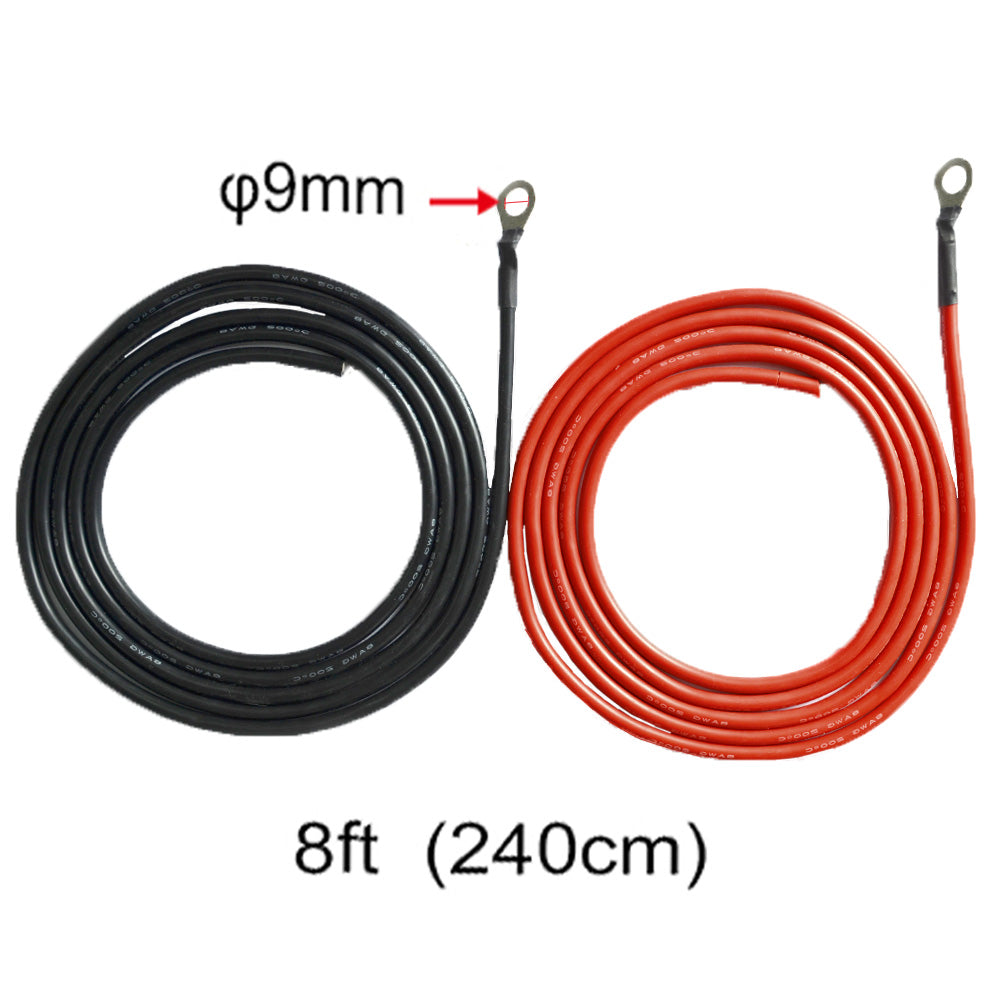

1 x 8FT 8AWG Tray Cable

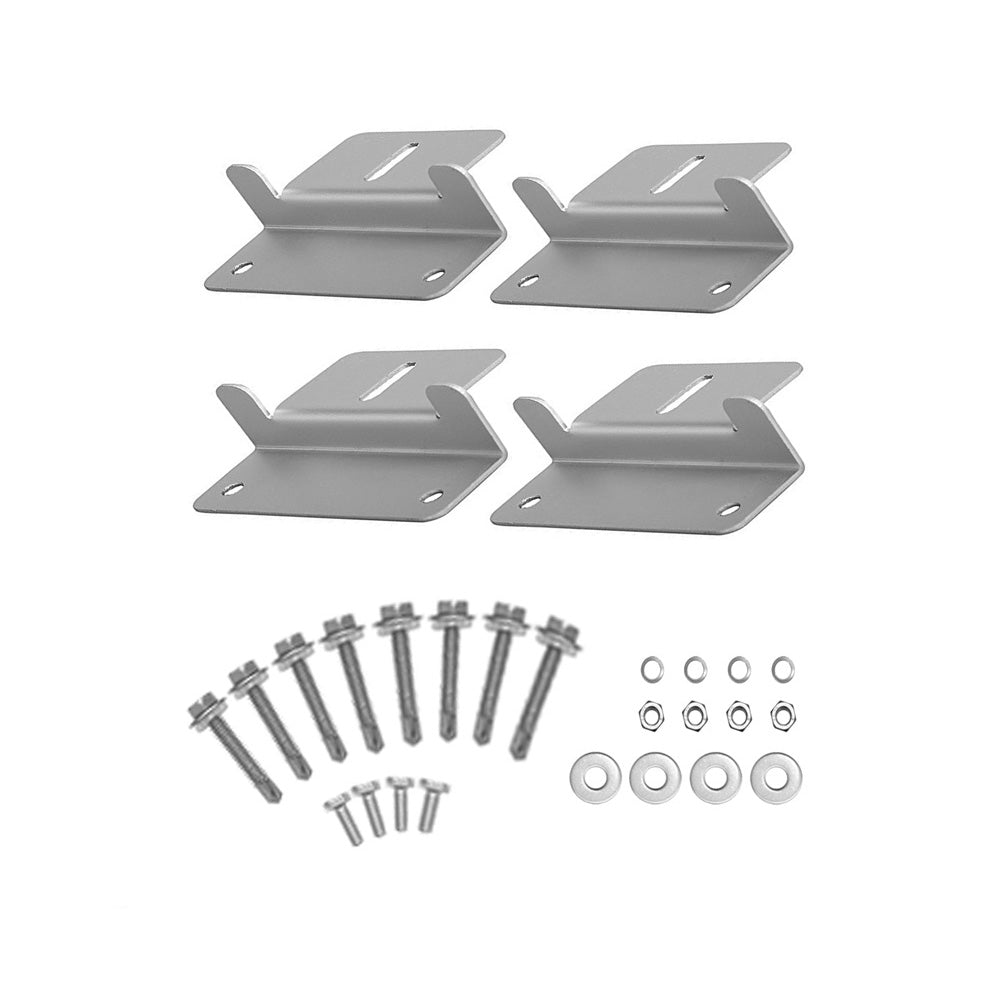

2 Sets x Mounting Z Brackets

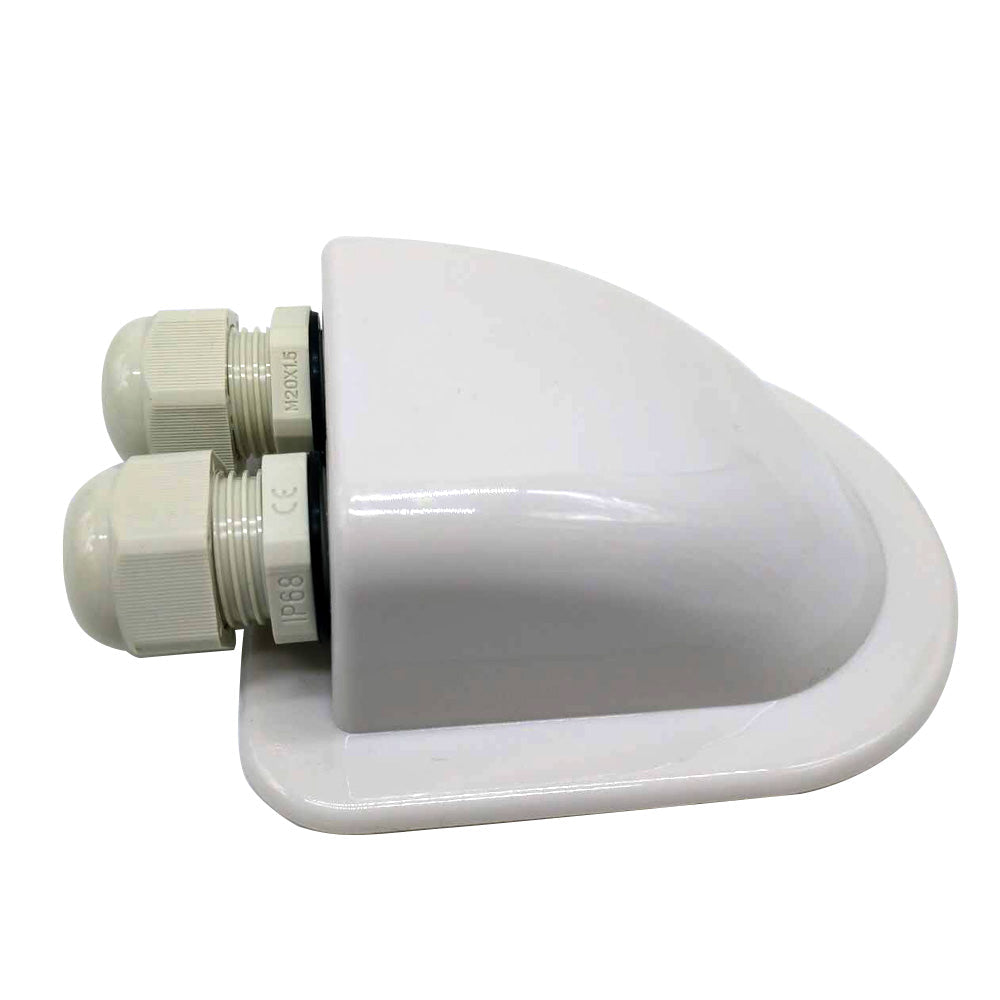

1 x Cable Entry Housing

1 x Acopower Waterproof Cable Entry Gland Box

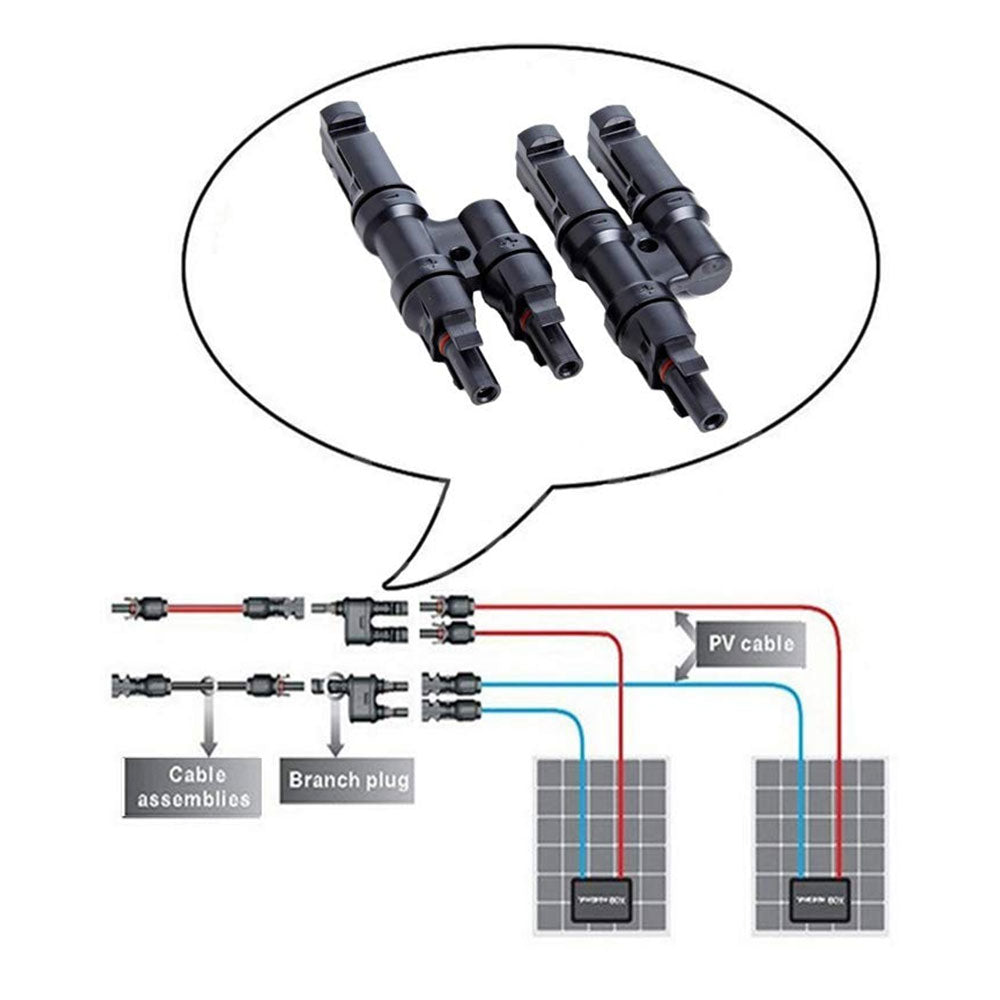

1 Pair x Y4 Branch Solar Panel Connectors
