Acopower 100W poly 400Ah/3kW (2x200Ah) Li400Ah P400w

Acopower 100W poly400Ah/3kW(2x200Ah) Li400Ah P400w

The 400W Solar RV kit is an ideal solution for establishing an off-grid 12-volt Lithium battery 12V Solar Panel system. The 3000-watt Pure Sine Wave Inverter delivers ample AC power (120VAV) to operate household appliances, and the battery bank ensures abundant energy for moderate use. Tailored for RVs, cabins, homes, boats, and for use as a backup or in remote locations.

Efficient MPPT Controller:

The 40A MPPT Charge controller boasts a peak conversion efficiency of 98% and a high Tracking efficiency of 99%. With a 4-stage battery charging process, it ensures rapid, efficient, and safe battery charging. Solar charging between 500W yields approximately 960Wh-3840Wh (Watt-hour) or 80Ah-320Ah (Ampere-Hour) of charge per day, contingent on sunlight availability.

High-Capacity Li-Battery Packs:

Equipped with 2560Wh-3840Wh of 2pcs 100Ah lithium batteries, these packs exhibit superior charging/discharging efficiency and endure over 3000 deep cycles, surpassing lead-acid batteries. The built-in BMS (battery management system) coupled with the 40A MPPT solar charge controller ensures double protection, preventing damage to the lithium battery.

Ready for Installation:

This all-inclusive kit has everything you need to DIY your solar charge system. The kit comprises 5pcs 100 Watt Polycrystalline Solar Panels, 2pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries with Built-in 100A BMS, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller (with LCD Display), a 60A fuse, a battery switch, a battery monitor, and all the necessary cables and solar mounting Z brackets.

Specifications:

12V 200Ah LiFePO4 Deep Cycle Lithium Battery

• Rated voltage 12.8V
• Charge voltage: 14.2 - 14.6V
• Battery Capacity:2560WH
• Depth of Discharge (DoD): 100%
• Standard charge current: 50A
• Max continuous charge current: 100A
• Max continuous discharge current: 200A
• dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
• Approx. Weight: 48.94lb

100W Poly Solar Panel

• Nominal for 12V battery charger
• Peak Power (Pmax):100W
• Peak Circuit Voltage(Voc):22V
• Max Power Voltage(Vmp):17.48V
• Short Circuit Current(Isc):6.21A
• Max Power Current(Imp):5.72A
• Weight:17.6lb
• Dimension:40.2*26.4*1.4 Inch
• Application Class: Class A

3000W Pure Sine Wave Inverter

• Continuous output 3000W
• Surge Power 6000W
• Wave Form: Pure Sine Wave
• Protection: Under voltage protection, Overvoltage protection, Overload
• Protection, Output short circuit protection
• Weight: 12.1lb
• Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

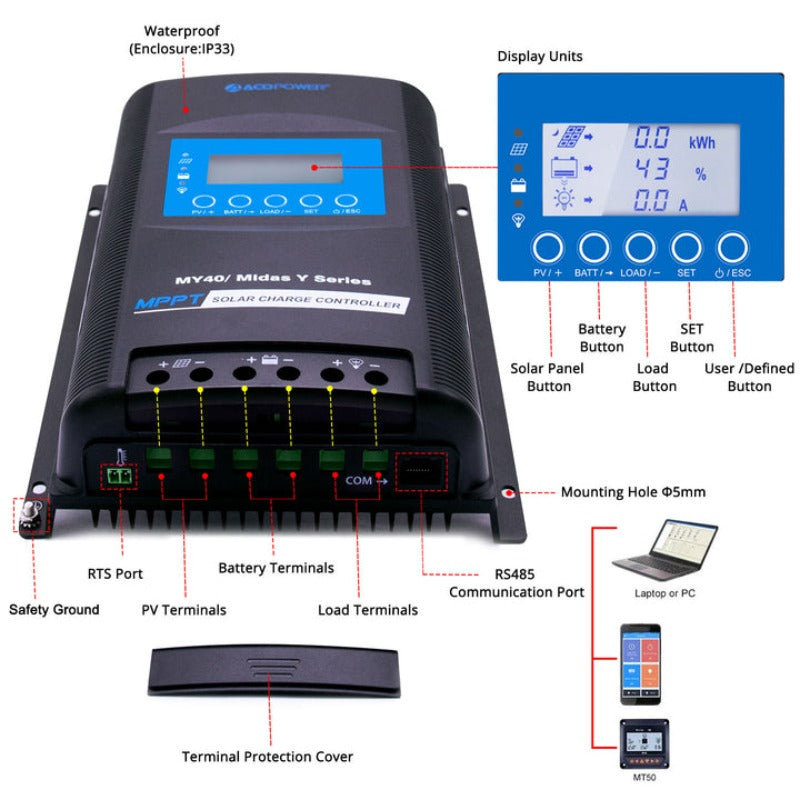

MPPT Solar Charge Controller 40A

• Rated charge current: 40A
• Battery voltage range: 8V~32V
• Max.PV open circuit voltage: 100VDC
• Max.PV input power: 12V/520W,24V/1040W
• Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

What's in the Box:

2 x Battery

4 x 100W Solar Panel

1 x 3K Inverter

1 x 50A Controller

1 x Monitor

1 x Switch

1 x 40A Fuse

4 x sets z Brackets

2 x Pairs Battery Cable
