Acopower 100w mono pack 4x100w

Acopower 100w mono pack 4x100w

The ACOPOWER 100W Monocrystalline Solar Panels offer high modules conversion efficiency, utilizing monocrystalline modules to ensure optimal performance. The advanced encapsulation material, featuring a multi-layered sheet, not only enhances cell performance but also extends the service life of the panels. The corrosion-resistant aluminum frame is designed for prolonged outdoor use, providing durability for decades. The panels are constructed with anti-reflective, high transparency, low iron-tempered glass, ensuring they remain efficient with no hot-spot heating.

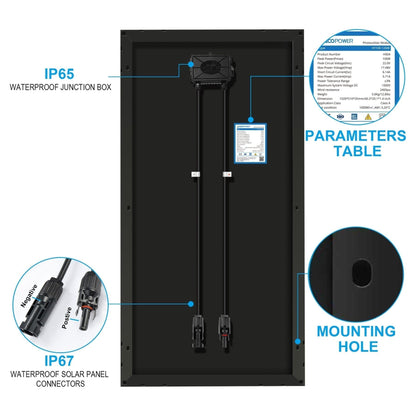

Installation is made easy with pre-drilled holes, and each solar panel includes a 12AWG cable with male/female quick connectors. This makes the panels a fundamental component for various off-grid solar systems, including 12V/24V/36V/48V setups in caravans, RVs, cars, boats, and greenhouses. The lightweight anodized aluminum frame enhances portability, while the reinforced safety features include anti-reflection coated glass, 3.2mm thick, and a waterproof IP-65 rated junction box, ensuring reliability and longevity in diverse environmental conditions.

Specifications:

• SKU: HY4x100-12MB
• ACOPower 100 Watt Monocrystalline Solar Panel
• IP65 Rated waterproof junction box
• Output Cables: 12 AWG (3.2ft long)
• Maximum Power at STC (Pmax): 100W
• Maximum Operating Voltage (Vmp): 17.48V
• Maximum Operating Current (Imp): 5.71A
• Open-Circuit Voltage (Voc): 22V
• Short-Circuit Current (Isc): 6.14A
• Operating Temperature: -40ºC to 85ºC
• Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
• Weight: 5.8 kg / 12.8 lbs

What's in the Box:

4 x Solar Panel
1 x Charge Controller
1 x Electrical Wiring
2 x Sets Mounting Equipment
Cable Entry Housing
Branch Connector
