Acopower 100w mono kit All Black 300w 30A

Acopower 100w mono kitAll Black 300w 30A

ACOPower RV Solar Kits are carefully arranged to meet your RV needs. Offers many benefits for homes, RVs, trailers, boats, sheds, and cabins, Incorporating a small off-grid power system can give you greater travel independence and potential power cost savings.

Taking a trip in your RV can create lifetime memories. Don't let traditional gas-powered generators or power hookups slow you down. ACOPower 300Watt 30A Mono Solar RV Kit silently recharges your batteries so you can enjoy the great outdoors without the extra noise. Solar panels also allow you to run limited low-watt electrical equipment without a power hookup.

• Connect three ACOPOWER 100-Watt monocrystalline solar panels effortlessly, using branch connectors for parallel connections or series connections without the need for extra connectors.

• The MPPT Solar Charge Controller offers user-adjustable settings, featuring an LCD screen that displays vital information such as voltage, solar panel status, battery state of charge, and DC load draw. Check the photo gallery for a visual representation of all LCD screen readouts. Compatible with lead acid, AGM, gel, and lithium batteries.

• Tailored for various applications, the design suits RVs, cabins, homes, boats, and serves as a reliable backup and remote power source. The two solar panels can be wired in parallel for efficient 12V battery charging or in series for 24V battery charging.

• Adhering to a common positive grounding design (contact us if your system follows a common negative grounding design), ensuring compatibility with diverse setups and configurations.

• Benefit from the long-term reliability of the kit with a 25-year transferable power output warranty on panels, accompanied by a 1-year warranty on the rest of the kit components. Invest in a solar solution that stands the test of time.

Features:

• Easy Installation
• Hight Efficiency
• Sturdy
• MPPT Technology
• Safe Operation
• Reliable Performance
• Green Solar System

Specifications:

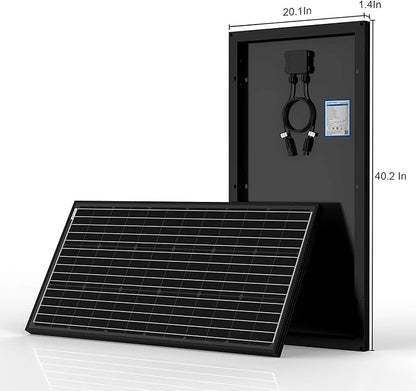

Acopwoer 100 Watts All Black Mono Solar Panel

• Maximum Power at STC (Pmax): 100W
• Open-Circuit Voltage (Voc): 22V
• Maximum Operating Voltage (Vmp): 17.48V
• Short-Circuit Current (Isc): 6.14A
• Maximum Operating Current (Imp): 5.71A
• Operating Temperature: -40ºC to 85ºC
• Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
• Weight: 5.8 kg / 12.78 lbs

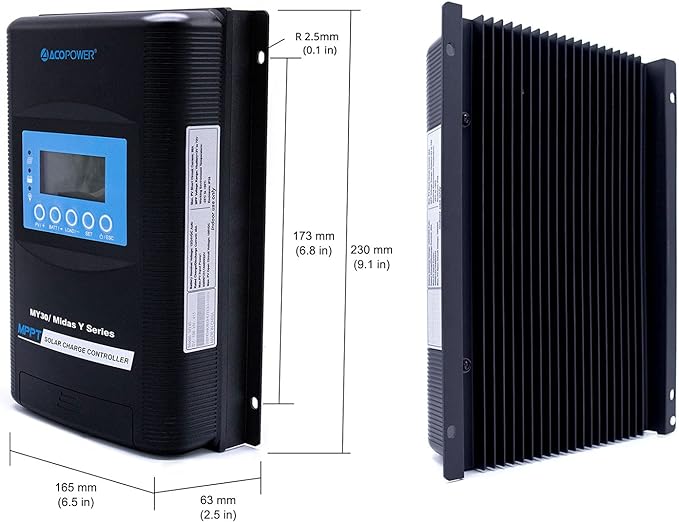

Acopower 30 A MPPT Solar Charge Controller

• Nominal system voltage: 12/24VDC Auto
• Rated charge current: 30A
• Battery input voltage range: 8V～32V
• Max.PV open circuit voltage: 100VDC
• Max.PV input power: 12V/390W, 24V/780W
• MPP voltage range: V(BAT+2V)～72V
• Working environment temperature: -25℃～+50℃
• Storage temperature range: -35℃～+80℃
• Grounding: Common negative
• Communication: RS485
• Power Terminals: 6AWG(16mm2)
• Enclosure: IP30
• Dimensions: 228x164x55mm
• Weight: 1.2kg

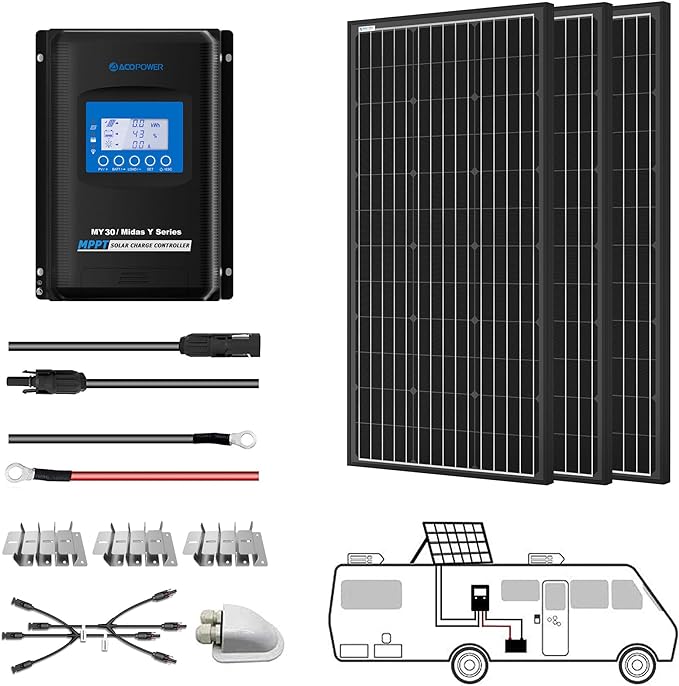

What's in the Box:

• 3 x Mono Solar Panel
• 1 x 30A MPPT Charge Controller
• 3  x Sets Mounting Z Bracket
• 1 x 30ft 12AWG PV Cable
• 1 x 8FT 8AWG Tray Cable
• 1 x Cable Entry Housing

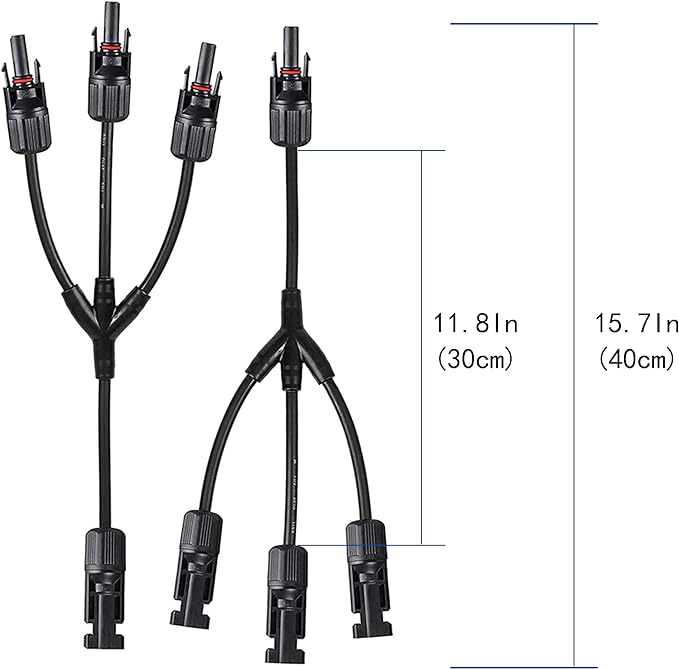

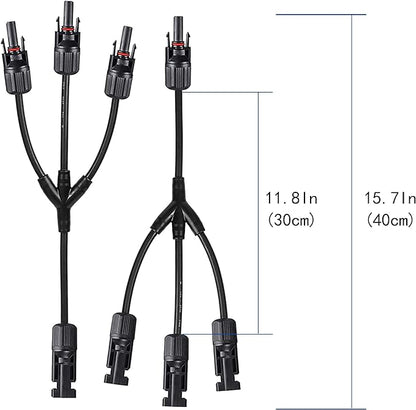

• 1  x Pair 1Y3 Branch Connector
