Acopower 100W mono 200Ah/1.5kW (2x100Ah) Li200Ah M300w

Acopower 100W mono200Ah/1.5kW(2x100Ah) Li200Ah M300w

Embark on a journey towards sustainable energy with our Lithium Battery Mono Solar Power Complete System. Designed for off-grid 12-volt applications, this kit is equipped with a 1500-watt Pure Sine Wave Inverter, offering abundant AC power to run household appliances. With a focus on versatility, it's perfect for RVs, cabins, homes, and boats, and serves as a reliable backup for remote power needs. The advanced MPPT Controller ensures peak efficiency, and the high-capacity Li-Battery Packs bring cutting-edge lithium technology to your fingertips. Installation is a breeze with everything you need making it the ideal choice for a seamless solar power experience.

Wide Application

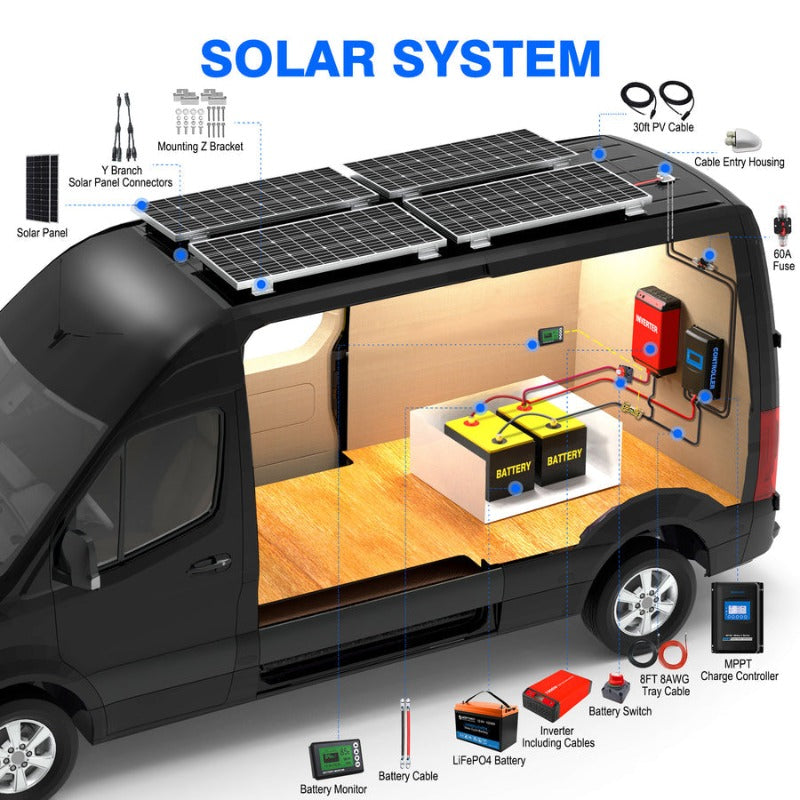

This comprehensive solar power kit is the ideal solution for establishing a reliable off-grid 12V lithium battery solar panel system. The included 1500-watt Pure Sine Wave Inverter delivers ample AC power at 120VAV, catering to the energy needs of your household appliances. Designed with versatility in mind, this kit is suitable for various settings, including RVs, cabins, homes, and boats, and serves as a dependable backup for remote power requirements.

MPPT Controller

At the core of this system is the highly efficient MPPT (Maximum Power Point Tracking) Controller. Boasting a peak conversion efficiency of 98% and a remarkable tracking efficiency of 99%, it ensures optimal performance. The 4-stage battery charging process guarantees swift, efficient, and safe battery charging. With solar charging capabilities ranging from 200W to 800W, you can expect a daily charge of approximately 960-3840 Watt Hours (Wh) or 80-320 Amp Hours (AH), contingent on sunlight availability.

High Capacity Li-Battery Packs

Experience the next level of power with 3840Wh generated by three 100Ah lithium batteries. These batteries exhibit superior charging/discharging efficiency and can endure more than 3000 deep cycles, outperforming traditional lead-acid batteries. The built-in Battery Management System (BMS) coupled with the 30A-60A MPPT solar charge controller provides dual protection, preventing damage to the lithium battery and ensuring longevity.

Installation Ready

Empower your solar journey with a kit that's ready for installation. This all-inclusive package includes all the essential tools, making it a perfect DIY solution for your solar charge system. Begin your solar energy utilization effortlessly and efficiently with this user-friendly kit.

Specifications:

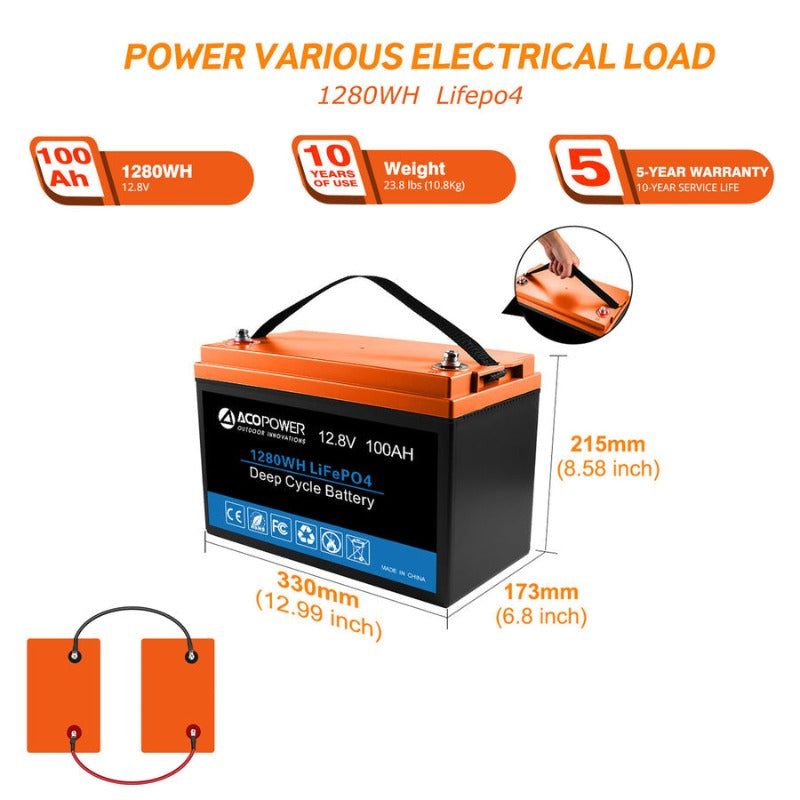

12V 100Ah LiFePO4 Deep Cycle Lithium Battery

• Rated voltage: 12.8V
• Charge voltage: 14.2 - 14.6V
• Battery Capacity:1280WH
• Depth of Discharge (DoD): 100%
• Standard charge current: 20A
• Max continuous charge current: 50A
• Max continuous discharge current: 100A
• dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
• Approx. Weight: 23.8lb

12V 200Ah LiFePO4 Deep Cycle Lithium Battery

• Rated voltage: 12.8V
• Charge voltage: 14.2 - 14.6V
• Battery Capacity:2560WH
• Depth of Discharge (DoD): 100%
• Standard charge current: 50A
• Max continuous charge current: 100A
• Max continuous discharge current: 200A
• dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
• Approx. Weight: 48.94lb

100W Mono Solar Panel

• Nominal for 12V battery charger
• Peak Power (Pmax):100W
• Peak Circuit Voltage(Voc):22.5V
• Max Power Voltage(Vmp):17.48V
• Short Circuit Current(Isc):6.14A
• Max Power Current(Imp):5.71A
• Weight:12.8lb
• Dimension:40.2*20.1*1.4 Inch
• Application Class: Class A

1500W Pure Sine Wave Inverter

• Continuous output 1500W
• Surge Power 3000W
• Wave Form: Pure Sine Wave
• Protection: Under voltage protection, Overvoltage protection, Overload
• Protection, Output short circuit protection
• Weight: 7.79lb
• Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

3000W Pure Sine Wave Inverter

• Continuous output 3000W
• Surge Power 6000W
• Wave Form: Pure Sine Wave
• Protection: Under voltage protection, Overvoltage protection, Overload
• Protection, Output short circuit protection
• Weight: 12.1lb
• Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

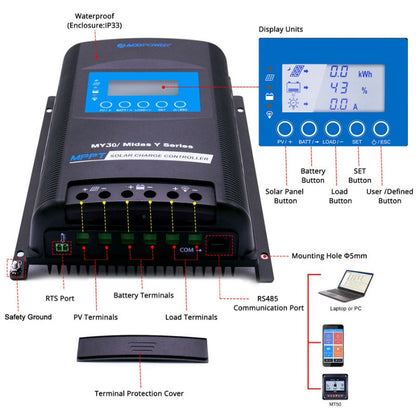

MPPT Solar Charge Controller 30A

• Rated charge current: 30A
• Battery voltage range: 8V~32V
• Max.PV open circuit voltage: 100VDC
• Max.PV input power: 12V/390W,24V/780W
• Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

MPPT Solar Charge Controller 40A

• Rated charge current: 40A
• Battery voltage range: 8V~32V
• Max.PV open circuit voltage: 100VDC
• Max.PV input power: 12V/520W,24V/1040W
• Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

MPPT Solar Charge Controller 50A

• Rated charge current: 50A
• Battery voltage range: 8V~68V
• Max.PV open circuit voltage: 150V
• Max.PV input power: 12V/625W,24V/1250W,36V/1875W,48V/2500W
• Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

MPPT Solar Charge Controller 60

• Rated charge current: 60A
• Battery voltage range: 8V~68V
• Max.PV open circuit voltage: 150V
• Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W

What's in the Box:

2 x Battery 100h

3 x Solar Panel 100W

1 x Inverter 1.5kw

1 x Charge Controller 30A

1 x Monitor

1 x Switch

1 x Fuse 60A

3 x Sets Z Brackets

2 x Battery Cable
