Acopower 100W mono 200Ah/1.5kW (2x100Ah) Li200Ah M200w

Acopower 100W mono200Ah/1.5kW(2x100Ah) Li200Ah M200w

Introducing our Lithium Battery Mono Solar Power Complete System – the ultimate solution for harnessing the untapped potential of off-grid solar energy. This all-inclusive kit, featuring a powerful 1500 Watt Pure Sine Wave Inverter, advanced MPPT Controller, and high-capacity Li-Battery Packs, is designed for versatility. Ideal for RVs, cabins, homes, boats, and as a reliable backup for remote power needs. With easy installation and everything you need in one kit, embark on a sustainable energy journey with confidence and convenience.

Wide Application

Unlock the potential of off-grid solar power with our comprehensive kit designed for a 12-volt Lithium battery 12V Solar Panel system. The inclusion of a powerful 1500 Watt Pure Sine Wave Inverter ensures an ample supply of 120VAC, catering to the energy needs of household appliances. Tailored for diverse settings, from RVs and cabins to homes, boats, and serving as a reliable backup for remote power requirements.

MPPT Controller

Experience unparalleled efficiency with our MPPT Controller, boasting a peak conversion efficiency of 98% and an impressive Tracking efficiency of 99%. The 4-stage battery charging process ensures a swift, efficient, and secure battery charging experience. Solar charging, ranging from 200W to 800W, delivers approximately 960 to 3840 Watt Hours (Wh) or 80 to 320 Amp Hours (AH) of charge per day, contingent on sunlight availability.

High Capacity Li-Battery Packs

Redefine energy storage with our Li-Battery Packs, offering a substantial 3840Wh from 3pcs 100Ah lithium batteries. These batteries outshine traditional lead-acid counterparts with higher charging/discharging efficiency and a remarkable lifespan of more than 3000 deep cycles. The built-in Battery Management System (BMS) ensures longevity while the 30A-60A MPPT solar charge controller provides dual protection.

Installation Ready

Empowering you to take charge, our kit is your one-stop solution for a DIY solar charge system. Every essential tool is included, ensuring a hassle-free installation process and making solar power accessible to all.

Specifications:

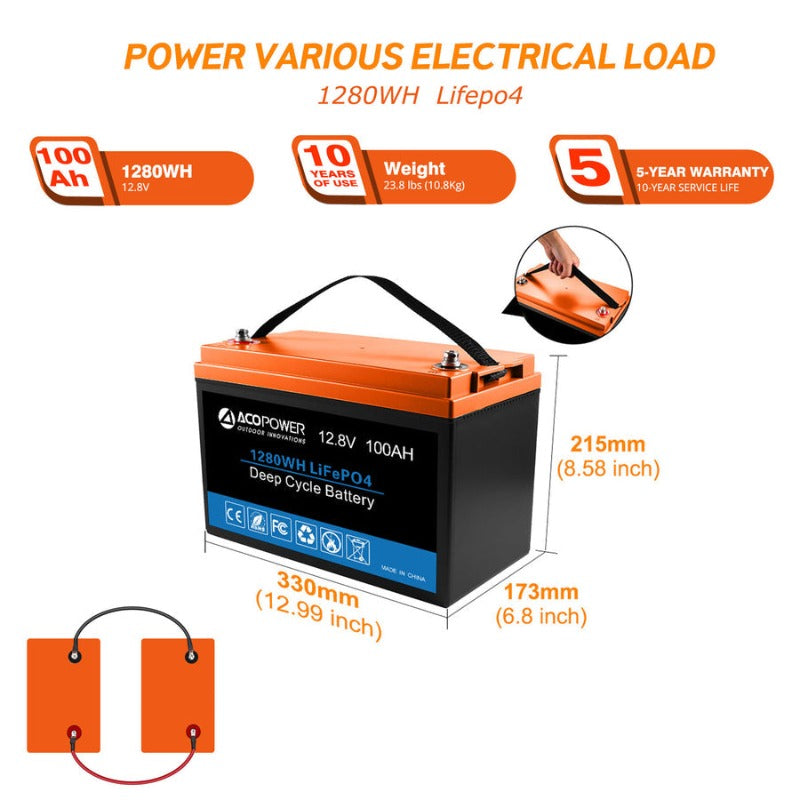

12V 100Ah LiFePO4 Deep Cycle Lithium Battery

• Rated voltage: 12.8V
• Charge voltage: 14.2 - 14.6V
• Battery Capacity:1280WH
• Depth of Discharge (DoD): 100%
• Standard charge current: 20A
• Max continuous charge current: 50A
• Max continuous discharge current: 100A
• dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
• Approx. Weight: 23.8lb

12V 200Ah LiFePO4 Deep Cycle Lithium Battery

• Rated voltage: 12.8V
• Charge voltage: 14.2 - 14.6V
• Battery Capacity:2560WH
• Depth of Discharge (DoD): 100%
• Standard charge current: 50A
• Max continuous charge current: 100A
• Max continuous discharge current: 200A
• dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
• Approx. Weight: 48.94lb

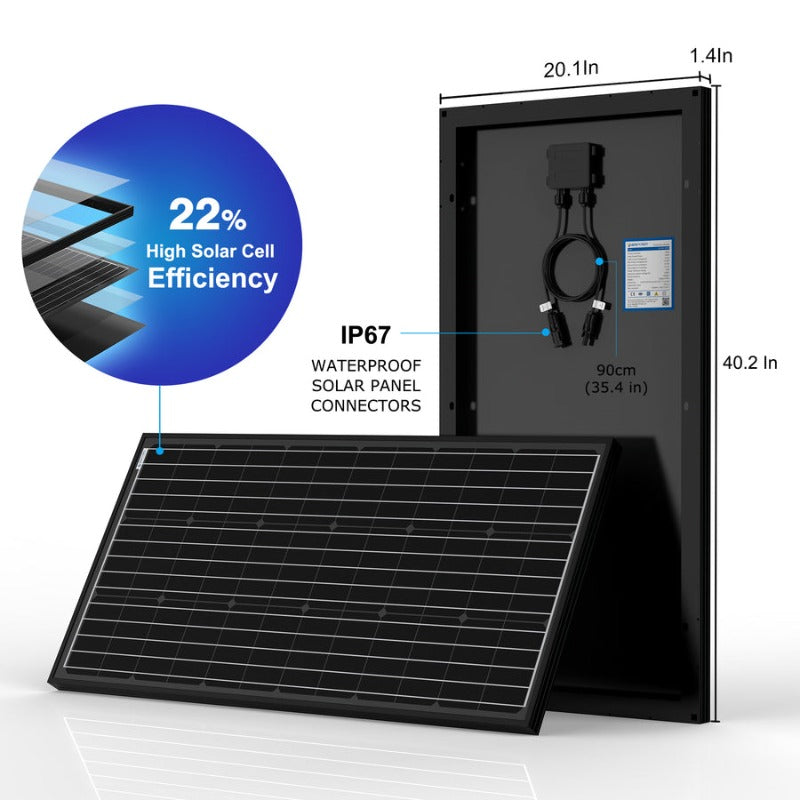

100W Mono Solar Panel

• Nominal for 12V battery charger
• Peak Power (Pmax):100W
• Peak Circuit Voltage(Voc):22.5V
• Max Power Voltage(Vmp):17.48V
• Short Circuit Current(Isc):6.14A
• Max Power Current(Imp):5.71A
• Weight:12.8lb
• Dimension:40.2*20.1*1.4 Inch
• Application Class: Class A

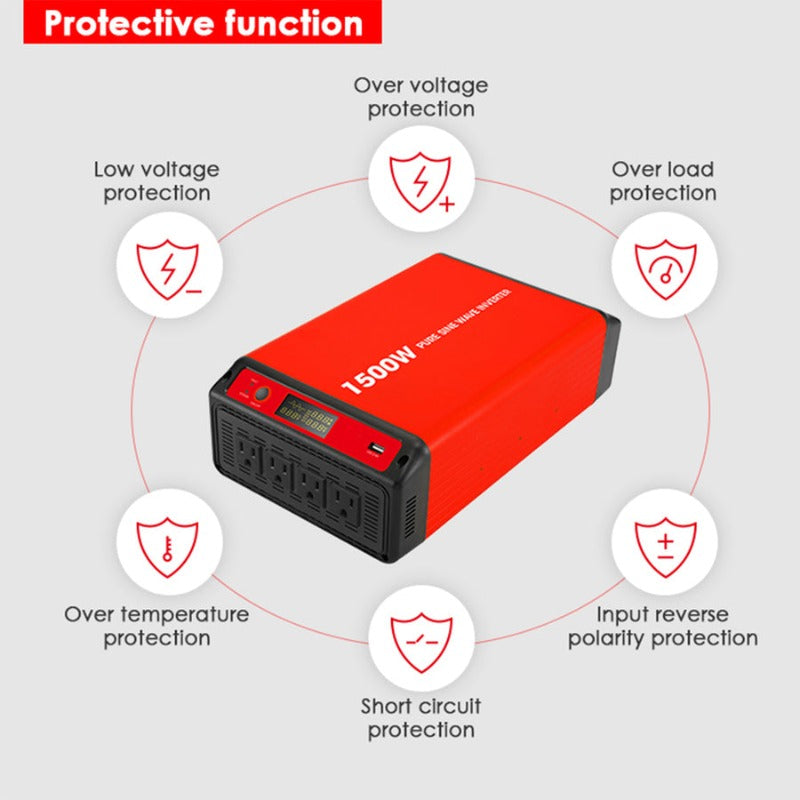

1500W Pure Sine Wave Inverter

• Continuous output 1500W
• Surge Power 3000W
• Wave Form: Pure Sine Wave
• Protection: Under voltage protection, Overvoltage protection, Overload
• Protection, Output short circuit protection
• Weight: 7.79lb
• Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

3000W Pure Sine Wave Inverter

• Continuous output 3000W
• Surge Power 6000W
• Wave Form: Pure Sine Wave
• Protection: Under voltage protection, Overvoltage protection, Overload
• Protection, Output short circuit protection
• Weight: 12.1lb
• Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

MPPT Solar Charge Controller 30A

• Rated charge current: 30A
• Battery voltage range: 8V~32V
• Max.PV open circuit voltage: 100VDC
• Max.PV input power: 12V/390W,24V/780W
• Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

MPPT Solar Charge Controller 40A

• Rated charge current: 40A
• Battery voltage range: 8V~32V
• Max.PV open circuit voltage: 100VDC
• Max.PV input power: 12V/520W,24V/1040W
• Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.

MPPT Solar Charge Controller 50A

• Rated charge current: 50A
• Battery voltage range: 8V~68V
• Max.PV open circuit voltage: 150V
• Max.PV input power: 12V/625W,24V/1250W,36V/1875W,48V/2500W
• Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

MPPT Solar Charge Controller 60

• Rated charge current: 60A
• Battery voltage range: 8V~68V
• Max.PV open circuit voltage: 150V
• Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W

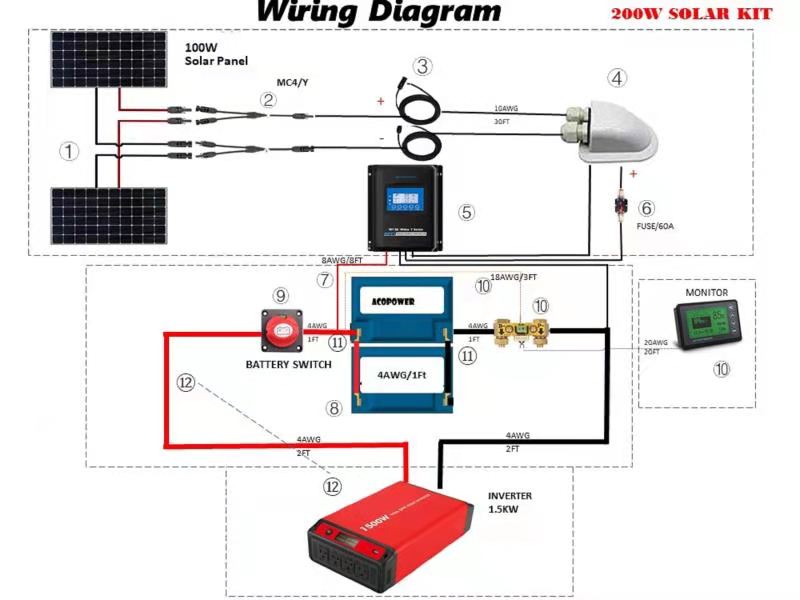

What's in the Box:

2 x Battery 100h

2 x Solar Panel 100W

1 x Inverter 1.5kw

1 x Charge Controller 30A

1 x Monitor

1 x Switch

1 x Fuse 60A

3 x Sets Z Brackets

2 x Battery Cable
