3000W 12V Pro Pure Sine Wave Inverter with EcoSleep Mode

3000W 12V Pro Pure Sine Wave Inverter with EcoSleep Mode

Designed for semi-trucks, boats, RVs, and off-grid systems, the Renogy 3000W 12V Pro Inverter delivers dependable pure sine wave power and industry-leading safety. From startup surge handling to low standby consumption, it ensures efficient, stable operation even in demanding conditions.

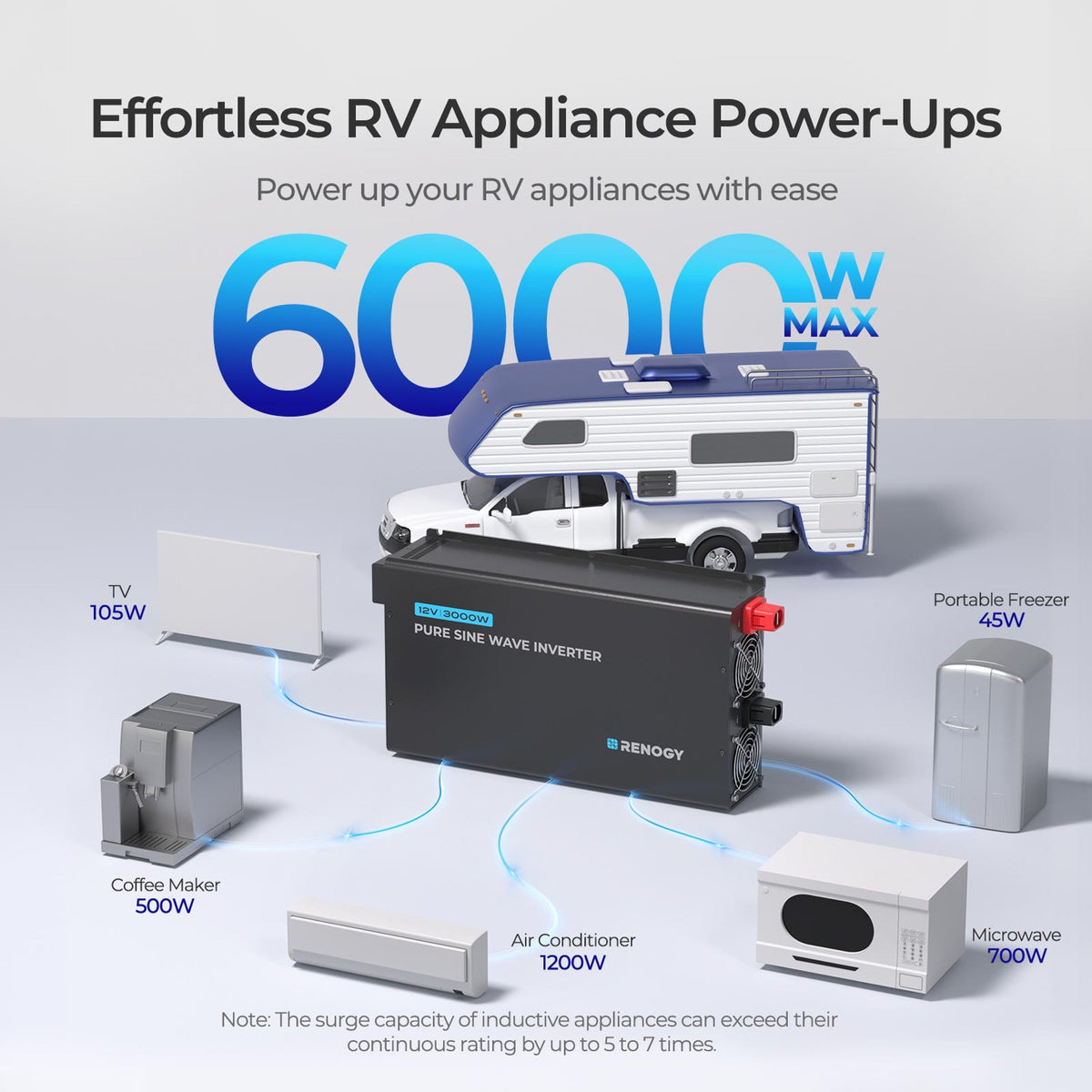

6000W Peak Surge for Inductive Loads

With a peak capacity of 6000W, this inverter easily supports power-hungry inductive loads like refrigerators and air conditioners. It minimizes startup failure by managing surge currents, helping protect your gear and ensure uninterrupted power delivery.

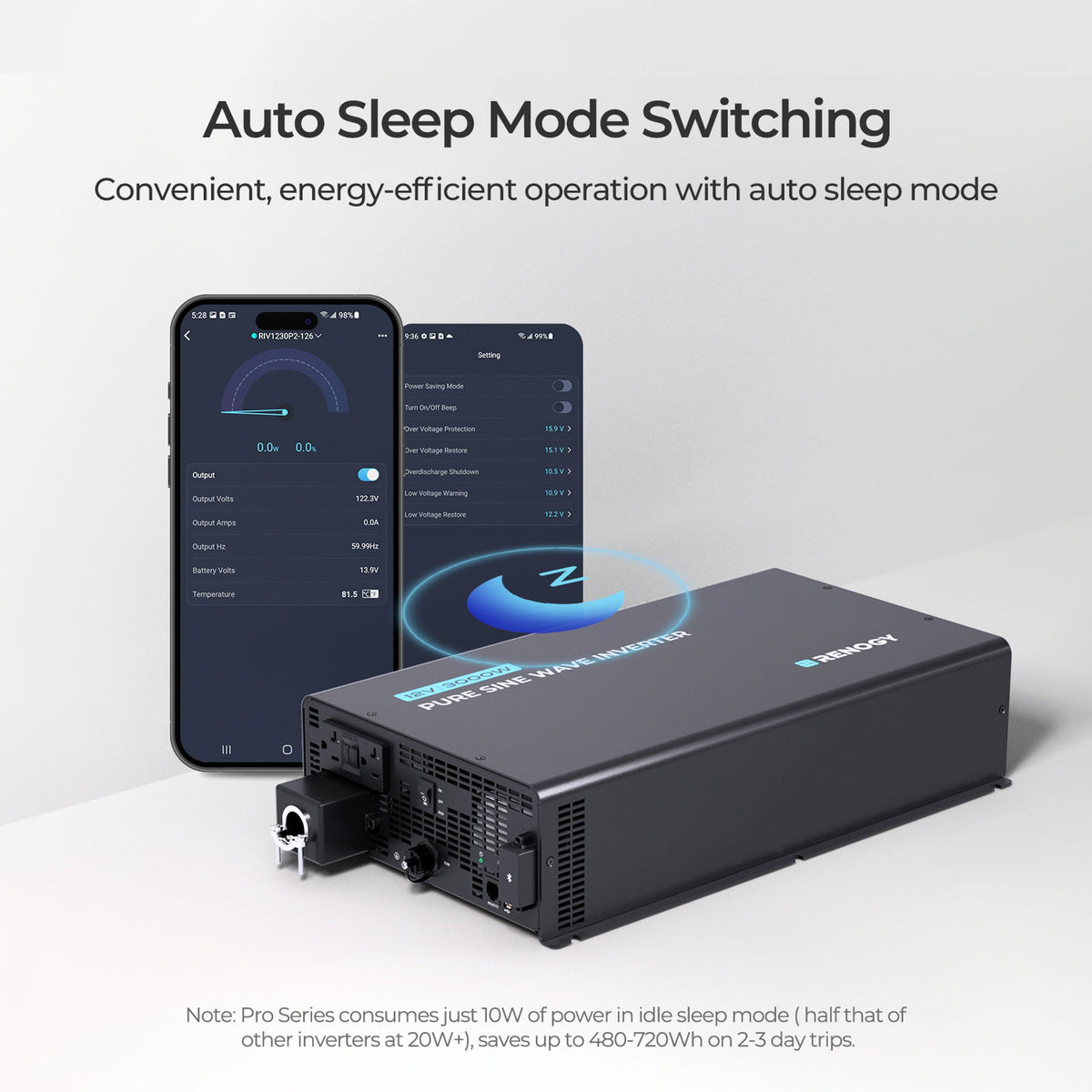

EcoSleep Mode – Ultra-Low Power Draw

Consume less while staying powered. In EcoSleep mode, the inverter draws just 10W, reducing wasted energy when appliances aren’t in use. This efficiency can save up to 720Wh over a 3-day off-grid trip—making a big difference in remote applications.

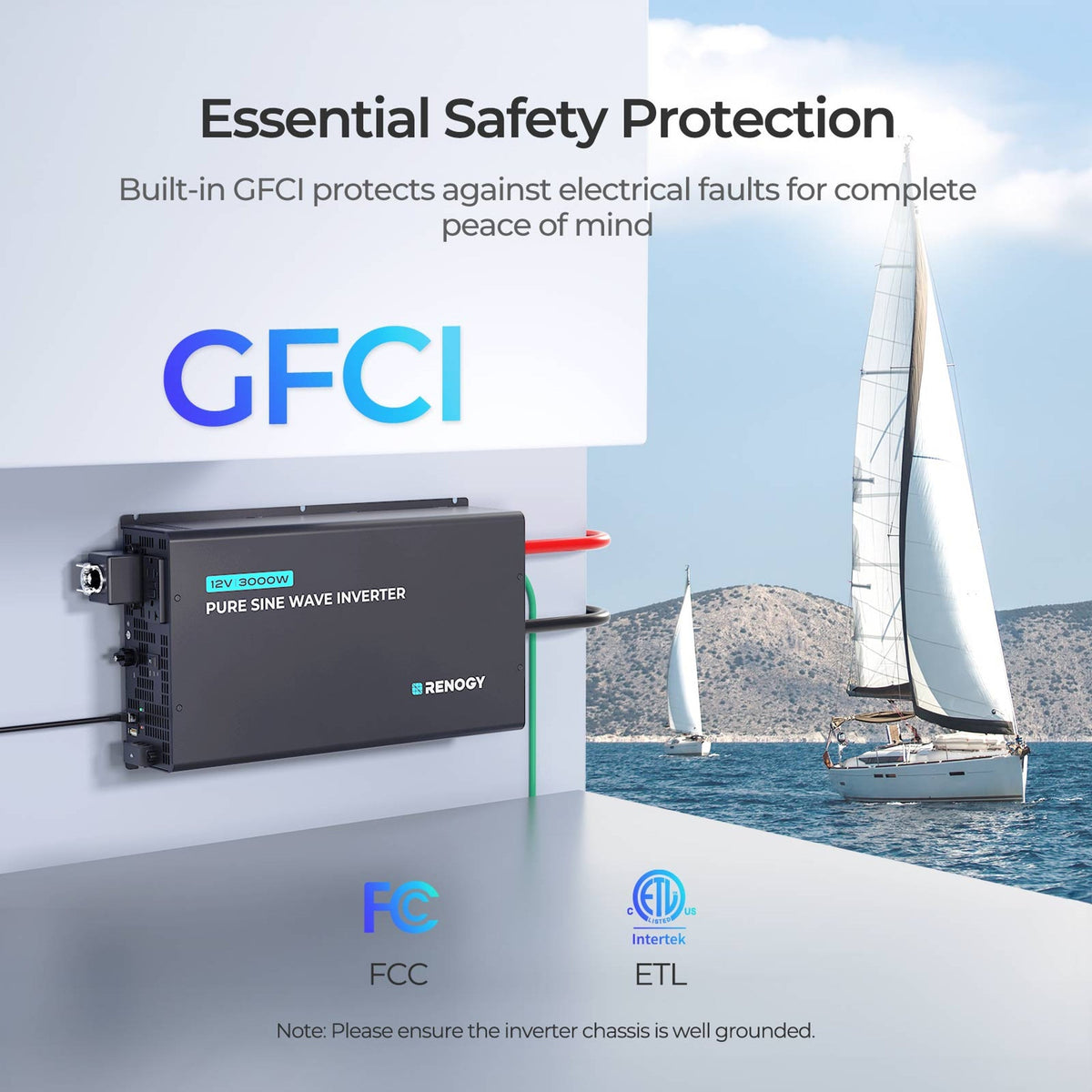

Safe Marine Use with GFCI Protection

Ideal for boat trips, this inverter includes GFCI protection for its AC outlets, helping prevent electrical shock in damp or wet environments and providing peace of mind when you're off shore.

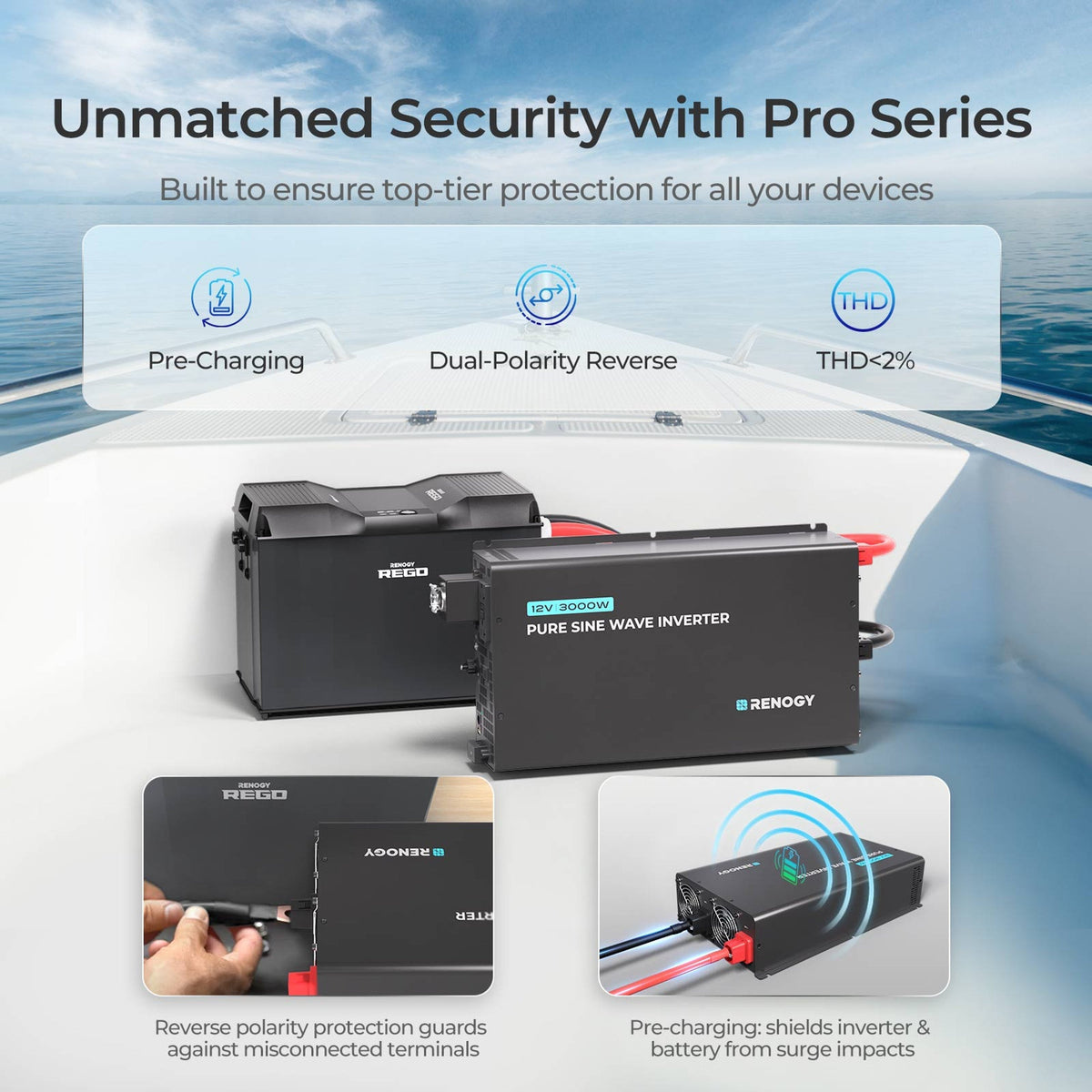

Smooth Pre-Charging Technology

Avoid damaging current spikes at startup. The built-in pre-charging system ensures a smooth power-up process, protecting both your battery and connected devices from peak surges when you switch the inverter on.

Remote Monitoring & Real-Time Control

Use the included wired remote to track your system's status instantly. With RS485/RV-C communication and app support, you can monitor power output, check for faults, and control functions without needing to access the inverter directly.

Specifications

Inverter Specs

• Rated Output: 3000W (continuous)

• Surge Power: 6000W (100ms)

• AC Output: 2 AC Sockets + 1 DIY AC Terminal

• Output Voltage/Frequency: 120V ±3%, 60Hz ±0.3Hz

• Output Waveform: Pure Sine Wave

• Input Voltage: 11–15.5VDC

• Efficiency (Peak/Full Load): ≥90% / ≥87%

• THD: <3% (resistive loads)

• No Load Power (Sleep): <10W

• Overload Capacity: Up to 200% for 100ms

General Specs

• Battery Types Supported: GEL, AGM, SLA, FLD, LI

• Operating Temp: -4°F to 104°F (-20°C to 40°C full load)

• Storage Temp: -40°F to 158°F (-40°C to 70°C)

• Humidity Tolerance: 0%–95%

• Noise Level: <55dB

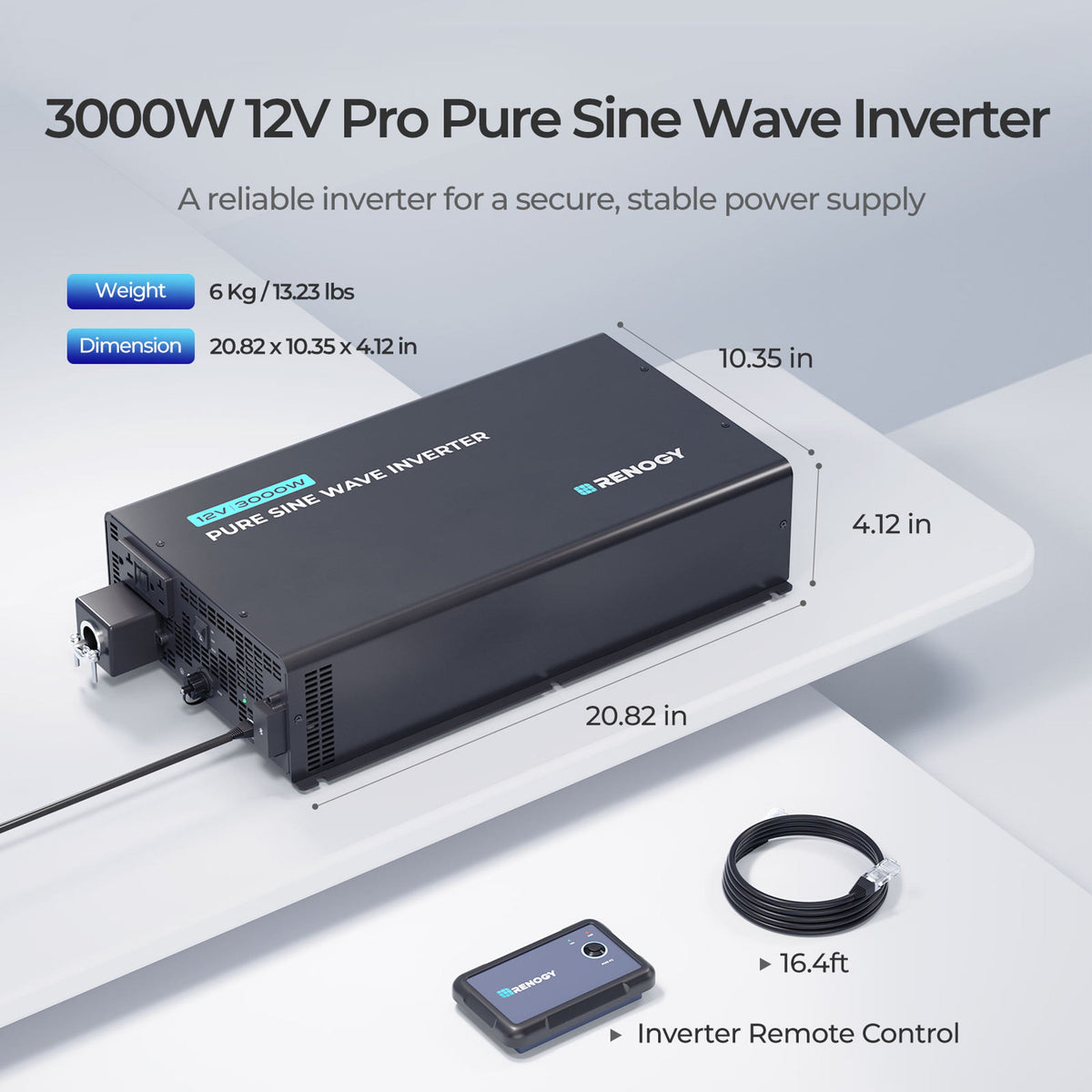

• Dimensions: 20.82 x 10.35 x 4.12 in

• Weight: 13.2 lbs (6 kg)

Remote Control

• Size: 2.8 x 4.3 x 1.3 in (70 x 110 x 31.8 mm)

• Wire Length: Approx. 16.4 ft

Certifications

• EMC: FCC Part 15 Class B

• Safety: UL458 (Marine Supplement), CSA-C22.2 No 107.1

• Warranty

• Coverage: 3 Years

What’s in the Box

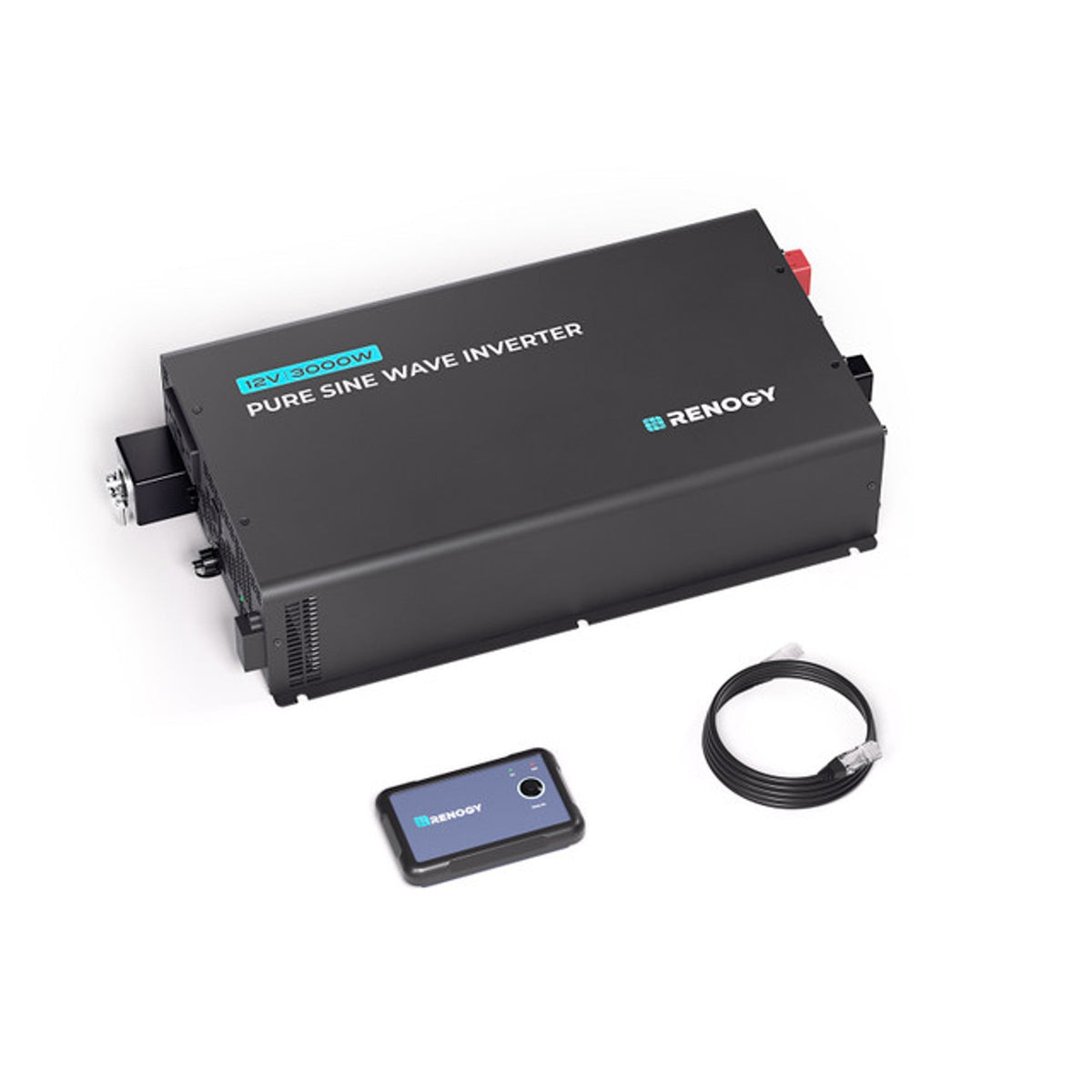

1 x 3000W Pure Sine Wave Inverter

1 x Inverter Wired Remote Control

1 x User Manual
